SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1�������� 0006 1�������� �������� 0007 1�������� �������� 0008 1��� 0009 1������������ 0010 1�������� & �����-��� ���� 0011 1�������� & ��������� ���� 0012 1�-� 0013 1���,�-�,��� & ����-�� 0014 1���,���,��� & �������

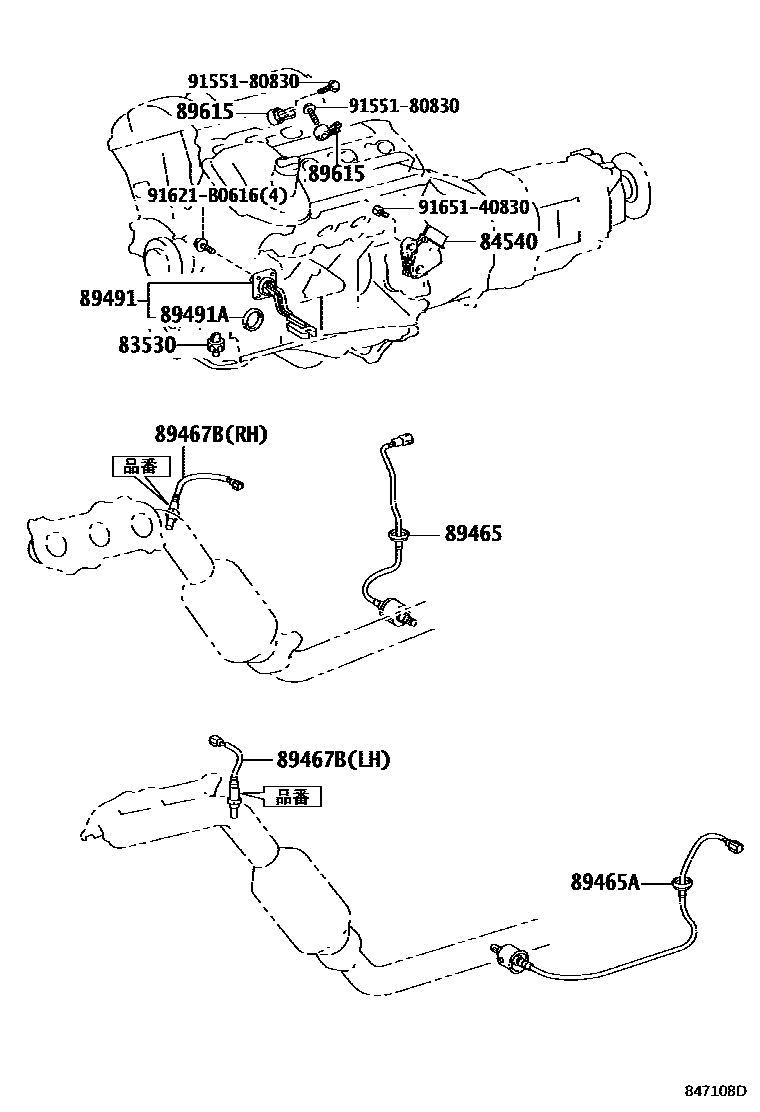

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURS190201104

main83530-28020iGRS19#,UZS190200508-201104

main83530-60020iURS190201104

84540SWITCH ASSY, NEUTRAL START

main84540-30320iUZS190200508-200709

main84540-71010iGRS19#200508-201112

89465SENSOR, OXYGEN

main89465-30730iGRS19#200508-201112

main89465-30790iURS190200709-201112

main89465-30800iURS190200709-201112

main89465-50120iUZS190200508-200709

main89465-50130iUZS190200508-200709

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRS191200508-201112

main89465-30740iUZS190200508-200709

main89465-30840iGRS196200508-201112

89467BSENSOR, AIR FUEL RATIO

main89467-30010iGRS191200508-200806

main89467-30010iGRS196200508-200806

main89467-30010iGRS191200709-200802

main89467-30020iGRS196200508-200806

main89467-30030iGRS196200806-201112

main89467-30030iURS190200709-201112

main89467-30030iGRS196200806-201112

main89467-30040iURS190200709-201112

main89467-30040iGRS196200806-201112

main89467-30040iGRS196200806-201112

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS191200508-201108

main89491-30061iGRS191201109-201112

main89491-30070iGRS196200508-201108

main89491-30071iGRS196201109-201112

main89491-50030iUZS190200508-200709

main89491-50041iURS190200709-201112

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS19#200508-200709

main90430-27001iUZS190200508-200709

89615SENSOR, KNOCK CONTROL

main89615-20090iGRS19#,UZS190200508-200709

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

11 parts on this diagram · 14 diagrams in section
