WIRING & CLAMP

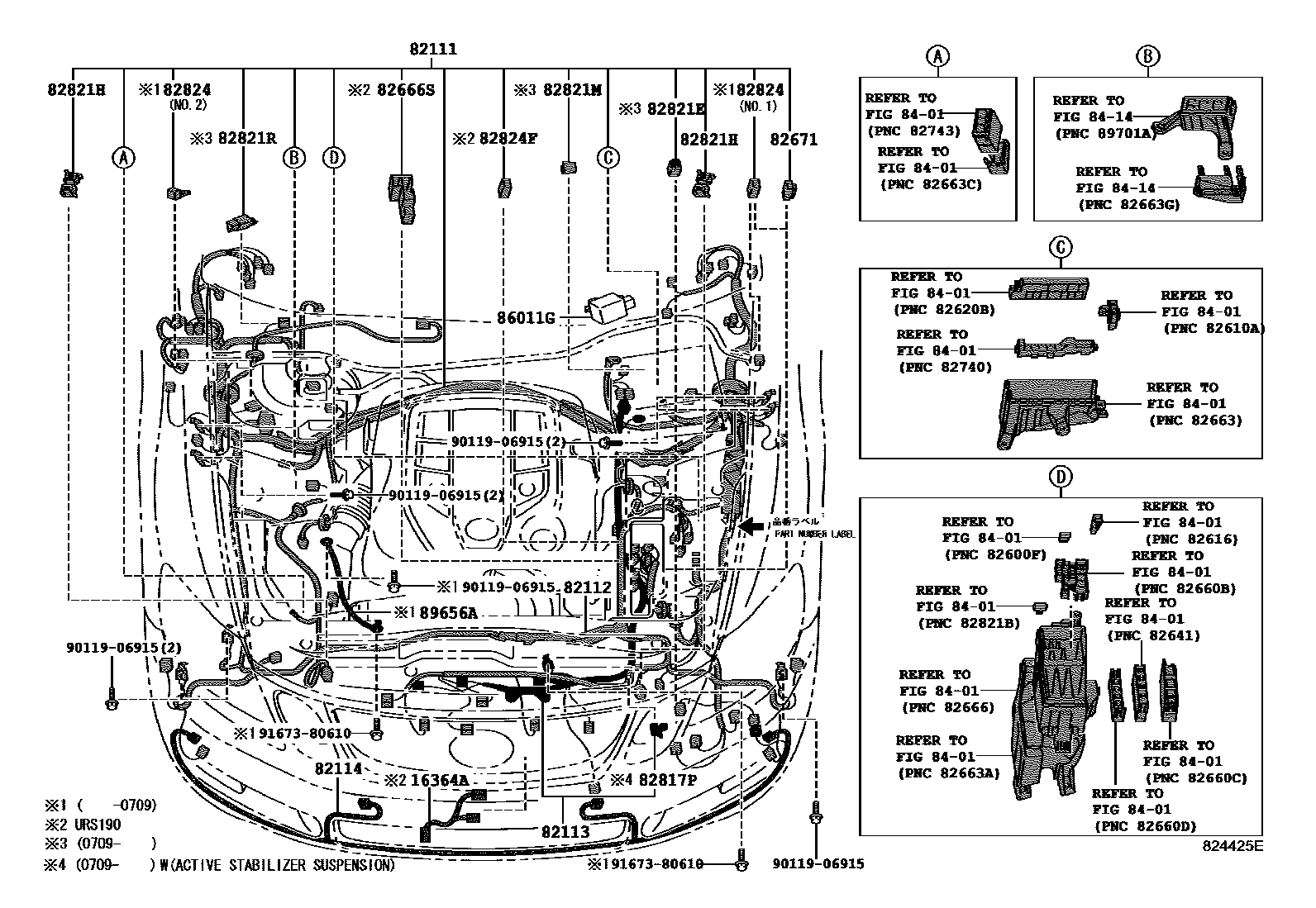

Parts diagram

16364AWIRE, COOLING FAN

main16364-38010i200709

82111WIRE, ENGINE ROOM MAIN

main82111-30G20i200508-200607

main82111-30G21i200607-200709

main82111-30G30i200508-200607

main82111-30G31i200607-200709

main82111-30G32i200709-200809

main82111-30G33i200809-201005

main82111-30G34i201006

main82111-30G40i200508-200607

main82111-30G41i200607-200709

main82111-30G50i200508-200607

main82111-30G51i200607-200709

main82111-30G52i200709-200809

main82111-30G53i200809-201005

main82111-30G54i201006

main82111-30G80i200508-200607

main82111-30G90i200508-200607

main82111-30K20i200508-200607

main82111-30K21i200607-200709

main82111-30K30i200508-200607

main82111-30K31i200607-200709

main82111-30K32i200709-200809

main82111-30K33i200809-200909

main82111-30K34i200909-201005

main82111-30K35i201006

main82111-30S30i200607-200709

main82111-30S40i200607-200709

main82111-30S41i200709-200809

main82111-30S42i200809-201005

main82111-30S43i201006

main82111-30W11i201007-201109

main82111-30W41i201007-201109

82112WIRE, ENGINE ROOM, NO.2

main82112-30850i200508-200607

main82112-30860i200607-200709

main82112-30861i200709-200809

main82112-30862i200809

main82112-30A80i200709-200809

main82112-30A81i200809-201006

main82112-30A82i201007

82113WIRE, ENGINE ROOM, NO.3

main82113-30450i200508-200709

main82113-30460i200508-200709

main82113-30590i200709

main82113-30620i200709

main82113-30630i200709

82114WIRE, ENGINE ROOM, NO.4

main82114-30070

main82114-30071

82666SHOLDER, CONNECTOR NO.13

main82666-30A70i200709

82671BLOCK, JUNCTION

main82671-30350i200508-200709

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30L40i200709

82817PPROTECTOR, WIRING HARNESS, NO.14

82821ECOVER, CONNECTOR

main82821-35040i200709

82821HCOVER, CONNECTOR

main82821-30650i200508-200709

82821MCOVER, CONNECTOR

main82821-30600i200709-201112

82821RCOVER, CONNECTOR

main82821-22120i200709

82824CONNECTOR, WIRING HARNESS

main82824-28180i200508-200709

main82824-48020i200508-200709

82824FCONNECTOR, WIRING HARNESS

main82824-30170i200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

86011GCONDENSER

main86516-30470i200607-200709

89656AWIRE, POWER STEERING EARTH

main89656-30010i200508-200709

main89656-30020i200508-200709

9011906915

main90119-06915

9167380610

main91673-80610

21 parts on this diagram · 14 diagrams in section
