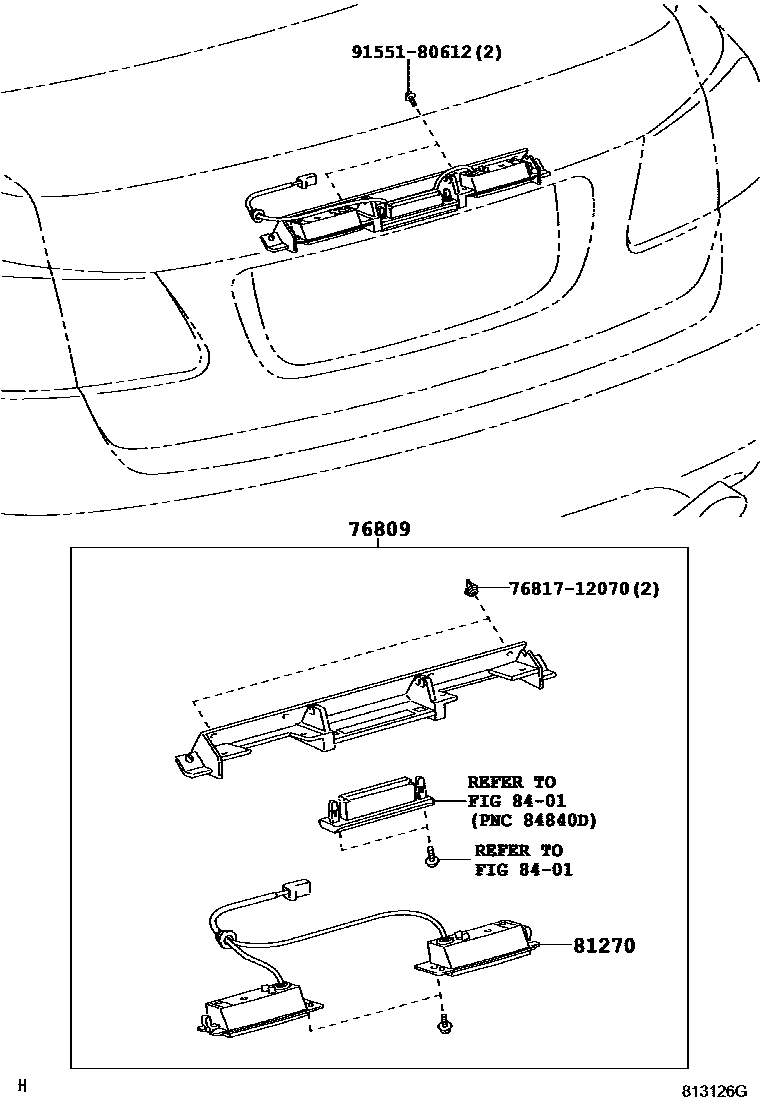

REAR LICENSE PLATE LAMP

76809RETAINER SUB-ASSY, BACK DOOR GARNISH

main76809-30010iGRS19#,UZS190200508-200611

main76809-30011iGRS19#,UZS190200612-200709

81270LAMP ASSY, LICENSE PLATE

main81270-30260iGRS19#,UZS190200508-200611

main81270-30261iGRS19#,UZS190200612-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7681712070CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12070

9155180612

main91551-80612

5 parts on this diagram · 1 diagram in section
