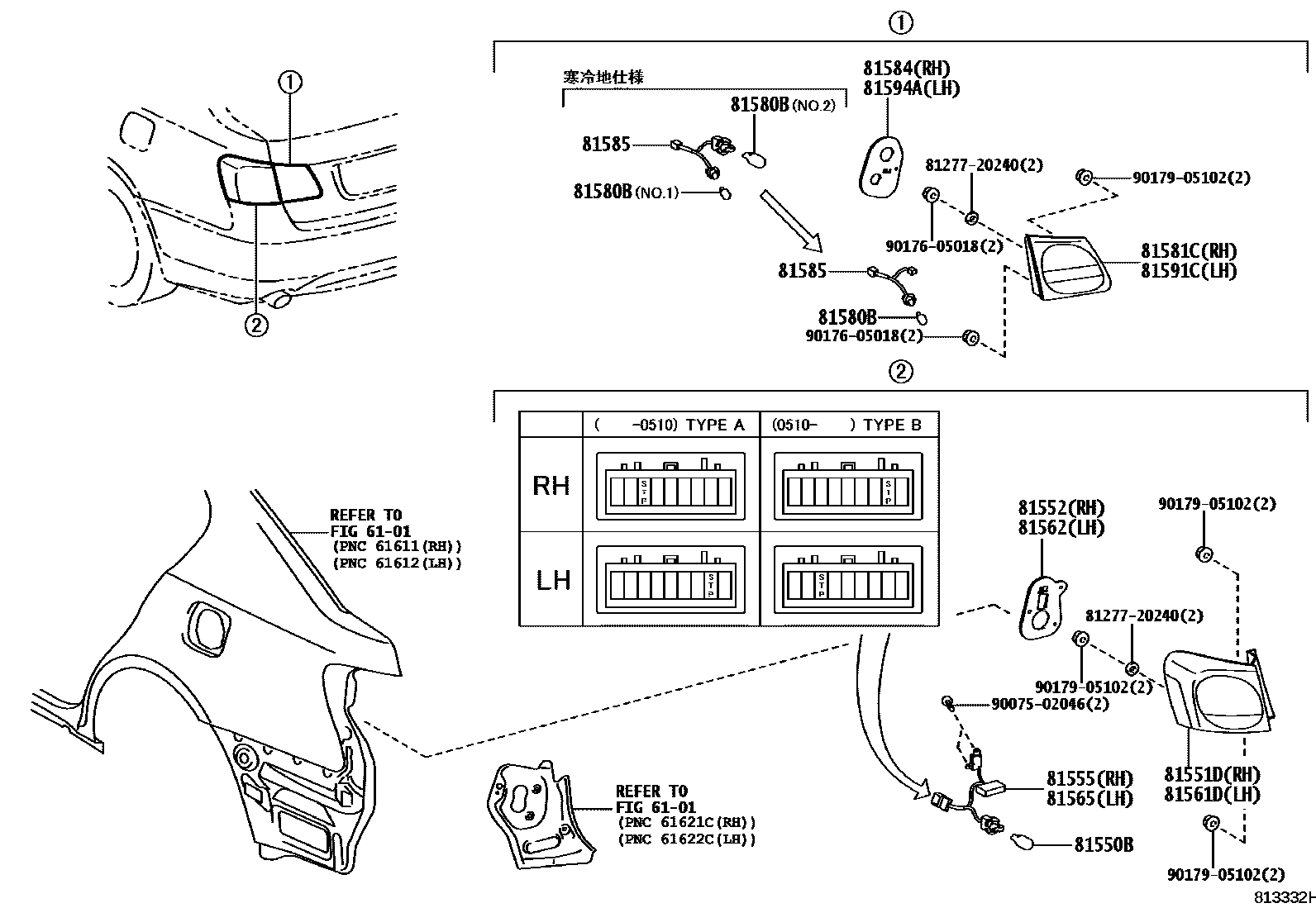

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15021×2iGRS19#,UZS190200508-200709

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30A40iGRS19#,UZS190200508-200611

main81551-30A41iGRS19#,URS190200709

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-30A40iGRS19#,UZS190200508-200709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30A40iGRS19#,UZS190200508-200510

main81555-30A41iGRS19#,URS190200709

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30A30iGRS19#,UZS190200508-200611

main81561-30A31iGRS19#,UZS190200612-200709

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-30A40iGRS19#,UZS190200508-200709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30A30iGRS19#,UZS190200508-200510

main81565-30A31iGRS19#,UZS190200510-200709

81580BBULB (FOR REAR LAMP)

main90981-11059×2iGRS19#,URS190200709-201112

main90981-13043×2supersedes 90981-11059iGRS19#,UZS190200508-200709

81581CLENS AND BODY, REAR LAMP, RH

main81581-30330supersedes 81581-30280iGRS19#,UZS190200508-200611

main81581-30331supersedes 81581-30280iGRS19#,UZS190200612-200709

81584PACKING, REAR LAMP RH

main81584-30280iGRS19#,UZS190200508-200709

81585SOCKET & WIRE, REAR LAMP

main81585-30330×2supersedes 81585-30280iGRS19#,UZS190200508-200709

81591CLENS, REAR LAMP, LH

main81591-30270supersedes 81591-30220iGRS19#,UZS190200508-200611

main81591-30271supersedes 81591-30220iGRS19#,UZS190200612-200709

81594AGASKET, REAR LAMP LH

main81594-30220iGRS19#,UZS190200508-200709

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9007502046

main90075-02046

9017605018

main90176-05018

9017905102

main90179-05102

18 parts on this diagram · 1 diagram in section
