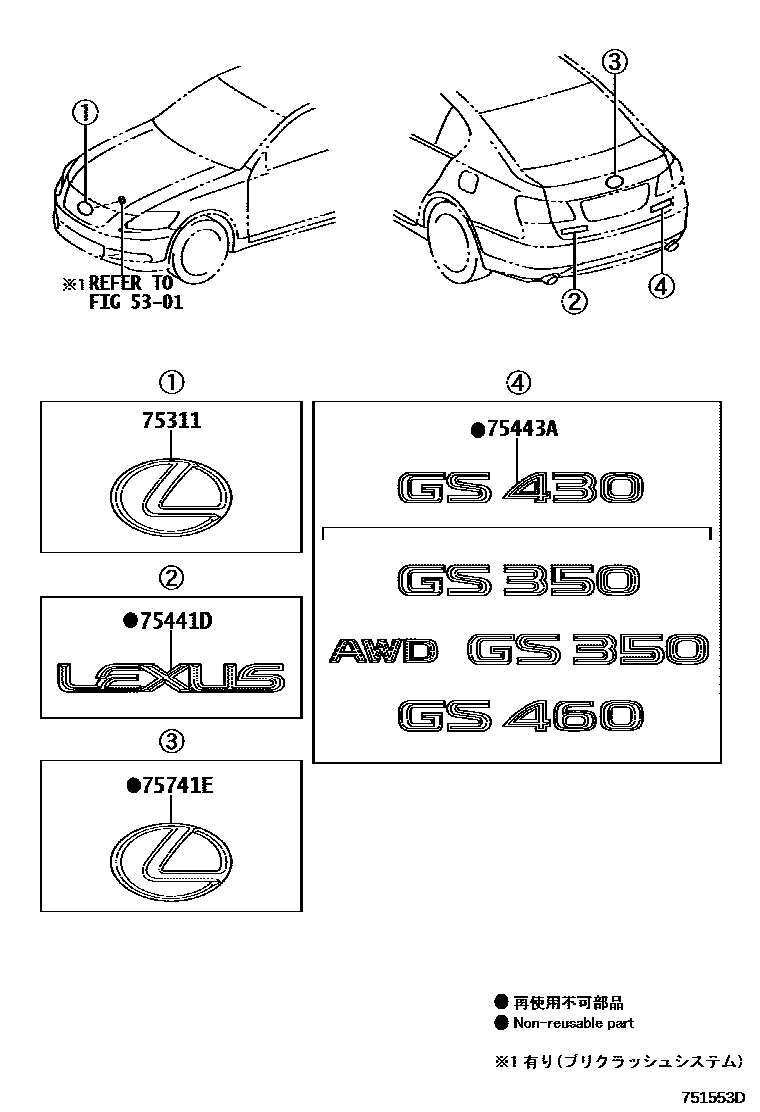

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301RADIATOR GRILLE

→ Go to FIG 53-01

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-30040iGRS19#,URS190; URS190200709-200811

main53141-48050iGRS19#,URS190; URS190200812-201112

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-30420iGRS19#,UZS190200508-200709

main75441-30421iGRS19#,URS190201006-201112

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75442-30190iGRS196200709-201112

main75443-30460iUZS190200508-200709

main75443-30470iGRS191200508-200709

main75443-30540iURS190200709-201112

75741EEMBLEM, SYMBOL

main90975-02079iGRS19#,URS190200709-201112

5 parts on this diagram · 1 diagram in section
