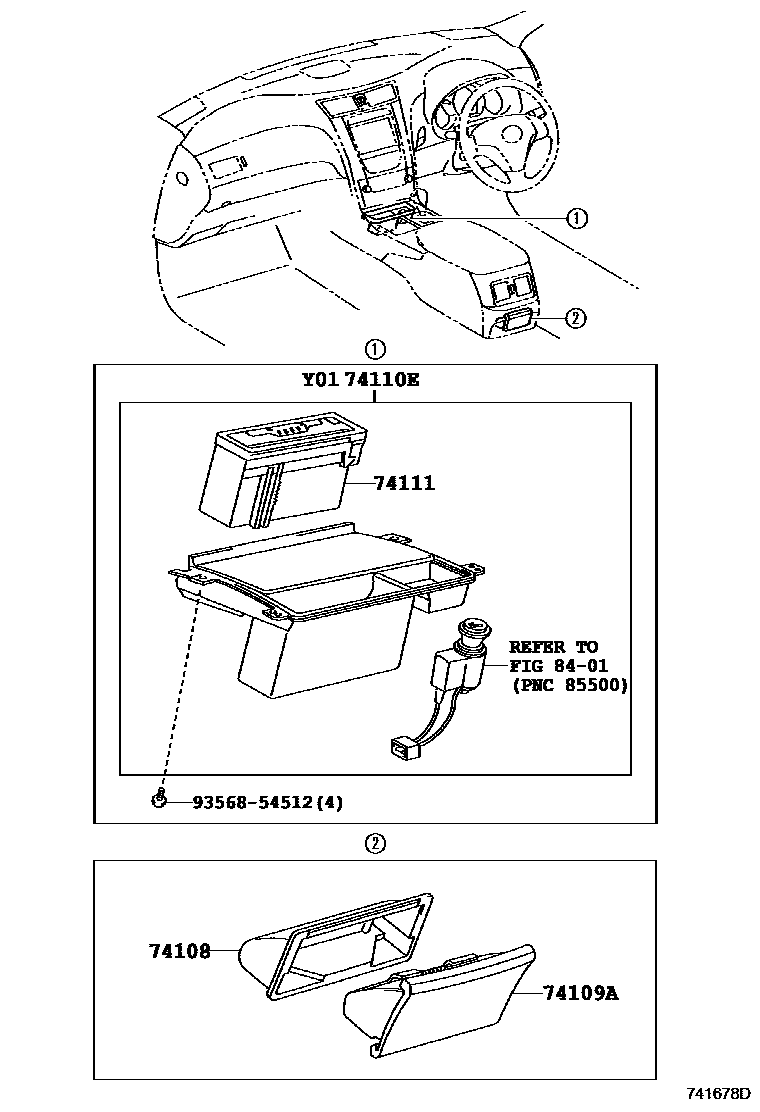

ASH RECEPTACLE

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-30080iGRS19#,UZS190200508-200709

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-30110-A0iGRS19#,URS190200709-200909

IVORY,TRIM0#

main74109-30110-A1iGRS19#,URS190200909-201112

IVORY,TRIM0#

main74109-30110-B1iGRS19#,URS190200709-201112

LT.GRAY,TRIM1#

main74109-30110-C0iGRS19#,UZS190200508-200709

BLACK,TRIM2#

main74109-30110-B0iGRS19#,UZS190200508-200709

74110ERECEPTACLE ASSY, FRONT ASH

main74110-30400-B0iGRS19#,UZS190200508-200709

DK.GRAY,TRIM1#

main74110-30400-B1iGRS19#,URS190200709-201112

GRAY,TRIM10,22,23

main74110-30400-D0iGRS19#,URS190200709-201112

REDDISH BROWN,TRIM01,03,20,21

main74110-30400-E0iGRS19#; URS190200709-201112

MIDIUM BROWN,TRIM00,02,11; MIDIUM BROWN,TRIM00,02,11,26

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGRS19#,UZS190200508-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356854512

main93568-54512

6 parts on this diagram · 1 diagram in section
