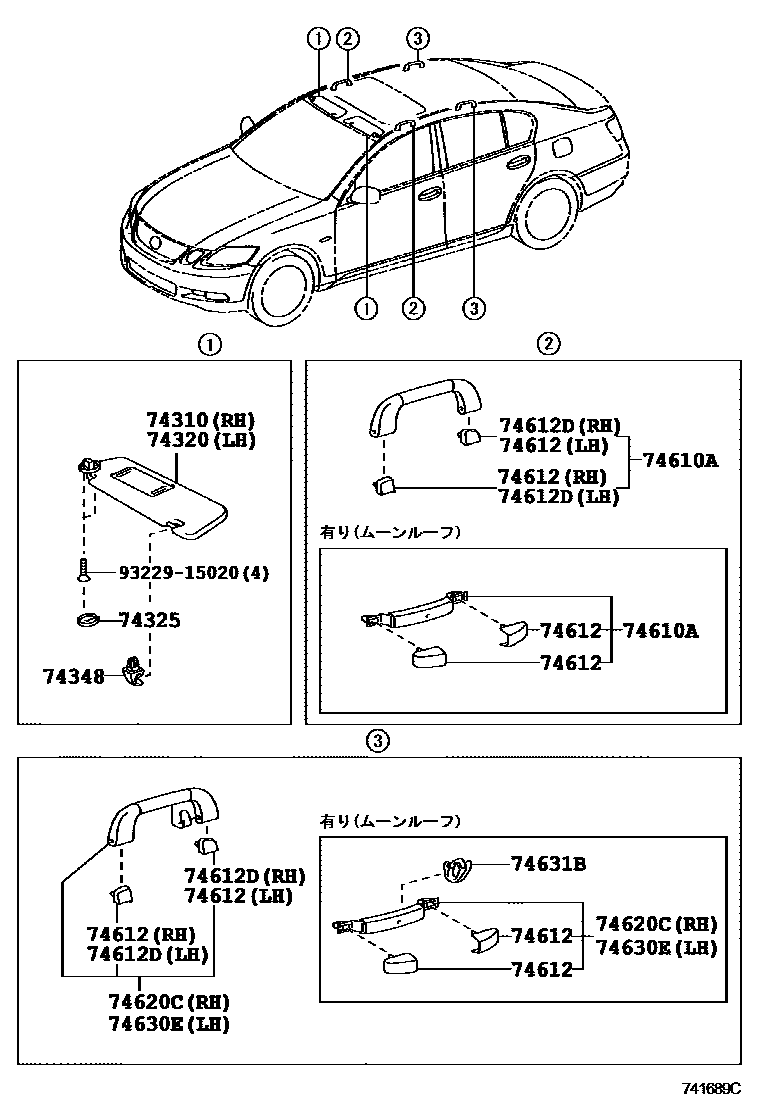

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-30A60-A0iGRS19#,UZS190200508-200709

NEW IVORY,TRIM0#

main74310-30A60-B0iGRS19#,UZS190200508-200709

NEW GRAY,TRIM1#,2#

main74310-30B40-A0iGRS19#,URS190200709-200909

NEW IVORY,TRIM0#

main74310-30B40-A1iGRS19#; URS190200909-201112

IVORY,TRIM0#; IVORY,TRIM0#,26

main74310-30B40-B0iURS190200709-201112

LT.GRAY,TRIM1#,2#

74320VISOR ASSY, LH

main74320-30A60-A0iGRS19#,UZS190200508-200709

NEW IVORY,TRIM0#

main74320-30A60-B0iGRS19#,UZS190200508-200709

NEW GRAY,TRIM1#,2#

main74320-30B10-A0iGRS19#,URS190200709-200909

NEW IVORY,TRIM0#

main74320-30B10-A1iGRS19#; URS190200909-201112

IVORY,TRIM0#; IVORY,TRIM0#,26

main74320-30B10-B0iGRS19#200909-201112

LT.GRAY,TRIM1#,20,22,26

74325COVER, VISOR BRACKET

main74317-60020-A1×2iGRS19#,URS190200709-200909

IVORY,TRIM0#

main74317-60020-A4×2iGRS19#; URS190200909-201112

IVORY,TRIM0#; IVORY,TRIM0#,26

main74317-60020-B1×2iGRS19#200709-200909

LT.GRAY,TRIM1#,2#

main74317-60020-B2×2iGRS19#,UZS190200508-200709

GRAY,TRIM1#,2#

74348HOLDER, VISOR

main74348-12040-A3×2iGRS19#,URS190200709-200909

IVORY,TRIM0#

main74348-12040-A5×2iGRS19#; URS190200909-201112

IVORY,TRIM0#; IVORY,TRIM0#,26

main74348-12040-B0×2iGRS19#200709-200909

LT.GRAY,TRIM1#,2#

main74348-12040-B4×2iGRS19#,UZS190200508-200709

GRAY,TRIM1#,2#

74610AGRIP SUB-ASSY, ASSIST

main74610-30310-A1×2supersedes 74610-30280-A1iGRS19#,UZS190200508-200709

main74610-30310-A3×2supersedes 74610-30280-A5iGRS19#; URS190200909-201112

main74610-30310-B1×2supersedes 74610-30280-B1iGRS19#,UZS190200508-200709

main74610-30310-B3×2supersedes 74610-30280-B3iGRS19#200709-200909

74612COVER, ASSIST GRIP

main74612-30190-A0×8supersedes 74611-60050-A2iGRS19#; URS190200709-201112

main74612-30190-B0×8supersedes 74611-60050-B0iGRS19#; URS190200709-201112

74612DCOVER, ASSIST GRIP

main74612-60100-A2×4iGRS19#; URS190200709-201112

IVORY,TRIM0#; IVORY,TRIM0#,26

main74612-60100-B0×4iGRS19#; URS190200709-201112

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20,22,26

74620CGRIP ASSY, ASSIST, REAR RH

main74610-30310-A1supersedes 74610-30290-A1iGRS19#,UZS190200508-200709

main74610-30310-A3supersedes 74610-30290-A2iGRS19#; URS190200909-201112

main74610-30310-B1supersedes 74610-30290-B1iGRS19#,UZS190200508-200709

main74610-30310-B3supersedes 74610-30290-B2iURS190200709-201112

74630EGRIP ASSY, ASSIST, REAR LH

main74610-30310-A1supersedes 74610-30300-A1iGRS19#,URS190200709-200909

main74610-30310-A3supersedes 74610-30300-A2iGRS19#; URS190200909-201112

main74610-30310-B1supersedes 74610-30300-B1iGRS19#,UZS190200508-200709

main74610-30310-B3supersedes 74610-30300-B2iURS190200709-201112

74631BHOOK, COAT

main74631-30080-A1×2iGRS19#,UZS190200508-200709

main74631-30080-A5×2iGRS19#; URS190200909-201112

main74631-30080-B1×2iGRS19#,UZS190200508-200709

main74631-30080-B2×2iURS190200709-201112

9322915020

main93229-15020

11 parts on this diagram · 1 diagram in section
