E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

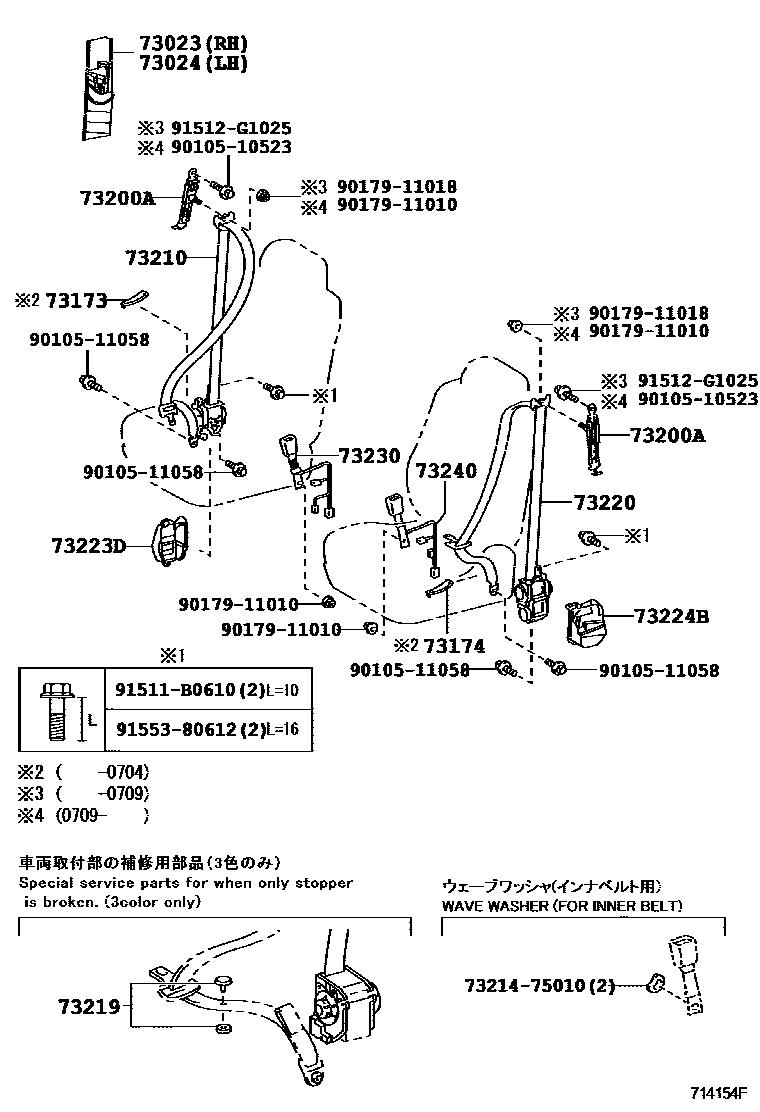

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200508-200809
IVORY,TRIM0#
main73023-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
main73023-30010-B5i200508-200709
GRAY,TRIM1#,28,29
main73023-30020-A0i200809-200909
IVORY,TRIM0#
main73023-30020-A1i200909-201112
IVORY,TRIM0#
main73023-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-30010-A2i200508-200809
IVORY,TRIM0#
main73024-30010-B2i200709-200809
LT.GRAY,TRIM1#,2#
main73024-30010-B5i200508-200709
GRAY,TRIM1#,28,29
main73024-30020-A0i200809-200909
IVORY,TRIM0#
main73024-30020-A1i200909-201112
IVORY,TRIM0#
main73024-30020-B0i200809-201112
LT.GRAY,TRIM1#,2#
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-30060-A0i200508-200704
IVORY,TRIM0#
main73173-30060-B0i200508-200704
GRAY,TRIM1#
main73173-30060-C0i200508-200704
BLACK,TRIM28,29
73174COVER, FRONT SEAT BELT HOLE, LH
main73174-30060-A0i200508-200704
IVORY,TRIM0#
main73174-30060-B0i200508-200704
GRAY,TRIM1#
main73174-30060-C0i200508-200704
BLACK,TRIM28,29
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020i200508-200709
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30A90-A0i200508-200808
IVORY,TRIM0#
main73210-30A90-B0i200508-200709
GRAY,TRIM1#
main73210-30A90-B1i200709-200808
GRAY,TRIM1#
main73210-30A90-C0i200508-200709
BLACK,TRIM28,29
main73210-30A90-C1i200709-200808
BLACK,TRIM2#
main73210-30D40-A0i200809-200909
IVORY,TRIM0#
main73210-30D40-A1i200909-201112
IVORY,TRIM0#
main73210-30D40-B0i200809-200909
GRAY,TRIM1#
main73210-30D40-B3i200909-201112
GRAY/LT.GRAY,TRIM1#
main73210-30D40-C0i200809-200909
BLACK,TRIM2#
main73210-30D40-C2i200909-201112
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-33010i200709
main73219-33020i200709
main73219-33030i200709
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30A90-A0i200508-200808
IVORY,TRIM0#
main73220-30A90-B0i200508-200709
GRAY,TRIM1#
main73220-30A90-B1i200709-200808
GRAY,TRIM1#
main73220-30A90-C0i200508-200709
BLACK,TRIM28,29
main73220-30A90-C1i200709-200808
BLACK,TRIM2#
main73220-30D00-A0i200809-200908
IVORY,TRIM0#
main73220-30D00-B0i200809-200908
GRAY,TRIM1#
main73220-30D00-C0i200809-200908
BLACK,TRIM2#
main73220-30D01-A1i200909-200912
IVORY,TRIM0#
main73220-30D01-B3i200909-200912
GRAY/LT.GRAY,TRIM1#
main73220-30D01-C2i200909-200912
BLACK,TRIM2#
main73220-30D20-A1i200912-201112
IVORY,TRIM0#
main73220-30D20-B3i200912-201112
GRAY/LT.GRAY,TRIM1#
main73220-30D20-C2i200912-201112
BLACK,TRIM2#
73223COVER, SEAT BELT RETRACTOR
main73223-30070i200508-200709
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-30120i200508-200709
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-30090i200508-200709
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30A10-A0i200508-200909
IVORY,TRIM0#
main73230-30A10-A1i200909-201112
IVORY,TRIM0#
main73230-30A10-B0i200508-200709
GRAY,TRIM1#
main73230-30A10-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A10-C0i200508-200709
BLACK,TRIM28,29
main73230-30A10-C0i200709-201112
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-30A20-A0i200508-200909
IVORY,TRIM0#
main73230-30A20-A1i200909-201112
IVORY,TRIM0#
main73230-30A20-B0i200508-200709
GRAY,TRIM1#
main73230-30A20-B1i200709-201112
LT.GRAY,TRIM1#
main73230-30A20-C0i200709-201112
BLACK,TRIM2#
main73230-30A20-C0i200508-200709
BLACK,TRIM28,29
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9017911010
main90179-11010
9017911018
main90179-11018
91511B0610
main91511-B0610
91512G1025
main91512-G1025
9155380612
main91553-80612

21 parts on this diagram · 3 diagrams in section
