EPC Data

FRONT SEAT & SEAT TRACK

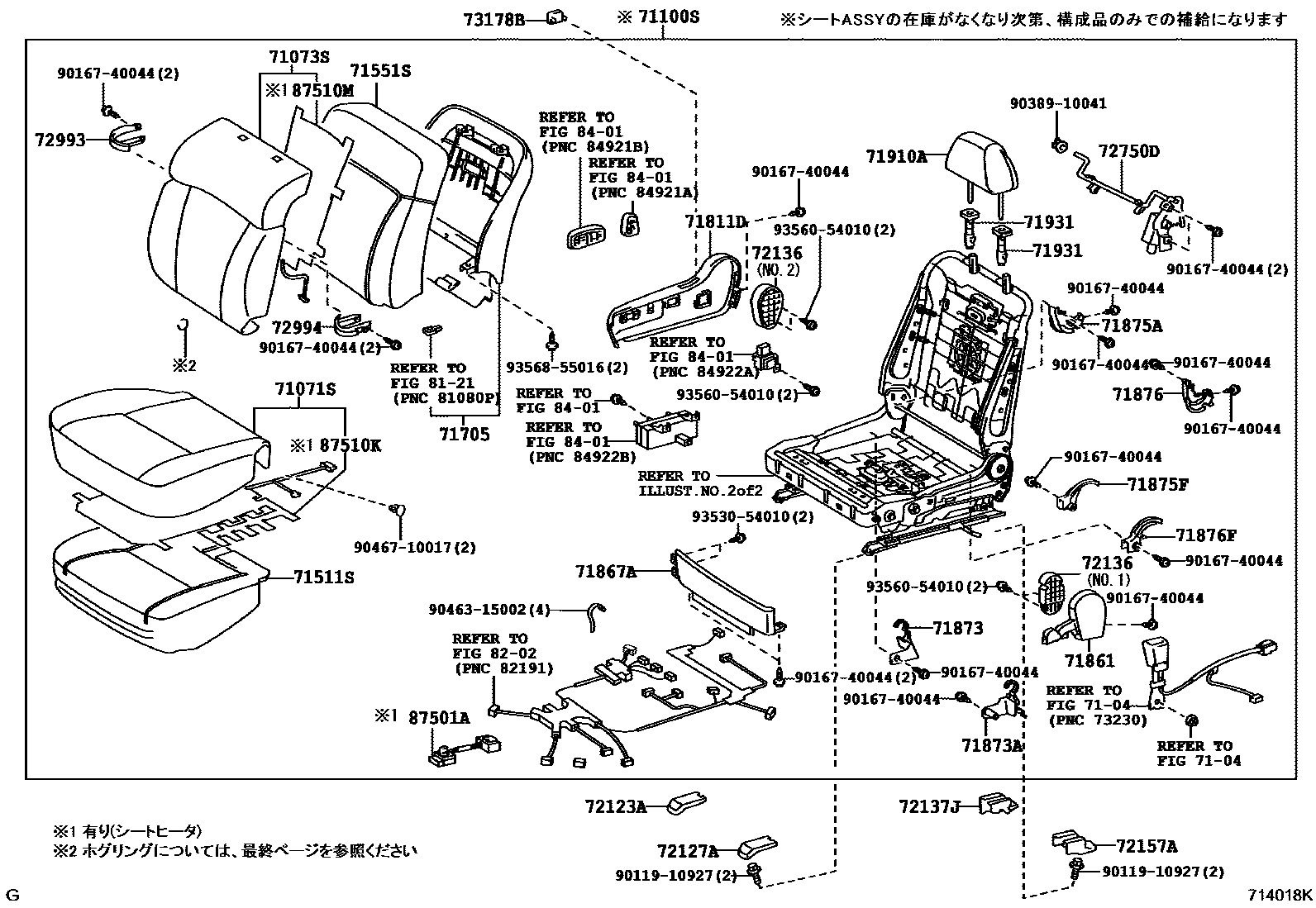

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-30B00-C0i200508-200704
BLACK,TRIM2#
sub71071-30B01
main71071-30B10-A0i200508-200704
main71071-30B10-B0i200508-200704
main71071-30B10-E0i200508-200704
main71071-30C20-A0i200704-200709
main71071-30C20-B0i200704-200709
main71071-30C20-E0supersedes 71071-30C10-C0i200704-200709
main71071-30D00-A1supersedes 71071-30D41-A3i200709-200908
main71071-30D00-B1supersedes 71071-30D41-B3i200709-200908
main71071-30D00-E1supersedes 71071-30D41-C3i200709-200908
main71071-30D01-A5supersedes 71071-30D41-A3i200909-201105
main71071-30D01-A6i201105-201109
main71071-30D01-B4supersedes 71071-30D41-B3i200909-201105
main71071-30D01-B5supersedes 71071-30D41-B3i201105-201112
main71071-30D01-C4supersedes 71071-30D41-C3i200909-201105
main71071-30D01-C5i201105-201109
main71071-30D01-E2i201007-201105
main71071-30D01-E3i201105-201109
main71071-30D20-A2supersedes 71071-30D41-A3i200709-200908
main71071-30D20-B1supersedes 71071-30D41-B3i200709-200908
main71071-30D20-C2i200804-200809
main71071-30D20-E1supersedes 71071-30D41-C3i200709-200908
main71071-30D21-A7supersedes 71071-30D41-A3i200909-201105
main71071-30D21-A9supersedes 71071-30D41-A3i201105-201112
main71071-30D21-B3supersedes 71071-30D41-B3i200909-201105
main71071-30D21-B4supersedes 71071-30D41-B3i201105-201112
main71071-30D21-C6supersedes 71071-30D41-C3i200909-201105
main71071-30D21-C8supersedes 71071-30D41-C3i201105-201112
main71071-30E20-C0i200903-200908
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-30B00-C0i200508-200709
BLACK,TRIM2#
sub71073-30B01
main71073-30B10-A0i200508-200709
main71073-30B10-B0i200508-200709
main71073-30B10-E0i200508-200709
main71073-30C60-A2supersedes 71073-30E40-A2i200709-200909
main71073-30C60-B1supersedes 71073-30E40-B2i200709-200909
main71073-30C60-C2i200804-200809
main71073-30C60-E1supersedes 71073-30E40-C2i200709-200909
main71073-30D00-A0supersedes 71073-30E40-A2i200709-200909
main71073-30D00-B0supersedes 71073-30E40-B2i200709-200909
main71073-30D00-E0supersedes 71073-30E40-C2i200709-200909
main71073-30E00-C0i200903-200908
main71073-30E10-A0supersedes 71073-30E40-A0i200909-201007
main71073-30E10-A1supersedes 71073-30E40-A1i201007-201105
main71073-30E10-A2supersedes 71073-30E40-A2i201105-201112
main71073-30E10-B0supersedes 71073-30E40-B0i200909-201007
main71073-30E10-B1supersedes 71073-30E40-B1i201007-201105
main71073-30E10-B2supersedes 71073-30E40-B2i201105-201112
main71073-30E10-C0supersedes 71073-30E40-C0i200909-201007
main71073-30E10-C1supersedes 71073-30E40-C1i201007-201105
main71073-30E10-C2i201105-201109
main71073-30E10-E2i201007-201105
main71073-30E10-E3i201105-201109
main71073-30E30-A0i200909-201006
main71073-30E30-B0i200909-201006
main71073-30E30-C0i200909-201006
main71073-30E31-A2supersedes 71073-30E40-A1i201007-201105
main71073-30E31-A4supersedes 71073-30E40-A2i201105-201112
main71073-30E31-B1supersedes 71073-30E40-B1i201007-201105
main71073-30E31-B2supersedes 71073-30E40-B2i201105-201112
main71073-30E31-C2supersedes 71073-30E40-C1i201007-201105
main71073-30E31-C4supersedes 71073-30E40-C2i201105-201112
71100SSEAT ASSY, FRONT RH
main71100-30M81-A0i200809-200909
IVORY,TRIM0#
sub71100-3FU90
main71100-30M81-B0i200809-200909
GRAY,TRIM1#
sub71100-3FU90
main71100-30M81-C0i200809-200909
BLACK,TRIM2#
sub71100-3FU90
main71100-30N21-A0i200809-200909
IVORY,TRIM0#
sub71100-3FV10
main71100-30N21-B0i200809-200909
GRAY,TRIM1#
sub71100-3FV10
main71100-30N21-C0i200809-200909
BLACK,TRIM2#
sub71100-3FV10
main71100-30A10-A0supersedes 71100-30Q80-A5i200508-200704
main71100-30A10-B0supersedes 71100-30Q80-B4i200508-200704
main71100-30A10-E0supersedes 71100-30Q80-C4i200508-200704
main71100-30A11-A0supersedes 71100-30Q80-A5i200704-200709
main71100-30A11-B0supersedes 71100-30Q80-B4i200704-200709
main71100-30A11-E0supersedes 71100-30Q80-C4i200704-200709
main71100-30B70-A1i200508-200704
main71100-30B70-B1i200508-200704
main71100-30B70-E1i200508-200704
main71100-30B71-A2i200704-200709
main71100-30B71-B2i200704-200709
main71100-30B71-E2i200704-200709
main71100-30C10-A1supersedes 71100-30Q80-A5i200508-200704
main71100-30C10-B1supersedes 71100-30Q80-B4i200508-200704
main71100-30C10-E1supersedes 71100-30Q80-C4i200508-200704
main71100-30C11-A1supersedes 71100-30Q80-A5i200704-200709
main71100-30C11-B1supersedes 71100-30Q80-B4i200704-200709
main71100-30C11-E1supersedes 71100-30Q80-C4i200704-200709
main71100-30C60-A0i200508-200704
main71100-30C60-B0i200508-200704
main71100-30C60-E0supersedes 71100-30B61-C1i200508-200704
main71100-30C61-A0i200704-200709
main71100-30C61-B0i200704-200709
main71100-30C61-E0supersedes 71100-30B61-C1i200704-200709
main71100-30K80-A0supersedes 71100-30N20-A1i200709-200809
main71100-30K80-B0supersedes 71100-30N20-B1i200709-200809
main71100-30K80-C0supersedes 71100-30N20-C1i200709-200809
main71100-30K81-A0i200809-200909
main71100-30K81-B0i200809-200909
main71100-30K81-C0i200809-200909
main71100-30L00-A0supersedes 71100-30N20-A1i200709-200809
main71100-30L00-B0supersedes 71100-30N20-B1i200709-200809
main71100-30L00-C0supersedes 71100-30N20-C1i200709-200809
main71100-30L00-C1i200804-200809
main71100-30L01-A0i200809-200909
main71100-30L01-B0i200809-200909
main71100-30L01-C0i200809-200909
main71100-30M00-A0supersedes 71100-30M80-A1i200709-200809
main71100-30M00-B0supersedes 71100-30M80-B1i200709-200809
main71100-30M00-C1supersedes 71100-30M80-C1i200709-200809
main71100-30M01-A0i200809-200909
main71100-30M01-B0i200809-200909
main71100-30M01-C1i200809-200909
main71100-30M10-A0supersedes 71100-30M80-A1i200709-200809
main71100-30M10-B0supersedes 71100-30M80-B1i200709-200809
main71100-30M10-C1supersedes 71100-30M80-C1i200709-200809
main71100-30M10-C2i200804-200809
main71100-30M11-A0i200809-200909
main71100-30M11-B0i200809-200909
main71100-30M11-C1i200809-200909
main71100-30Q50-A2supersedes 71100-30Q40-A2i200909-201007
main71100-30Q50-A4supersedes 71100-30Q40-A4i201007-201105
main71100-30Q50-A5supersedes 71100-30Q40-A5i201105-201112
main71100-30Q50-B1supersedes 71100-30Q40-B1i200909-201007
main71100-30Q50-B3supersedes 71100-30Q40-B3i201007-201105
main71100-30Q50-B4supersedes 71100-30Q40-B4i201105-201112
main71100-30Q50-C1supersedes 71100-30Q40-C1i200909-201007
main71100-30Q50-C6supersedes 71100-30Q40-C3i201007-201105
main71100-30Q50-C7i201007-201105
main71100-30Q50-C8supersedes 71100-30Q40-C4i201105-201112
main71100-30Q50-C9i201105-201109
main71100-30Q70-A3supersedes 71100-30Q40-A2i200909-201007
main71100-30Q70-A7supersedes 71100-30Q40-A4i201007-201105
main71100-30Q70-A9supersedes 71100-30Q40-A5i201105-201112
main71100-30Q70-B1supersedes 71100-30Q40-B1i200909-201007
main71100-30Q70-B3supersedes 71100-30Q40-B3i201007-201105
main71100-30Q70-B4supersedes 71100-30Q40-B4i201105-201112
main71100-30Q70-C2supersedes 71100-30Q40-C1i200909-201007
main71100-30Q70-C6supersedes 71100-30Q40-C3i201007-201105
main71100-30Q70-C8supersedes 71100-30Q40-C4i201105-201112
main71100-30Q90-A2supersedes 71100-30Q80-A2i200909-201007
main71100-30Q90-A4supersedes 71100-30Q80-A4i201007-201105
main71100-30Q90-A5supersedes 71100-30Q80-A5i201105-201112
main71100-30Q90-B1supersedes 71100-30Q80-B1i200909-201007
main71100-30Q90-B3supersedes 71100-30Q80-B3i201007-201105
main71100-30Q90-B4supersedes 71100-30Q80-B4i201105-201112
main71100-30Q90-C1supersedes 71100-30Q80-C1i200909-201007
main71100-30Q90-C6supersedes 71100-30Q80-C3i201007-201105
main71100-30Q90-C7supersedes 71100-30Q80-C3i201007-201105
main71100-30Q90-C8supersedes 71100-30Q80-C4i201105-201109
main71100-30Q90-C9supersedes 71100-30Q80-C4i201105-201112
main71100-30R00-A2supersedes 71100-30Q80-A2i200909-201007
main71100-30R00-A4supersedes 71100-30Q80-A4i201007-201105
main71100-30R00-A5supersedes 71100-30Q80-A5i201105-201112
main71100-30R00-B1supersedes 71100-30Q80-B1i200909-201007
main71100-30R00-B3supersedes 71100-30Q80-B3i201007-201105
main71100-30R00-B4supersedes 71100-30Q80-B4i201105-201112
main71100-30R00-C1supersedes 71100-30Q80-C1i200909-201007
main71100-30R00-C3supersedes 71100-30Q80-C3i201007-201105
main71100-30R00-C4supersedes 71100-30Q80-C4i201105-201112
main71100-30S10-C0i200903-200908
main71100-30S20-C0i200903-200908
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-30A40supersedes 71511-30A30i200508-200704
main71511-30A70supersedes 71511-30A20i200709-201112
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-30A70supersedes 71551-30A60i200709-200909
main71551-30B70supersedes 71551-30B60i200909-201112
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-30770-A1i200709-200809
IVORY,TRIM0#
main71705-30770-B1i200508-200709
LT.GRAY,TRIM1#
main71705-30770-B2i200709-200809
LT.GRAY,TRIM1#
main71705-30770-C1i200709-200809
BLACK,TRIM2#
main71705-30771-A1i200809-200908
IVORY,TRIM0#
main71705-30771-B2i200809-200908
LT.GRAY,TRIM1#
main71705-30771-C1i200809-200908
BLACK,TRIM2#
main71705-30870-A2i200909-201112
IVORY,TRIM0#
main71705-30870-B0i200909-201112
LT.GRAY,TRIM1#
main71705-30870-C0i200909-201112
BLACK,TRIM2#
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-30470-A0i200508-200704
IVORY,TRIM0#
main71811-30470-B0i200508-200704
GRAY,TRIM1#
main71811-30470-C0i200508-200704
BLACK,TRIM28,29
main71811-30480-A0i200704-200709
IVORY,TRIM0#
main71811-30480-A1i200909-201112
IVORY,TRIM0#
main71811-30480-B0i200704-200709
GRAY,TRIM1#
main71811-30480-B1i200709-201112
LT.GRAY,TRIM1#
main71811-30480-C0i200709-201112
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-60110-A1i200709-200909
IVORY,TRIM0#
main71861-60110-A3i200909-201112
IVORY,TRIM0#
main71861-60110-B5i200508-200709
GRAY,TRIM1#
main71861-60110-B6i200709-201112
LT.GRAY,TRIM1#
main71861-60110-C0i200709-201112
BLACK,TRIM2#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-30130-A0i200508-200709
IVORY,TRIM0#
main71867-30130-A1i200909-201112
IVORY,TRIM0#
main71867-30130-B0i200508-200709
GRAY,TRIM1#
main71867-30130-B1i200709-201112
LT.GRAY,TRIM1#
main71867-30130-C0i200508-200709
BLACK,TRIM28,29
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30060i200709-201112
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-30070i200508-200709
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58050i200709-201112
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-30170-A0i200508-200704
IVORY,TRIM0#
main71875-30170-B0i200508-200704
GRAY,TRIM1#
main71875-30170-C0i200508-200704
BLACK,TRIM28,29
main71875-30180-A0i200704-200709
IVORY,TRIM0#
main71875-30180-A1i200909-201112
IVORY,TRIM0#
main71875-30180-B0i200704-200709
GRAY,TRIM1#
main71875-30180-B1i200709-201112
LT.GRAY,TRIM1#
main71875-30180-C0i200704-200709
BLACK,TRIM28,29
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200508-200709
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-60150-A1i200709-200909
IVORY,TRIM0#
main71875-60150-A3i200909-201112
IVORY,TRIM0#
main71875-60150-B5i200508-200709
GRAY,TRIM1#
main71875-60150-B7i200709-201112
LT.GRAY,TRIM1#
main71875-60150-C0i200508-200709
BLACK,TRIM28,29
71910AHEADREST ASSY, FRONT SEAT
main71910-30A00-A0i200709-200909
sub71910-30A01
main71910-30A00-B0i200709-200909
sub71910-30A01
main71910-30A00-C0i200508-200709
sub71910-30A01
main71910-30B20-A1i200709-200909
sub71910-30B21
main71910-30B20-B1i200709-200909
sub71910-30B21
main71910-30B20-C0i200508-200709
sub71910-30B21
main71910-30A60-A0i200508-200709
sub71910-30A61
main71910-30A60-B0i200508-200709
sub71910-30A61
main71910-30A60-B1supersedes 71910-30D80-B1i200709-200903
sub71910-30A61
main71910-30A60-E0supersedes 71910-30D80-C1i200709-200903
sub71910-30A61
main71910-30B30-A0i200508-200709
sub71910-30B31
main71910-30B30-B0i200508-200709
sub71910-30B31
main71910-30B30-B2supersedes 71910-30D80-B1i200709-200903
sub71910-30B31
main71910-30B30-E0supersedes 71910-30D80-C1i200709-200903
sub71910-30B31
main71910-30C20-A1i200709-200909
sub71910-30C21
main71910-30C20-B0i200709-200909
sub71910-30C21
main71910-30C20-C1i200804-200809
sub71910-30C21
main71910-30C20-E0i200709-200909
sub71910-30C21
main71910-30C30-A1supersedes 71910-30D80-A1i200709-200903
sub71910-30C31
main71910-30C30-B0supersedes 71910-30D80-B1i200709-200903
sub71910-30C31
main71910-30C30-C1i200804-200809
sub71910-30C31
main71910-30C30-E0supersedes 71910-30D80-C1i200709-200903
sub71910-30C31
main71910-30D00-C0i200903-200908
sub71910-30D01
main71910-30D10-C0i200903-200908
sub71910-30D11
main71910-30D60-A1×2supersedes 71910-30D80-A1i201105-201109
sub71910-30D61
main71910-30D60-A2×2supersedes 71910-30D80-A2i201007-201105
sub71910-30D61
main71910-30D60-B1×2supersedes 71910-30D80-B1i201105-201109
sub71910-30D61
main71910-30D60-B2×2supersedes 71910-30D80-B2i201007-201105
sub71910-30D61
main71910-30D60-C1×2supersedes 71910-30D80-C1i201109-201112
sub71910-30D61
main71910-30D60-C2×2supersedes 71910-30D80-C2i201007-201105
sub71910-30D61
main71910-30D60-E3×2i201007-201105
sub71910-30D61
main71910-30D60-E4×2i201105-201109
sub71910-30D61
main71910-30D70-A2×2i200909-201006
main71910-30D70-B1×2i200909-201006
main71910-30D70-C2×2i200909-201006
main71910-30D71-A2×2supersedes 71910-30D80-A1i201105-201112
sub71910-30D72
main71910-30D71-A4×2supersedes 71910-30D80-A2i201007-201105
sub71910-30D72
main71910-30D71-B1×2supersedes 71910-30D80-B1i201105-201112
sub71910-30D72
main71910-30D71-B2×2supersedes 71910-30D80-B2i201007-201105
sub71910-30D72
main71910-30D71-C2×2supersedes 71910-30D80-C1i201105-201112
sub71910-30D72
main71910-30D71-C4×2supersedes 71910-30D80-C2i201007-201105
sub71910-30D72
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A3i200508-200707
sub71930-44020
main71930-42020-B7i200508-200707
sub71930-44020
main71930-42020-C0i200508-200707
sub71930-44020
main71930-52030-A1i200708-200709
main71930-52030-A3i200909-201112
main71930-52030-B1i200708-200709
main71930-52030-B5i200709-201112
main71930-52030-C0i200708-200709
main71931-30040-A0×2i200709-200909
main71931-30040-B0×2i200508-200709
main71931-30040-B1×2i200709-200909
main71931-30040-C0×2i200508-200709
main71931-42020-A3i200508-200709
main71931-42020-A6i200909-201112
main71931-42020-B2i200909-201112
main71931-42020-B7i200508-200709
main71931-42020-C0i200709-201112
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-30120-A0i200508-200709
IVORY,TRIM0#
main72123-30120-A1i200909-201112
IVORY,TRIM0#
main72123-30120-B0i200508-200709
GRAY,TRIM1#
main72123-30120-B1i200709-201112
LT.GRAY,TRIM1#
main72123-30120-C0i200709-201112
BLACK,TRIM2#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-30120-A0i200508-200709
IVORY,TRIM0#
main72123-30120-A1i200909-201112
IVORY,TRIM0#
main72123-30120-B0i200508-200709
GRAY,TRIM1#
main72123-30120-B1i200709-201112
LT.GRAY,TRIM1#
main72123-30120-C0i200709-201112
BLACK,TRIM2#
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-30050i200508-200709
main72136-30060i200508-200709
main72136-53020×2i200709-201112
main72136-53060i201106-201112
main72136-53070i201106-201112
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-30290-A0i200709-200909
IVORY,TRIM0#
main72137-30290-A1i200909-201112
IVORY,TRIM0#
main72137-30290-B0i200508-200709
GRAY,TRIM1#
main72137-30290-B1i200709-201112
LT.GRAY,TRIM1#
main72137-30290-C0i200508-200709
BLACK,TRIM28,29
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-30120-A0i200508-200709
IVORY,TRIM0#
main72157-30120-A1i200909-201112
IVORY,TRIM0#
main72157-30120-B0i200508-200709
GRAY,TRIM1#
main72157-30120-B1i200709-201112
LT.GRAY,TRIM1#
main72157-30120-C0i200508-200709
BLACK,TRIM28,29
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30260i200508-200709
72993COVER, FRONT SEATBACK
main72993-30130-C0i200508-200709
BLACK,TRIM28
main72993-30150i200709-201112
main72993-30130-B0i200508-200709
main72993-30130-E0i200508-200709
72994COVER, FRONT SEATBACK
main72994-30020-C0i200508-200709
BLACK,TRIM28
main72994-30040i200709-201112
main72994-30020-B0i200508-200709
main72994-30020-E0i200508-200709
73178BCAP, SEAT BELT ANCHOR COVER
main73178-30030-A0×2i200508-200704
IVORY,TRIM0#
main73178-30030-B1×2i200508-200704
GRAY,TRIM1#
main73178-30030-C0×2i200508-200704
BLACK,TRIM28,29
main73178-30061-A0i200709-200711
main73178-30061-B0i200704-200709
main73178-30061-B1i200709-200711
main73178-30061-C0i200704-200709
main73178-30062-A0i200712-200809
main73178-30062-B1i200712-200809
main73178-30062-C0i200712-200809
main73178-30090-A0i200809-200909
main73178-30090-A1i200909-201112
main73178-30090-B0i200809-201112
main73178-30090-C0i200809-201112
main73179-30020-A0i200709-200711
main73179-30020-B0i200704-200709
main73179-30020-B1i200709-200711
main73179-30020-C0i200709-200711
main73179-30021-A0i200712-200809
main73179-30021-B1i200712-200809
main73179-30021-C0i200712-200809
main73179-30030-A0i200809-200909
main73179-30030-A1i200909-201112
main73179-30030-B0i200809-201112
main73179-30030-C0i200809-201112
8121
8202
8401
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-60010i200709-201104
sub87501-60060
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-30310i200508-200709
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-30060i200508-200709
9011910927
main90119-10927
9016740044
main90167-40044
9038910041
main90389-10041
9046315002
main90463-15002
9046710017
main90467-10017
9353054010
main93530-54010
9356054010
main93560-54010
9356855016
main93568-55016

41 parts on this diagram · 7 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
