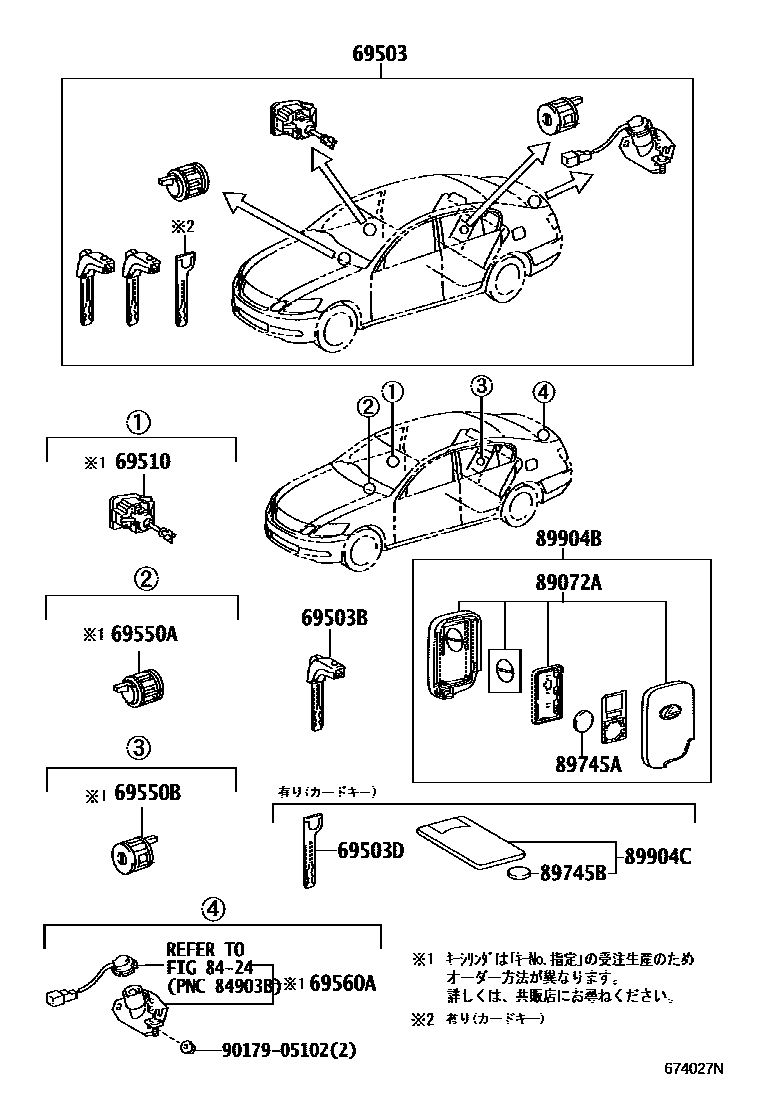

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-30A60iGRS19#,UZS190200508-200709

main69005-30C30iGRS19#,URS190200709

main69005-30D50iGRS19#,URS190200809

69503BKEY, CUT

main69515-30290iGRS19#,UZS190200508-200709

main69515-50240×2iGRS19#,URS190200709-201112

69503DKEY, CUT(CARD KEY)

main69515-30330iGRS19#,URS190200905

main69515-50220iGRS19#,URS190200809-200904

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30310iGRS19#,URS190200709-201112

main69510-48050iGRS19#,UZS190200508-200709

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30150iGRS19#,UZS190200508-200709

main69550-50040iGRS19#,URS190200709-201112

69550BCYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK

main69550-33090iGRS19#,UZS190200508-200709

main69550-50040iGRS19#,URS190200709-201112

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30340iGRS19#,UZS190200508-200709

main69560-50090iGRS19#,URS190200709-201112

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53220iGRS19#,UZS190200508-200709

main89072-53221×2iGRS19#,URS190200809-201112

89745ABATTERY, TRANSMITTER

main89745-52020iGRS19#,UZS190200508-200709

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGRS19#,URS190200809-201112

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30341iGRS19#,UZS190200508-200709

main89904-50370×2iGRS19#,URS190200809-201108

main89904-53490×2iGRS19#,URS190201108-201112

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-50470iGRS19#,URS190200809-201108

main89904-53500iGRS19#,URS190201108-201112

9017905102

main90179-05102

14 parts on this diagram · 1 diagram in section
