58387PLATE, REAR FLOOR FINISH

main58387-30170-C0i200709-201112

BLACK,TRIM0#,1#,2#

64273DPAD, ROOM PARTITION, NO.1

main64273-30160i200709-201112

64274APAD, ROOM PARTITION, NO.2

main64274-30070i200709

64278BPAD, ROOM PARTITION, NO.3

main64278-30010i200508-200709

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-30B50-A0i200508-200709

main64330-30B50-B0i200508-200709

main64330-30B50-B1i200709-200809

LT.GRAY,TRIM1#

main64330-30B50-C0i200709-200809

BLACK,TRIM2#

main64330-30B40-A0supersedes 64330-30B30-A0i200809-200909

main64330-30B40-A1supersedes 64330-30B30-A1i200909-201112

main64330-30B40-B0supersedes 64330-30B30-B1i200508-200709

main64330-30B40-B1supersedes 64330-30B30-B1i200809-201112

main64330-30B40-C0supersedes 64330-30B30-C0i200809-201112

main64330-30B50-A1supersedes 64330-30B30-A1i200909-201112

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161i200508-200709

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-30060-A0i200508-200709

main64340-30060-A1i200909-201112

main64340-30060-B0i200508-200709

main64340-30060-B1i200709-201112

main64340-30060-C0i200508-200709

main64340-30070-A0supersedes 64340-30060-A0i200508-200709

main64340-30070-A1i200909-201112

main64340-30070-B0i200508-200709

main64340-30070-B1i200709-201112

main64340-30070-C0supersedes 64340-30060-C0i200508-200709

64350ASHADE ASSY, REAR WINDOW

main64350-30050i200508-200709

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30590-C0i200709-201112

BLACK,TRIM0#,1#,2#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-30480-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30340-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-30171-C0i200709-201112

BLACK,TRIM0#,1#,2#

64717CCOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30400i200508-200709

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-30080-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30210-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×11i200709-201112

BLACK,TRIM0#,1#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-30210-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-30130-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-30080-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-30040×2i200508-200709

main64726-30060-C0×2i200508-200709

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-30010-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-30010-C0i200508-200709

BLACK,TRIM0#,1#,28,29

64769CASE SUB-ASSY, TOOL BAG

main64769-30010i200809

64779ASTOPPER, SPARE WHEEL COVER

main64779-30031i200508-200709

66310DHOOK ASSY, ROPE

main66310-30010×4i200508-200509

main66310-30011-C0×4i200509-200709

BLACK,TRIM0#,1#,28,29

66311LHOOK,ROPE

main66311-30010-C0×2i200508-200709

BLACK,TRIM0#,1#,28,29

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30020-C0i200508-200709

BLACK,TRIM0#,1#,28,29

75201ABOX, TOOL

main75201-30061i200508-200709

main75201-30070supersedes 75201-30061i200508-200708

main75201-30071i200809

75219DBOARD, TOOL BOX

main75219-30010i200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6472530190RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-30190

6477730080CLAMP, SPARE WHEEL COVER

main64777-30080

9011906767

main90119-06767

9015960350

main90159-60350

9046705145

main90467-05145

9046708186C0

main90467-08186C0

9046710161

main90467-10161

9046712069

main90467-12069

91631B0625

main91631-B0625

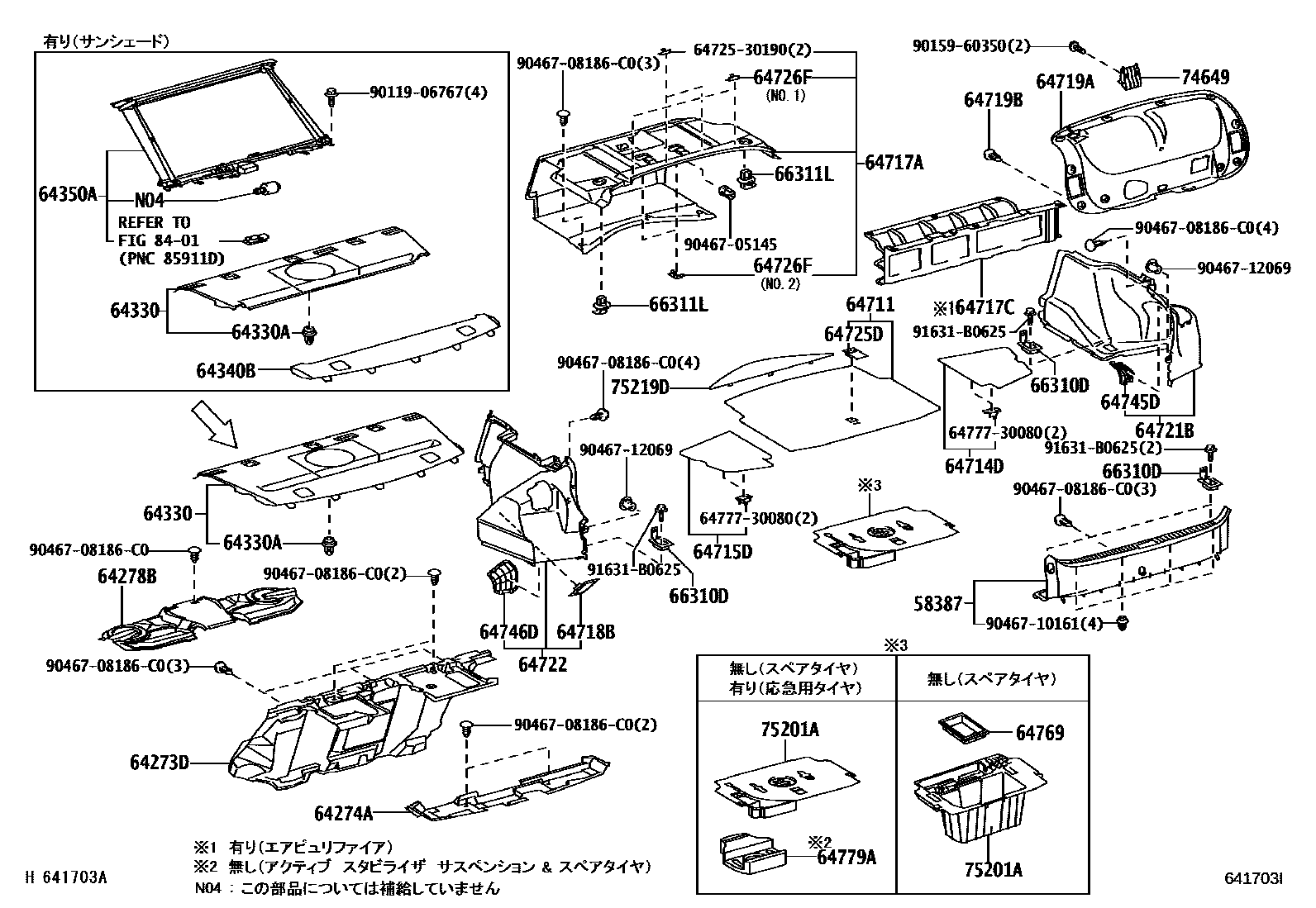

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
