INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

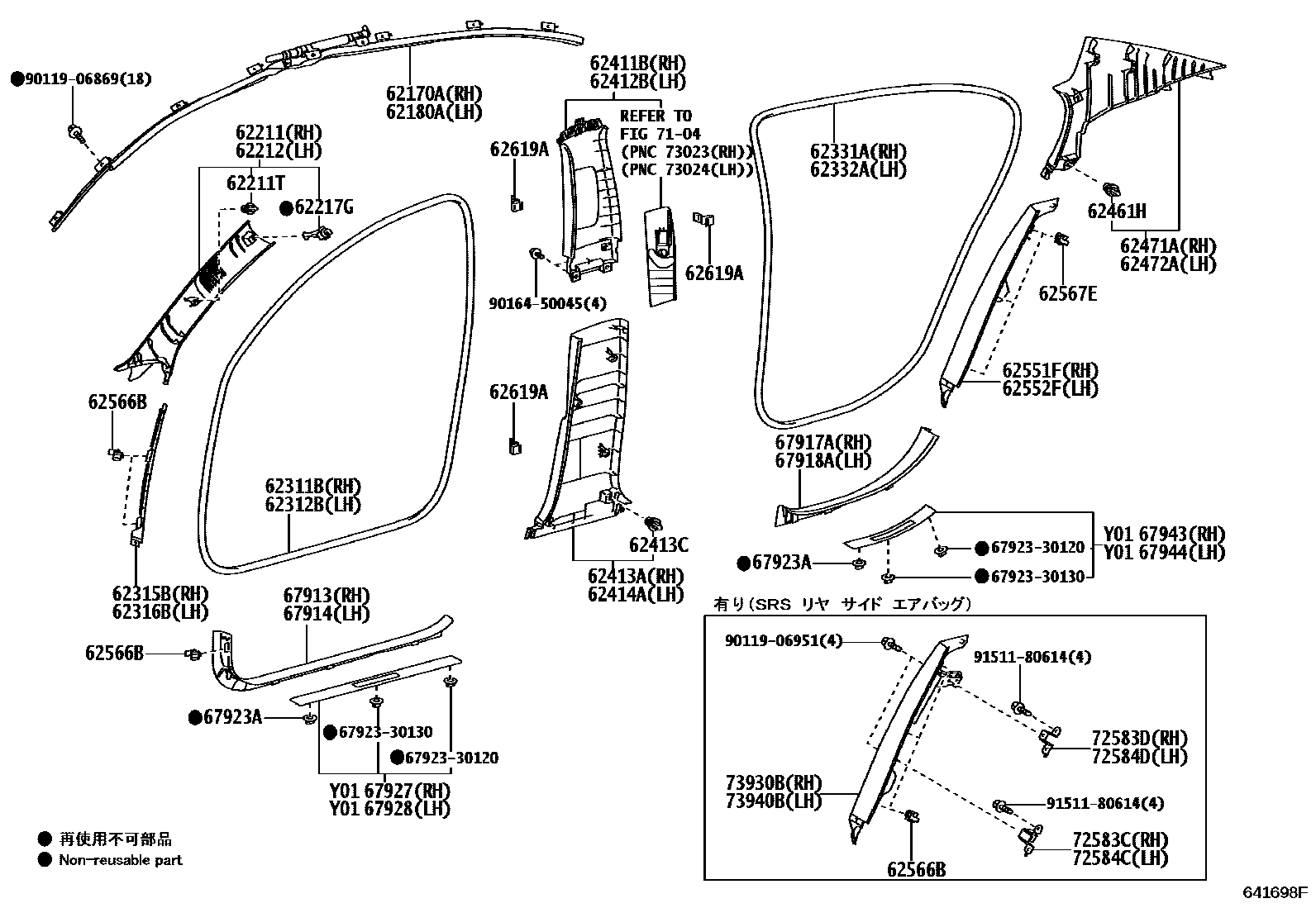

Parts diagram
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-30090i200508-200709
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-30090i200508-200709
62211GARNISH, FRONT PILLAR, RH
main62211-30440-A0i200508-200709
NEW IVORY,TRIM0#
main62211-30440-A1i200909-200912
IVORY,TRIM0#
main62211-30440-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62211-30440-B1i200709-200912
LT.GRAY,TRIM1#,2#
main62211-30500-A1i201001-201112
IVORY,TRIM0#
main62211-30500-B1i201001-201112
LT.GRAY,TRIM1#,2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161×2i200508-200709
62212GARNISH, FRONT PILLAR, LH
main62212-30450-A0i200709-200909
NEW IVORY,TRIM0#
main62212-30450-A1i200909-200912
IVORY,TRIM0#
main62212-30450-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62212-30450-B1i200709-200912
LT.GRAY,TRIM1#,2#
main62212-30510-A1i201001-201112
IVORY,TRIM0#
main62212-30510-B1i201001-201112
LT.GRAY,TRIM1#,2#
62217GCLIP, FRONT PILLAR GARNISH
main90950-08004×2i200508-200709
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-30240-C0i200508-200709
BLACK,TRIM0#,1#,28,29
main62311-30250-C0i200803-201112
BLACK,TRIM0#,1#,2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-30230-C0i200508-200709
BLACK,TRIM0#,1#,28,29
main62312-30240-C0i200803-201112
BLACK,TRIM0#,1#,2#
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-30100-A0i200508-200709
IVORY,TRIM0#
main62315-30100-A1i200909-201112
IVORY,TRIM0#
main62315-30100-B0i200508-200709
GRAY,TRIM1#
main62315-30100-B1i200709-201112
LT.GRAY,TRIM1#
main62315-30100-C0i200709-201112
BLACK,TRIM2#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-30090-A0i200508-200709
IVORY,TRIM0#
main62316-30090-A1i200909-201112
IVORY,TRIM0#
main62316-30090-B0i200508-200709
GRAY,TRIM1#
main62316-30090-B1i200709-201112
LT.GRAY,TRIM1#
main62316-30090-C0i200709-201112
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-30170-C0i200508-200709
BLACK,TRIM0#,1#,28,29
main62331-30180-C0i200803-201112
BLACK,TRIM0#,1#,2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-30170-C0i200508-200709
BLACK,TRIM0#,1#,28,29
main62332-30180-C0i200803-201112
BLACK,TRIM0#,1#,2#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-30410-A0i200508-200709
NEW IVORY,TRIM0#
main62411-30410-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62411-30410-B1i200709-200808
LT.GRAY,TRIM1#,2#
main62411-30450-A0i200809-200909
NEW IVORY,TRIM0#
main62411-30450-A1i200909-201112
IVORY,TRIM0#; IVORY,TRIM0#,26
main62411-30450-B0i200909-201112
LT.GRAY,TRIM1#,20,21,22,23,26
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-30410-A0i200508-200709
NEW IVORY,TRIM0#
main62412-30410-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62412-30410-B1i200709-200808
LT.GRAY,TRIM1#,2#
main62412-30450-A0i200809-200909
NEW IVORY,TRIM0#
main62412-30450-A1i200909-201112
IVORY,TRIM0#; IVORY,TRIM0#,26
main62412-30450-B0i200909-201112
LT.GRAY,TRIM1#,20,21,22,23,26
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-30210-A0i200508-200709
IVORY,TRIM0#
main62413-30210-B0i200508-200709
GRAY,TRIM1#
main62413-30210-C0i200508-200709
BLACK,TRIM2#
main62413-30211-A0i200709-200801
IVORY,TRIM0#
main62413-30211-B1i200709-200801
LT.GRAY,TRIM1#
main62413-30211-C0i200709-200801
BLACK,TRIM2#
main62413-30250-A0i200802-200909
IVORY,TRIM0#
main62413-30250-A1i200909-201112
IVORY,TRIM0#
main62413-30250-B0i200802-201112
LT.GRAY,TRIM1#
main62413-30250-C0i200802-201112
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×10i200508-200509
main90467-10167×2i200509-200709
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-30140-A0i200508-200709
IVORY,TRIM0#
main62414-30140-B0i200508-200709
GRAY,TRIM1#
main62414-30140-C0i200508-200709
BLACK,TRIM2#
main62414-30141-A0i200709-200801
IVORY,TRIM0#
main62414-30141-B1i200709-200801
LT.GRAY,TRIM1#
main62414-30141-C0i200709-200801
BLACK,TRIM2#
main62414-30180-A0i200802-200909
IVORY,TRIM0#
main62414-30180-A1i200909-201112
IVORY,TRIM0#
main62414-30180-B0i200802-201112
LT.GRAY,TRIM1#
main62414-30180-C0i200802-201112
BLACK,TRIM2#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-10167×8i200508-200709
62471AGARNISH, ROOF SIDE, INNER RH
main62471-30480-A0i200508-200709
NEW IVORY,TRIM0#
main62471-30480-A1i200909-200912
IVORY,TRIM0#
main62471-30480-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62471-30480-B1i200709-200912
LT.GRAY,TRIM1#,2#
main62471-30510-A1i201001-201112
IVORY,TRIM0#; IVORY,TRIM0#,26
main62471-30510-B1i201001-201112
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20,22,26
62472AGARNISH, ROOF SIDE, INNER LH
main62472-30450-A0i200709-200909
NEW IVORY,TRIM0#
main62472-30450-A1i200909-200912
IVORY,TRIM0#
main62472-30450-B0i200508-200709
NEW GRAY,TRIM1#,28,29
main62472-30450-B1i200709-200912
LT.GRAY,TRIM1#,2#
main62472-30480-A1i201001-201112
IVORY,TRIM0#; IVORY,TRIM0#,26
main62472-30480-B1i201001-201112
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,20,22,26
62551FGARNISH, REAR SEAT SIDE, RH
main62551-30260-A0i200709-200909
main62551-30260-A1i200909-200912
main62551-30260-B0i200508-200709
main62551-30260-B1supersedes 62551-30270-B1i200709-200912
main62551-30260-C0supersedes 62551-30270-C0i200709-200912
main62551-30270-A1i201001-201112
main62551-30270-B1i201001-201112
main62551-30270-C0i201001-201112
62552FGARNISH, REAR SEAT SIDE, LH
main62552-30250-A0i200709-200909
main62552-30250-A1i200909-200912
main62552-30250-B0i200508-200709
main62552-30250-B1supersedes 62552-30260-B1i200709-200912
main62552-30250-C0supersedes 62552-30260-C0i200709-200912
main62552-30260-A1i201001-201112
main62552-30260-B1i201001-201112
main62552-30260-C0i201001-201112
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-30010×6i200709
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62566-30010×6i200508-200709
62619APLATE, SIDE TRIM SET
main62619-30030×6i200709
67913PLATE, FRONT DOOR SCUFF, RH
main67913-30260-A0i200508-200709
IVORY,TRIM0#
main67913-30260-A1i200909-200912
IVORY,TRIM0#
main67913-30260-B0i200508-200709
GRAY,TRIM1#
main67913-30260-B1i200709-200912
LT.GRAY,TRIM1#
main67913-30260-C0i200709-200912
BLACK,TRIM2#
main67913-30270-A1i201001-201112
IVORY,TRIM0#
main67913-30270-B1i201001-201112
LT.GRAY,TRIM1#
main67913-30270-C0i201001-201112
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-30260-A0i200709-200909
IVORY,TRIM0#
main67914-30260-A1i200909-200912
IVORY,TRIM0#
main67914-30260-B0i200508-200709
GRAY,TRIM1#
main67914-30260-B1i200709-200912
LT.GRAY,TRIM1#
main67914-30260-C0i200709-200912
BLACK,TRIM2#
main67914-30270-A1i201001-201112
IVORY,TRIM0#
main67914-30270-B1i201001-201112
LT.GRAY,TRIM1#
main67914-30270-C0i201001-201112
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
main67917-30210-A0i200508-200709
IVORY,TRIM0#
main67917-30210-A1i200909-200912
IVORY,TRIM0#
main67917-30210-B0i200508-200709
GRAY,TRIM1#
main67917-30210-B1i200709-200912
LT.GRAY,TRIM1#
main67917-30210-C0i200508-200709
BLACK,TRIM28,29
main67917-30220-A1i201001-201112
IVORY,TRIM0#
main67917-30220-B1i201001-201112
LT.GRAY,TRIM1#
main67917-30220-C0i201001-201112
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-30190-A0i200709-200909
IVORY,TRIM0#
main67918-30190-A1i200909-200912
IVORY,TRIM0#
main67918-30190-B0i200508-200709
GRAY,TRIM1#
main67918-30190-B1i200709-200912
LT.GRAY,TRIM1#
main67918-30190-C0i200709-200912
BLACK,TRIM2#
main67918-30200-A1i201001-201112
IVORY,TRIM0#
main67918-30200-B1i201001-201112
LT.GRAY,TRIM1#
main67918-30200-C0i201001-201112
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30130×4i200508-200709
67927ORNAMENT, FRONT DOOR SCUFF, RH
main67927-30110i200508-200709
main67927-30180i201007-201108
67928ORNAMENT, FRONT DOOR SCUFF, LH
main67927-30110i200508-200709
main67927-30180i201007-201108
67943ORNAMENT, REAR DOOR SCUFF, RH
main67943-30100i200709
main67943-30130i201007-201108
67944ORNAMENT, REAR DOOR SCUFF, LH
main67944-30100i200508-200709
main67944-30130i201007-201108
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
72583CBRACKET, REAR SEAT SIDE GARNISH, NO.1 RH
main72583-30050i200508-200709
72583DBRACKET, REAR SEAT SIDE GARNISH, NO.2 RH
main72583-30060i200508-200709
72584CBRACKET, REAR SEAT SIDE GARNISH, NO.1 LH
main72584-30020i200508-200709
72584DBRACKET, REAR SEAT SIDE GARNISH, NO.2 LH
main72584-30030i200508-200709
73930BAIRBAG, REAR SEAT, RH
main73930-30010-A0i200508-200709
main73930-30010-B0i200508-200709
main73930-30010-C0i200508-200709
main73930-30020-A0i200709-200909
main73930-30020-A1i200909-201112
main73930-30020-B1i200709-201112
main73930-30020-C0i200709-201112
73940BAIRBAG, REAR SEAT, LH
main73940-30010-A0i200508-200709
main73940-30010-B0i200508-200709
main73940-30010-C0i200508-200709
main73940-30020-A0i200709-200909
main73940-30020-A1i200909-201112
main73940-30020-B1i200709-201112
main73940-30020-C0i200709-201112
6792330120CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-30120
6792330130CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-30130
9011906869
main90119-06869
9011906951
main90119-06951
9016450045
main90164-50045
9151180614
main91511-80614

47 parts on this diagram · 1 diagram in section
