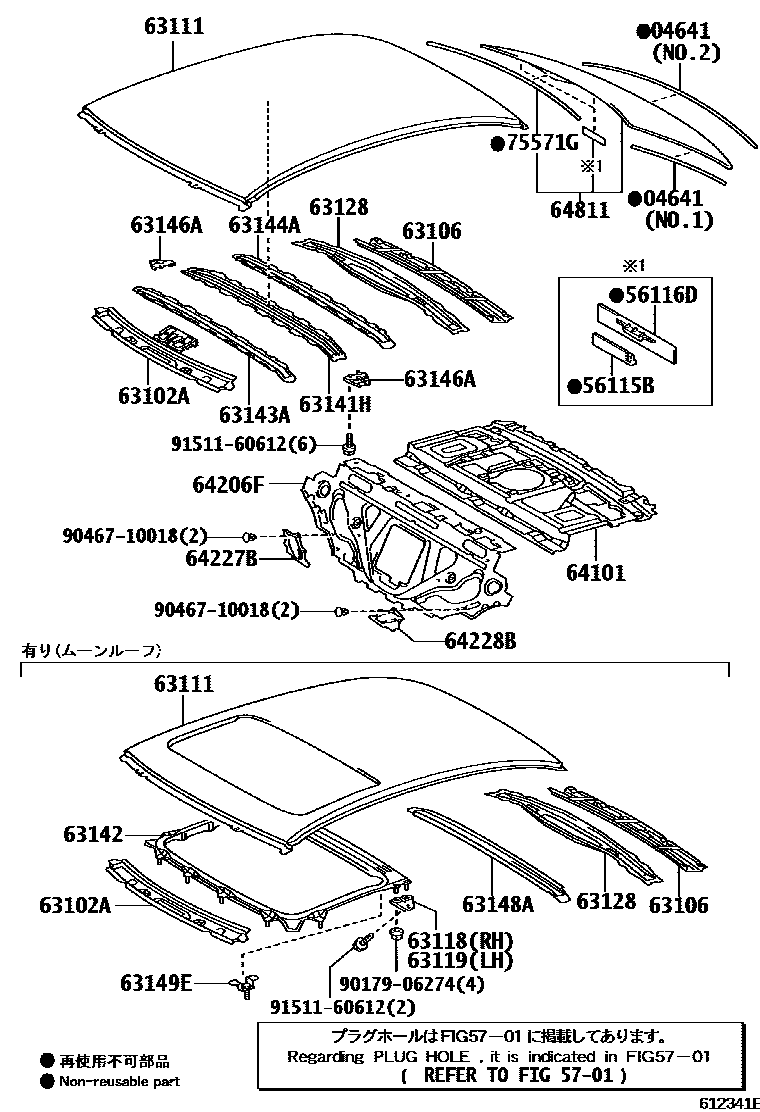

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
5701HOLE PLUG
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63128REINFORCEMENT, ROOF PANEL, NO.6
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143AREINFORCEMENT, ROOF PANEL
63144AREINFORCEMENT, ROOF PANEL, NO.4
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2
64101PANEL SUB-ASSY, UPPER BACK
64206FPANEL SUB-ASSY, ROOM PARTITION
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64811GLASS, BACK WINDOW
75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
9017906274
main90179-06274
9046710018
main90467-10018
9151160612
main91511-60612
26 parts on this diagram · 2 diagrams in section
