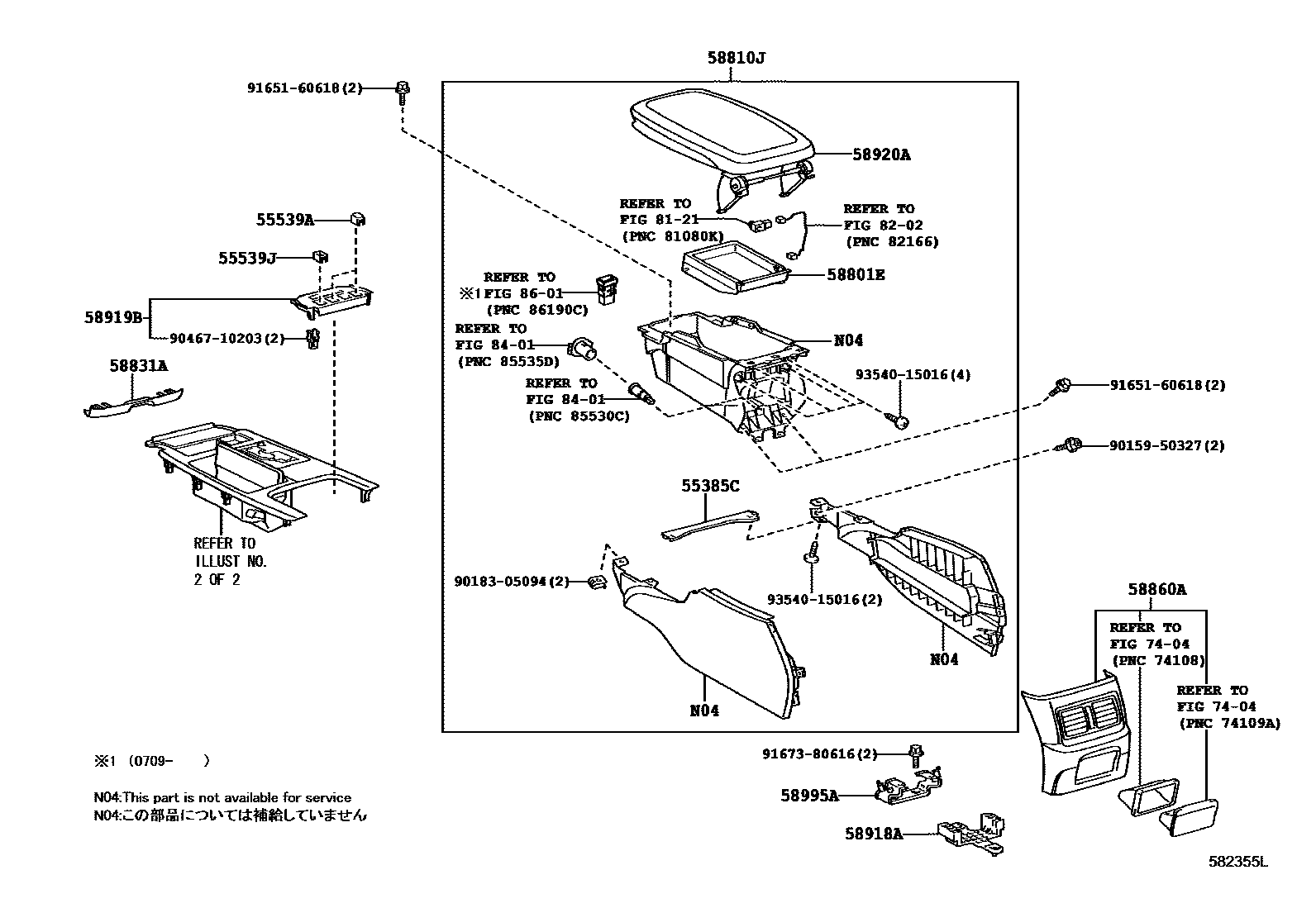

CONSOLE BOX & BRACKET

0001 1 0002 1

55385CBRACKET, CONSOLE BOX MOUNTING, NO.5

main55385-30080iGRS19#,UZS190200508-200608

sub55385-30081

main55385-30081iGRS19#,UZS190200609-200709

55539ACOVER, SPARE SWITCH HOLE

main55539-30210-C0iGRS19#200508-200709

BLACK

55539JCOVER, SPARE SWITCH HOLE

main55539-30250iURS190200709

main55539-30250iURS190200709

main55539-30250iGRS19#,UZS190200508-200709

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-30270iGRS19#,UZS190200508-200704

sub58801-30271

main58801-30271iGRS19#,UZS190200705-200709

58810JBOX ASSY, CONSOLE

main58810-30A50-C1iGRS196200508-200704

BLACK,TRIM2#

sub58810-30A51

main58810-30A51-C1iGRS196200705-200709

BLACK,TRIM2#

main58810-30A70-C0iGRS191,UZS190200508-200704

BLACK,TRIM2#

sub58810-30A72

main58810-30A72-C0iGRS191,UZS190200705-200709

BLACK,TRIM2#

main58810-30B90-A0iGRS19#,URS190200709-200807

IVORY,TRIM0#

sub58810-30B91

main58810-30B90-B0iGRS19#,URS190200709-200807

LT.GRAY,TRIM1#

sub58810-30B91

main58810-30B90-C0iGRS19#,URS190200709-200807

BLACK,TRIM2#

sub58810-30B91

main58810-30B91-A0iGRS19#,URS190200808-200909

IVORY,TRIM0#

main58810-30B91-B0iGRS19#,URS190200808-200909

LT.GRAY,TRIM1#

main58810-30B91-C0iGRS19#,URS190200808-200909

BLACK,TRIM2#

main58810-30B92-A2iGRS19#,URS190200909-201112

IVORY,TRIM0#

main58810-30B92-B1iGRS19#,URS190200909-201112

LT.GRAY,TRIM1#

main58810-30B92-C1iGRS19#,URS190200909-201112

BLACK,TRIM2#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30190-C0iGRS19#,URS190200709-201112

BLACK,TRIM1#,2#

main58831-30190-C0iGRS19#,UZS190200508-200709

BLACK,TRIM1#,28,29

main58831-30190-E0iGRS19#,URS190200508-201112

ORCHID BROWN,TRIM0#

58860AREGISTER ASSY, CONSOLE BOX

main58860-30040-A0iGRS19#,UZS190200508-200709

IVORY,TRIM0#

sub58860-30041

main58860-30040-B0iGRS19#,UZS190200508-200709

GRAY,TRIM1#

sub58860-30041

main58860-30040-C0iGRS19#,UZS190200508-200709

BLACK,TRIM2#

sub58860-30041

main58860-30041-A0iGRS19#,URS190200709-200909

IVORY,TRIM0#

sub58860-30041

main58860-30041-A1iGRS19#,URS190200909-201112

IVORY,TRIM0#

sub58860-30041

main58860-30041-B1iGRS19#,URS190200709-201112

LT.GRAY,TRIM1#

sub58860-30041

main58860-30041-C0iGRS19#,URS190200709-201112

BLACK,TRIM2#

sub58860-30041

58918ABRACKET, BOX SUPPORT

main58918-30070iGRS19#,URS190200508-200709

58919BPLATE, CONSOLE BOX

main58919-30040iGRS19#,UZS190200508-200709

58920AARMREST ASSY, REAR CONSOLE

main58920-30170-C0iGRS191,UZS190200508-200709

BLACK,TRIM2#

sub58920-30171

main58920-30171-A0iGRS19#,URS190200709-200807

IVORY,TRIM0#

sub58920-30172

main58920-30171-B0iGRS19#,URS190200709-200807

LT.GRAY,TRIM1#

sub58920-30172

main58920-30171-C0iGRS19#,URS190200709-200807

BLACK,TRIM2#

sub58920-30172

main58920-30172-A0iGRS19#,URS190200808-200909

IVORY,TRIM0#

sub58920-30172

main58920-30172-A2iGRS19#,URS190200909-201112

IVORY,TRIM0#

sub58920-30172

main58920-30172-B0iGRS19#,URS190200808-200909

LT.GRAY,TRIM1#

sub58920-30172

main58920-30172-B1iGRS19#,URS190200909-201112

LT.GRAY,TRIM1#

sub58920-30172

main58920-30172-C0iGRS19#,URS190200808-200909

BLACK,TRIM2#

sub58920-30172

main58920-30172-C1iGRS19#,URS190200909-201112

BLACK,TRIM2#

sub58920-30172

main58920-30190-C0iGRS196200508-200709

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30210iGRS19#,UZS190200508-200709

7404

8121

8202

8401

8601

9015950327

main90159-50327

9018305094

main90183-05094

9046710203

main90467-10203

9165160618

main91651-60618

9167380616

main91673-80616

9354015016

main93540-15016

22 parts on this diagram · 2 diagrams in section
