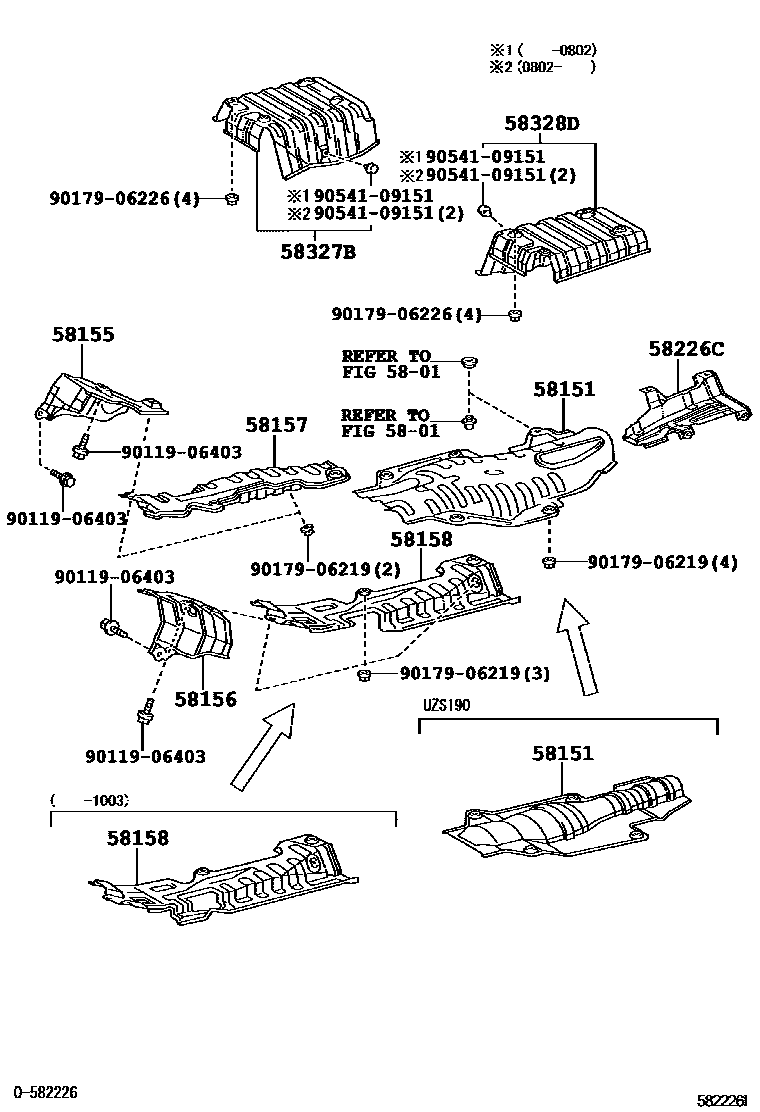

FLOOR INSULATOR

0001 1 0002 1

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30150200508-200709

main58151-30160200508-200709

main58151-30170200508-200510

main58151-30171200511-200709

main58151-30190200709

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040200508-200709

main58155-30050200709

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080200508-200709

main58156-30090200508-200709

main58156-30120200709

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071200508-201003

main58157-30072201004-201110

main58157-30073201111-201112

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061200508-201003

main58158-30062201004-201112

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30040200508-200709

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30052200508-200802

main58327-30053200802

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30033200508-200802

main58328-30034200802

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

13 parts on this diagram · 2 diagrams in section
