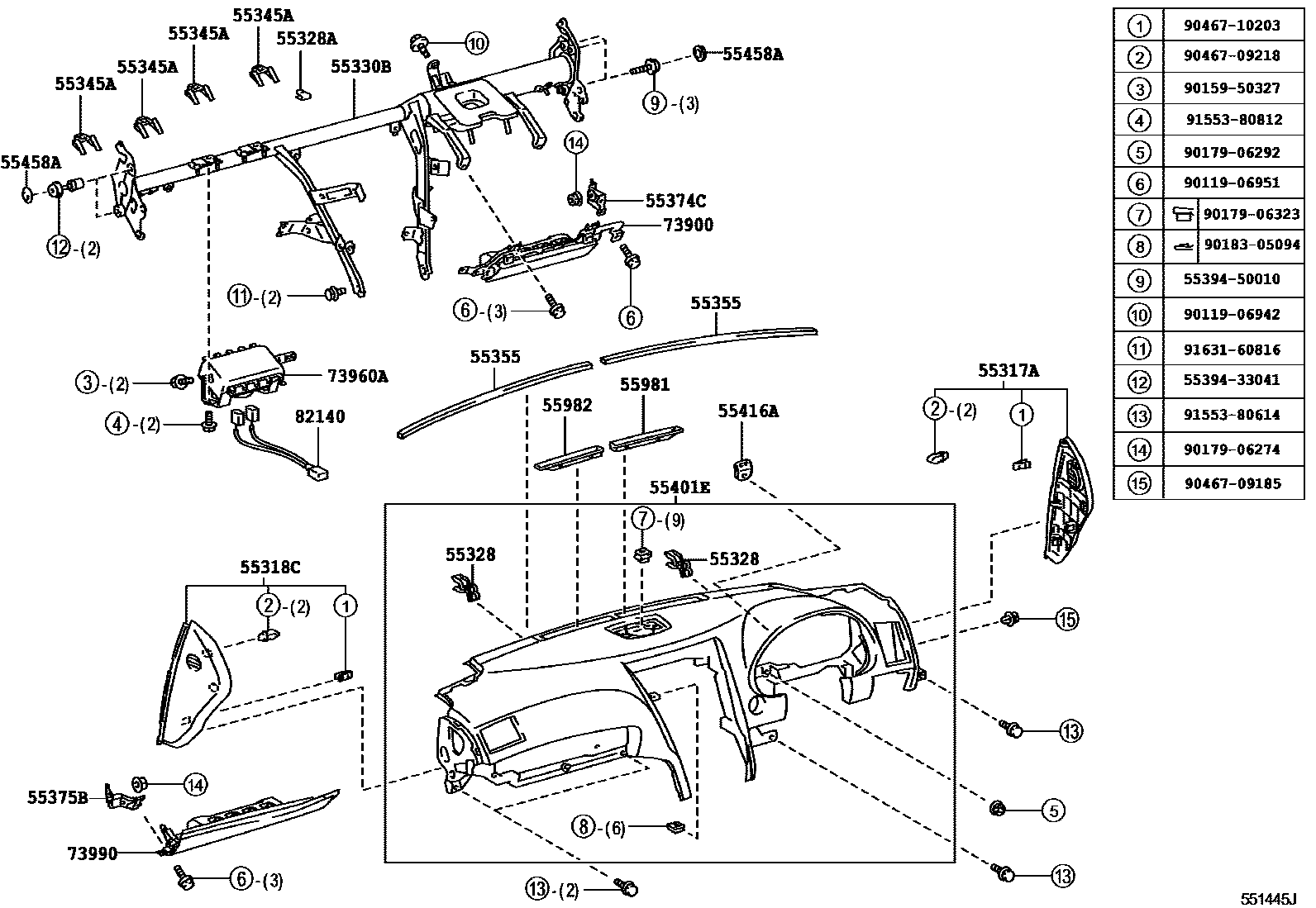

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1���������� 0005 1��������� 0006 1����� 0007 1����������

55317APANEL, INSTRUMENT SIDE, RH

main55317-30050-C0iGRS19#,UZS190200508-200709

BLACK,TRIM1#,28,29

main55317-30050-E0iGRS19#,UZS190200508-200709

ORCHID BROWN,TRIM0#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30070-C0iGRS19#,URS190200709-201112

BLACK,TRIM1#,2#

main55318-30070-E0iGRS19#,UZS190200508-200709

ORCHID BROWN,TRIM0#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140×2iGRS19#,UZS190200508-200709

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160iGRS19#,UZS190200508-200708

main55328-48110iGRS19#,URS190201010

main55328-50170iGRS19#,UZS190200708-200709

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30350iGRS191,UZS190200508-200709

main55330-30360iGRS196200508-200709

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30050×4iGRS19#,UZS190200508-200708

main55345-30060×4iGRS19#,URS190200709

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060×2iGRS19#,UZS190200508-200709

main55355-30100×2iGRS19#,URS190200804

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30260iGRS19#,UZS190200508-200709

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30160iGRS19#,UZS190200508-200709

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30720-C0iGRS19#,UZS190200508-200709

BLACK,TRIM1#,28,29

main55401-30720-E0iGRS19#,UZS190200508-200709

ORCHID BROWN,TRIM0#

main55401-30750-C0iGRS19#,URS190200709-201112

BLACK,TRIM1#,2#

main55401-30750-E0iGRS19#,URS190200709-201112

ORCHID BROWN,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iGRS19#,UZS190200508-200709

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iGRS19#,URS190200709

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30140iGRS19#,UZS190200508-200709

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30080iGRS19#,UZS190200508-200709

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-30030-A0iGRS19#,URS190200709-200909

IVORY,TRIM0#

main73900-30030-A1iGRS19#,URS190200909-201112

IVORY,TRIM0#

main73900-30030-B0iGRS19#,UZS190200508-200709

GRAY,TRIM1#

main73900-30030-B1iGRS19#,URS190200709-201112

LT.GRAY,TRIM1#

main73900-30030-C0iGRS19#,URS190200709-201112

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30080iGRS19#,UZS190200508-200709

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-30030-A0iGRS19#,URS190200709-200909

IVORY,TRIM0#

main73990-30030-A1iGRS19#,URS190200909-201112

IVORY,TRIM0#

main73990-30030-B0iGRS19#,UZS190200508-200709

GRAY,TRIM1#

main73990-30030-B1iGRS19#,URS190200709-201112

LT.GRAY,TRIM1#

main73990-30030-C0iGRS19#,URS190200709-201112

BLACK,TRIM2#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-30020iGRS19#,UZS190200508-200709

5539433041BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-33041

5539450010BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-50010

9011906942

main90119-06942

9011906951

main90119-06951

9015950327

main90159-50327

9017906274

main90179-06274

9017906292

main90179-06292

9017906323

main90179-06323

9018305094

main90183-05094

9046709185

main90467-09185

9046709218

main90467-09218

9046710203

main90467-10203

9155380614

main91553-80614

9155380812

main91553-80812

9163160816

main91631-60816

33 parts on this diagram · 7 diagrams in section
