REAR BUMPER & BUMPER STAY

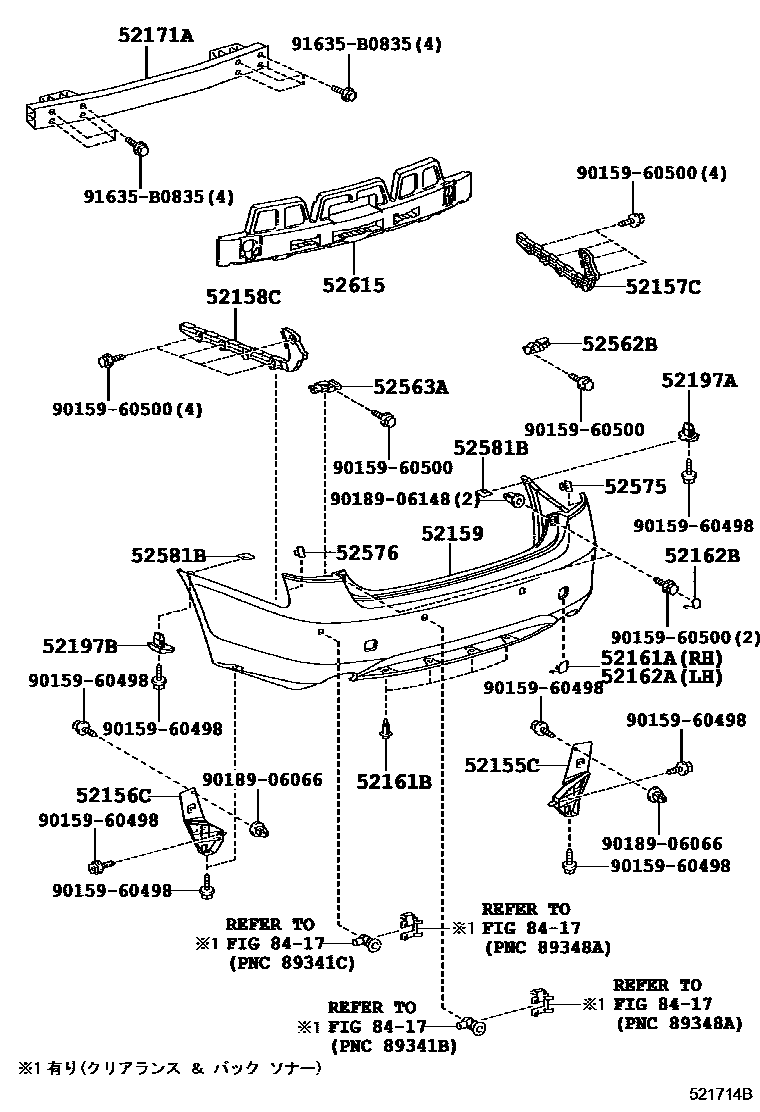

Parts diagram
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
main52155-30080i200508-200709
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
main52156-30050i200508-200709
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-30061i200508-200709
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-30081i200508-200709
52159COVER, REAR BUMPER
main52159-30431-A0supersedes 52159-30421-A0i200508-200607
main52159-30431-A1supersedes 52159-30421-A1i200508-200709
main52159-30431-A2supersedes 52159-30421-A2i200607-200709
main52159-30431-B0supersedes 52159-30421-B0i200508-200607
main52159-30431-B1supersedes 52159-30421-B1i200508-200709
main52159-30431-B2supersedes 52159-30421-B2i200607-200709
main52159-30431-C0supersedes 52159-30421-C0i200508-200607
main52159-30431-C1supersedes 52159-30421-C1i200607-200709
main52159-30431-D0supersedes 52159-30421-D0i200508-200709
main52159-30431-E0supersedes 52159-30421-E0i200508-200709
main52159-30431-G0supersedes 52159-30421-G0i200508-200607
main52159-30431-G1supersedes 52159-30421-G1i200607-200709
main52159-30431-J0supersedes 52159-30421-J0i200508-200607
main52159-30431-J1supersedes 52159-30421-J1i200607-200709
main52159-30431-J2supersedes 52159-30421-J2i200607-200709
main52159-30431-K0supersedes 52159-30421-K0i200508-200709
main52159-30500-C1i200804-200809
main52159-30510-A0supersedes 52159-30500-A0i200709-200904
main52159-30510-B0supersedes 52159-30500-B0i200709-200904
main52159-30510-B1supersedes 52159-30500-B1i200709-200904
main52159-30510-B2supersedes 52159-30500-B2i200709-200904
main52159-30510-C0supersedes 52159-30500-C0i200709-200904
main52159-30510-C1supersedes 52159-30500-C1i200709-200904
main52159-30510-D0supersedes 52159-30500-D0i200709-200904
main52159-30510-E0supersedes 52159-30500-E0i200709-200904
main52159-30510-G0supersedes 52159-30500-G0i200709-200904
main52159-30510-J0supersedes 52159-30500-J0i200709-200904
main52159-30510-J1supersedes 52159-30500-J1i200709-200904
main52159-30511-A0supersedes 52159-30501-A0i200905-200909
main52159-30511-B0supersedes 52159-30501-B0i200905-200909
main52159-30511-B1supersedes 52159-30501-B1i200905-200909
main52159-30511-B2supersedes 52159-30501-B2i200905-200909
main52159-30511-C0supersedes 52159-30501-C0i200905-200909
main52159-30511-D0supersedes 52159-30501-D0i200905-200909
main52159-30511-E0supersedes 52159-30501-E0i200905-200909
main52159-30511-G0supersedes 52159-30501-G0i200905-200909
main52159-30511-J0supersedes 52159-30501-J0i200905-200909
main52159-30511-J1supersedes 52159-30501-J1i200905-200909
main52159-30946-A0supersedes 52159-30945-A0i200909-201112
main52159-30946-B0supersedes 52159-30945-B0i200909-201112
main52159-30946-B1supersedes 52159-30945-B1i200909-201112
main52159-30946-B2supersedes 52159-30945-B2i200909-201112
main52159-30946-C0supersedes 52159-30945-C0i200909-201112
main52159-30946-C2supersedes 52159-30945-C2i201007-201112
main52159-30946-D0supersedes 52159-30945-D0i200909-201112
main52159-30946-E0supersedes 52159-30945-E0i200909-201112
main52159-30946-G0supersedes 52159-30945-G0i200909-201112
main52159-30946-J0supersedes 52159-30945-J0i200909-201007
main52159-30946-J1supersedes 52159-30945-J1i200909-201112
52161APIECE, REAR BUMPER, RH
main52161-30110-A0i200508-200607
WHITE PEARL CS.,062
main52161-30110-A1i200508-200709
BLUISH PEARL CS.,074
main52161-30110-A2i200607-200709
WHITE PEARL CS.,077
main52161-30110-B0i200508-200607
DK.GRAY MC.,1E0
main52161-30110-B1i200508-200709
PREMIUM SILVER,1F2
main52161-30110-B2i200607-200709
DK.GRAY MC.,1G0
main52161-30110-C0i200508-200607
BLACK,202
main52161-30110-C1i200607-200709
BLACK,212
main52161-30110-D0i200508-200709
RED MC.CS.,3R1
main52161-30110-E0i200508-200709
PREMIUM BEIGE,4S7
main52161-30110-G0i200508-200607
OLIVE M.M.,6T7
main52161-30110-G1i200607-200709
JADE GREEN ME.,6V0
main52161-30110-J0i200508-200607
DARK BLUE MC.,8P8
main52161-30110-J1i200607-200709
PREMIUM LT.BLUE.,8T9
main52161-30110-J2i200607-200709
DK.BLUE MC. CC.,8U0
main52161-30110-K0i200508-200709
DK.PURPLE M.M.,9AB
main52161-30120-A0i200709-201112
WHITE PEARL CS.,077
main52161-30120-B0i200709-201112
PREMIUM SILVER,1F2
main52161-30120-B1i200709-201112
DK.GRAY MC.,1G0
main52161-30120-B2i200709-201112
FROSTY PEARL MC.,1G5
main52161-30120-C0i200709-201112
BLACK,212
main52161-30120-C1i200709-200909
BLACK OPAL MC.,214
main52161-30120-C2i201007-201112
STARLIGHT BLACK GF.,217
main52161-30120-D0i200709-201112
RED MC.CS.,3R1
main52161-30120-E0i200709-200909
BEIGE ME.,4T1
main52161-30120-E1i200909-201112
SLEEK ECRU ME.,4U7
main52161-30120-G0i200709-200909
JADE GREEN ME.,6V0
main52161-30120-G1i200909-201112
DEEP PERIDOT MC.,6V6
main52161-30120-J0i200709-201007
PREMIUM LT.BLUE.,8T9
main52161-30120-J1i200709-200909
DK.BLUE MC. CC.,8U0
main52161-30120-J2i200909-201112
LAPIS LAZULI MC.,8V3
52161BPIECE, REAR BUMPER
main52161-16010×4i200709
52162APIECE, REAR BUMPER, LH
main52162-30080-A0i200508-200607
WHITE PEARL CS.,062
main52162-30080-A1i200508-200709
BLUISH PEARL CS.,074
main52162-30080-A2i200607-200709
WHITE PEARL CS.,077
main52162-30080-B0i200508-200607
DK.GRAY MC.,1E0
main52162-30080-B1i200508-200709
PREMIUM SILVER,1F2
main52162-30080-B2i200607-200709
DK.GRAY MC.,1G0
main52162-30080-C0i200508-200607
BLACK,202
main52162-30080-C1i200607-200709
BLACK,212
main52162-30080-D0i200508-200709
RED MC.CS.,3R1
main52162-30080-E0i200508-200709
PREMIUM BEIGE,4S7
main52162-30080-G0i200508-200607
OLIVE M.M.,6T7
main52162-30080-G1i200607-200709
JADE GREEN ME.,6V0
main52162-30080-J0i200508-200607
DARK BLUE MC.,8P8
main52162-30080-J1i200607-200709
PREMIUM LT.BLUE.,8T9
main52162-30080-J2i200607-200709
DK.BLUE MC. CC.,8U0
main52162-30080-K0i200508-200709
DK.PURPLE M.M.,9AB
main52162-30100-A0i200709-201112
WHITE PEARL CS.,077
main52162-30100-B0i200709-201112
PREMIUM SILVER,1F2
main52162-30100-B1i200709-201112
DK.GRAY MC.,1G0
main52162-30100-B2i200709-201112
FROSTY PEARL MC.,1G5
main52162-30100-C0i200709-201112
BLACK,212
main52162-30100-C1i200709-200909
BLACK OPAL MC.,214
main52162-30100-C2i201007-201112
STARLIGHT BLACK GF.,217
main52162-30100-D0i200709-201112
RED MC.CS.,3R1
main52162-30100-E0i200709-200909
BEIGE ME.,4T1
main52162-30100-E1i200909-201112
SLEEK ECRU ME.,4U7
main52162-30100-G0i200709-200909
JADE GREEN ME.,6V0
main52162-30100-G1i200909-201112
DEEP PERIDOT MC.,6V6
main52162-30100-J0i200709-201007
PREMIUM LT.BLUE.,8T9
main52162-30100-J1i200709-200909
DK.BLUE MC. CC.,8U0
main52162-30100-J2i200909-201112
LAPIS LAZULI MC.,8V3
52162BPLATE, REAR BUMPER, NO.1
main52162-30110-A0×2i200508-200607
WHITE PEARL CS.,062
main52162-30110-A1×2i200508-200709
BLUISH PEARL CS.,074
main52162-30110-A2×2i200607-200709
WHITE PEARL CS.,077
main52162-30110-B0×2i200508-200607
DK.GRAY MC.,1E0
main52162-30110-B1×2i200508-200709
PREMIUM SILVER,1F2
main52162-30110-B2×2i200709-201112
DK.GRAY MC.,1G0
main52162-30110-B4×2i200709-201112
FROSTY PEARL MC.,1G5
main52162-30110-C0×2i200508-200607
BLACK,202
main52162-30110-C1×2i200709-201112
BLACK,212
main52162-30110-C2×2i200709-200909
BLACK OPAL MC.,214
main52162-30110-C3×2i201007-201112
STARLIGHT BLACK GF.,217
main52162-30110-D0×2i200709-201112
RED MC.CS.,3R1
main52162-30110-E0×2i200508-200709
PREMIUM BEIGE,4S7
main52162-30110-E2×2i200709-200909
BEIGE ME.,4T1
main52162-30110-E4×2i200909-201112
SLEEK ECRU ME.,4U7
main52162-30110-G0×2i200508-200607
OLIVE M.M.,6T7
main52162-30110-G1×2i200709-200909
JADE GREEN ME.,6V0
main52162-30110-G2×2i200909-201112
DEEP PERIDOT MC.,6V6
main52162-30110-J0×2i200508-200607
DARK BLUE MC.,8P8
main52162-30110-J1×2i200607-200709
PREMIUM LT.BLUE.,8T9
main52162-30110-J2×2i200607-200709
DK.BLUE MC. CC.,8U0
main52162-30110-J4×2i200909-201112
LAPIS LAZULI MC.,8V3
main52162-30110-K0×2i200508-200709
DK.PURPLE M.M.,9AB
52171AREINFORCEMENT, REAR BUMPER, NO.1
main52023-30290i200508-200709
52197ABRACKET, REAR BUMPER SEAL, RH
main52197-30040i200508-200709
52197BBRACKET, REAR BUMPER SEAL, LH
main52197-30040i200508-200709
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-30120i200508-200709
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-30070i200508-200709
52575RETAINER, REAR BUMPER SIDE, RH
main52575-30180i200508-200709
52576RETAINER, REAR BUMPER SIDE, LH
main52575-30180i200508-200709
52581BPROTECTOR, REAR BUMPER
main52581-30060×2i200508-200709
52615ABSORBER, REAR BUMPER ENERGY
main52615-30260i200508-200709
main52615-30261i200909
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
9015960498
main90159-60498
9015960500
main90159-60500
9018906066
main90189-06066
9018906148
main90189-06148
91635B0835
main91635-B0835

24 parts on this diagram · 2 diagrams in section
