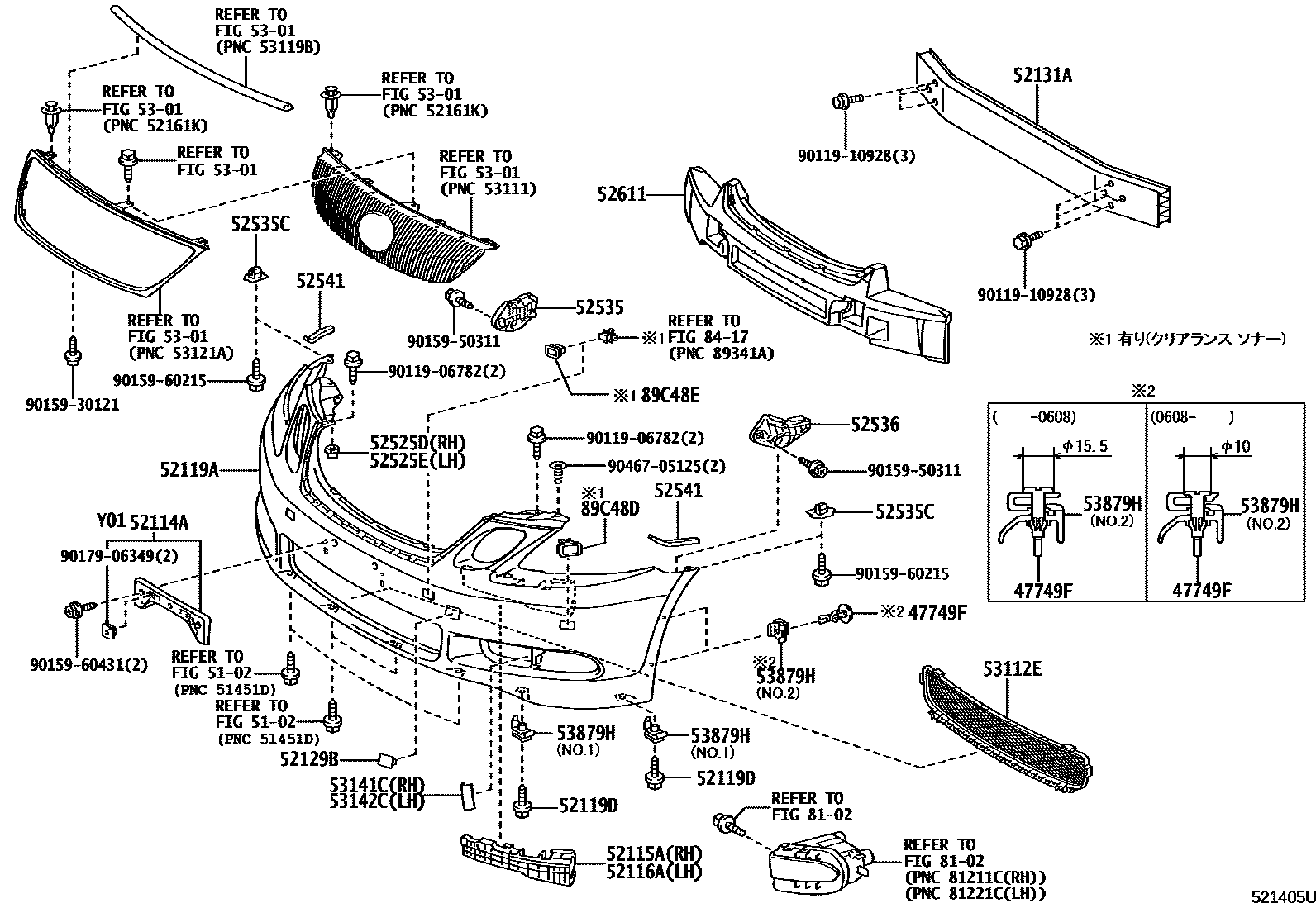

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52119DSCREW, NO.1
52129BCOVER, FRONT BUMPER, LOWER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
52131AREINFORCEMENT, FRONT BUMPER
52525DRETAINER, FRONT BUMPER BRACKET, RH
52525ERETAINER, FRONT BUMPER BRACKET, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5301
53112EGRILLE, RADIATOR, LOWER NO.1
53141CGARNISH, RADIATOR GRILLE
53142CGARNISH, RADIATOR GRILLE, NO.2
53879HRETAINER, FRONT FENDER LINER
8102
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
9011906782
main90119-06782
9011910928
main90119-10928
9015930121
main90159-30121
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9017906349
main90179-06349
9046705125
main90467-05125
33 parts on this diagram · 2 diagrams in section
