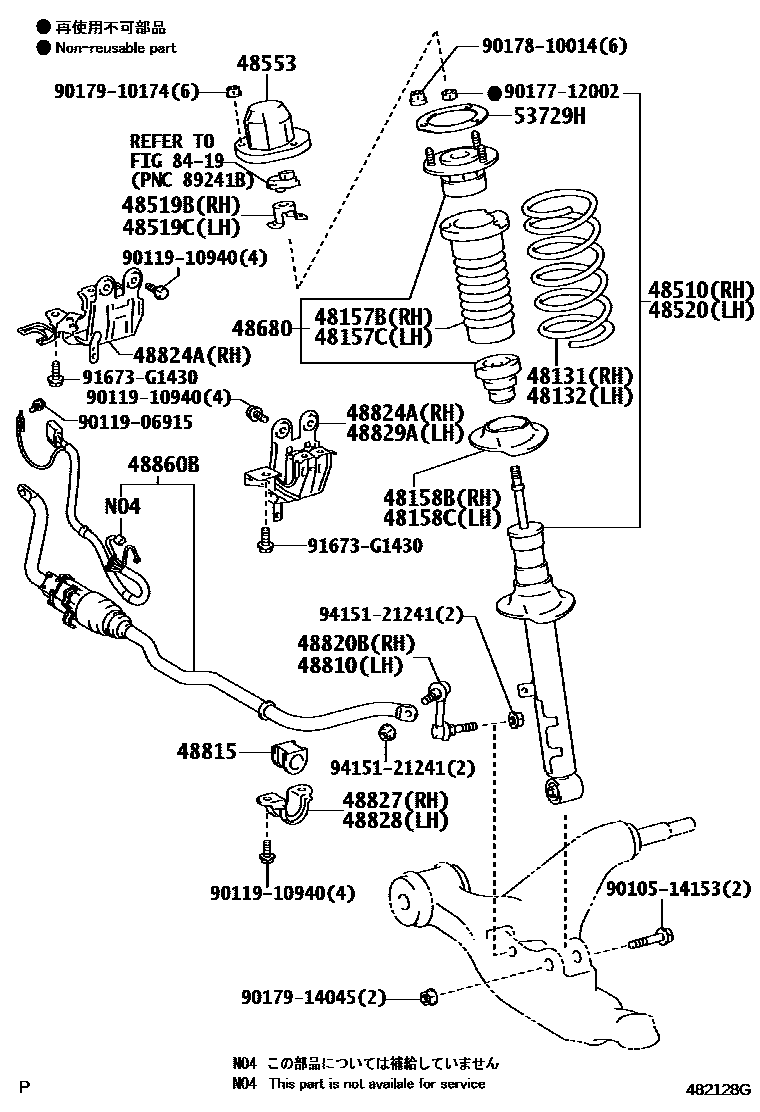

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
48553CAP, SHOCK ABSORBER, UPPER
48680SUPPORT ASSY, FRONT SUSPENSION
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48860BACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
8419ELECTRONIC MODULATED SUSPENSION
9010514153
main90105-14153
9011906915
main90119-06915
9011910940
main90119-10940
9017712002
main90177-12002
9017810014
main90178-10014
9017910174
main90179-10174
9017914045
main90179-14045
91673G1430
main91673-G1430
9415121241
main94151-21241
31 parts on this diagram · 4 diagrams in section
