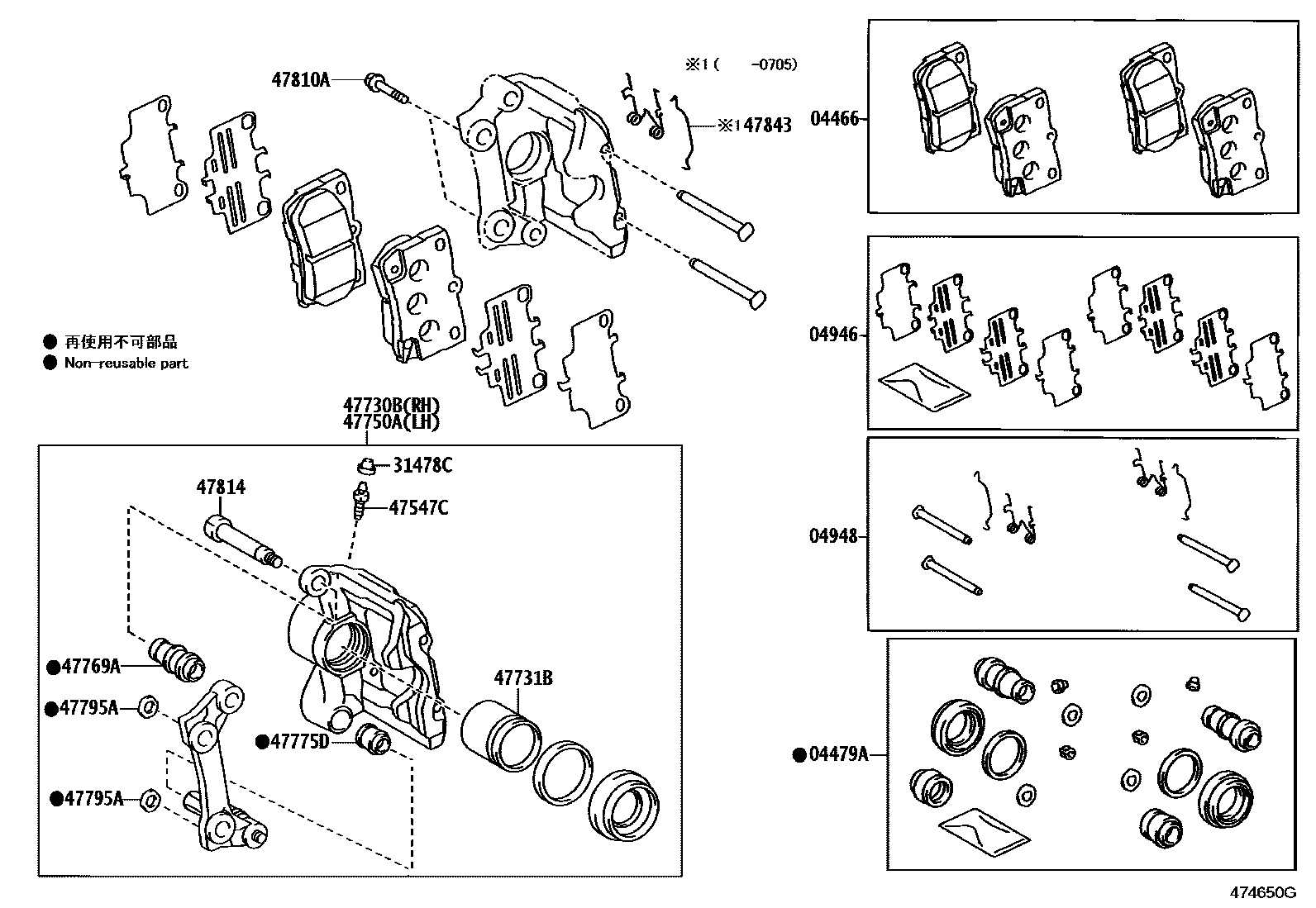

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRS19#,URS190200508-201112

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iGRS19#,UZS190200508-200511

main04479-22170iGRS19#,URS190201104

main04479-61020iGRS19#,UZS190200606-200707

main04479-61040iGRS19#,UZS190200707-201104

main04479-68030iGRS19#,UZS190200511-200606

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iGRS19#,UZS190200508-200709

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGRS19#,UZS190200508-200705

main04948-30210iGRS19#,UZS190200705-200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRS19#,UZS190200508-200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGRS19#,UZS190200508-200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iGRS19#,UZS190200508-200511

main47830-22221iGRS19#,URS190200511-200709

47731BPISTON, REAR DISC BRAKE

main47831-22220iGRS19#,UZS190200508-200709

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iGRS19#,UZS190200508-200511

main47850-22221iGRS19#,UZS190200511-200709

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRS19#,UZS190200508-200709

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341iGRS19#,UZS190200508-200709

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRS19#,UZS190200508-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRS19#,UZS190200508-201112

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRS19#,UZS190200508-200709

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300iGRS19#,UZS190200508-200705

15 parts on this diagram · 1 diagram in section
