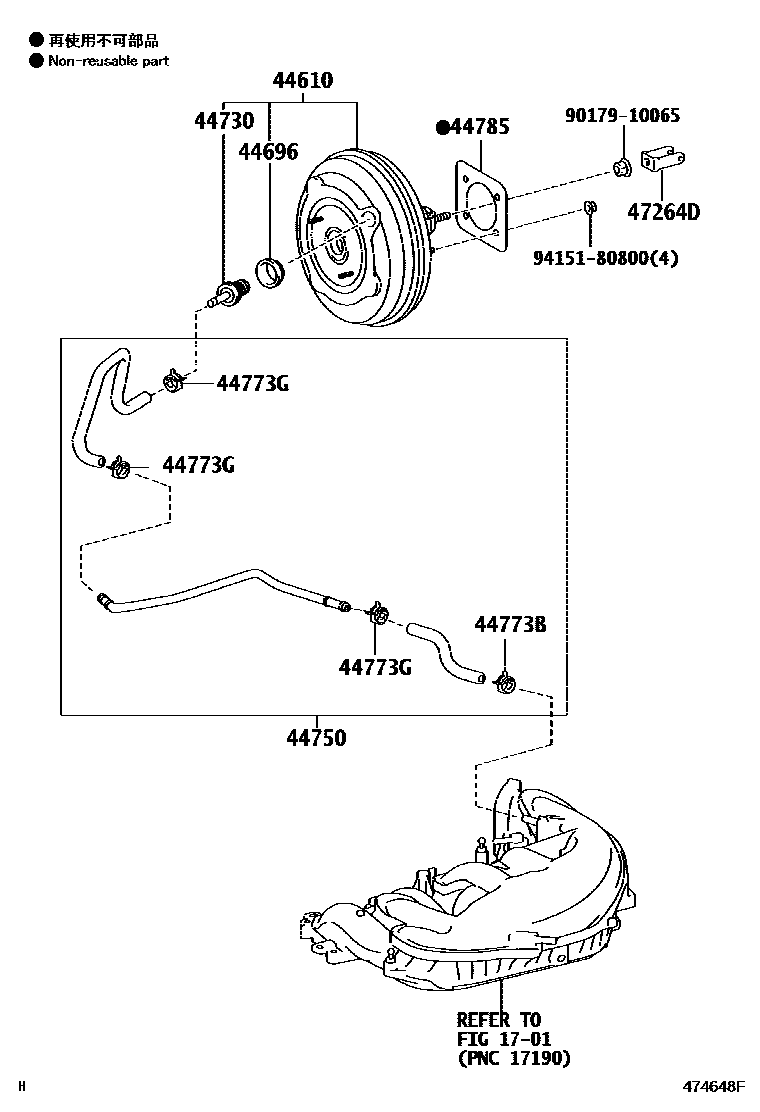

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-30A90iGRS19#200508-200709

44696GROMMET, CHECK VALVE

main90480-24015iGRS19#200508-200709

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iGRS19#200508-200709

44750HOSE ASSY, VACUUM

main44750-30A40iGRS19#200508-200709

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iGRS19#200508-200709

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×3iGRS19#200508-200709

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS19#200508-200709

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGRS19#200508-200709

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
