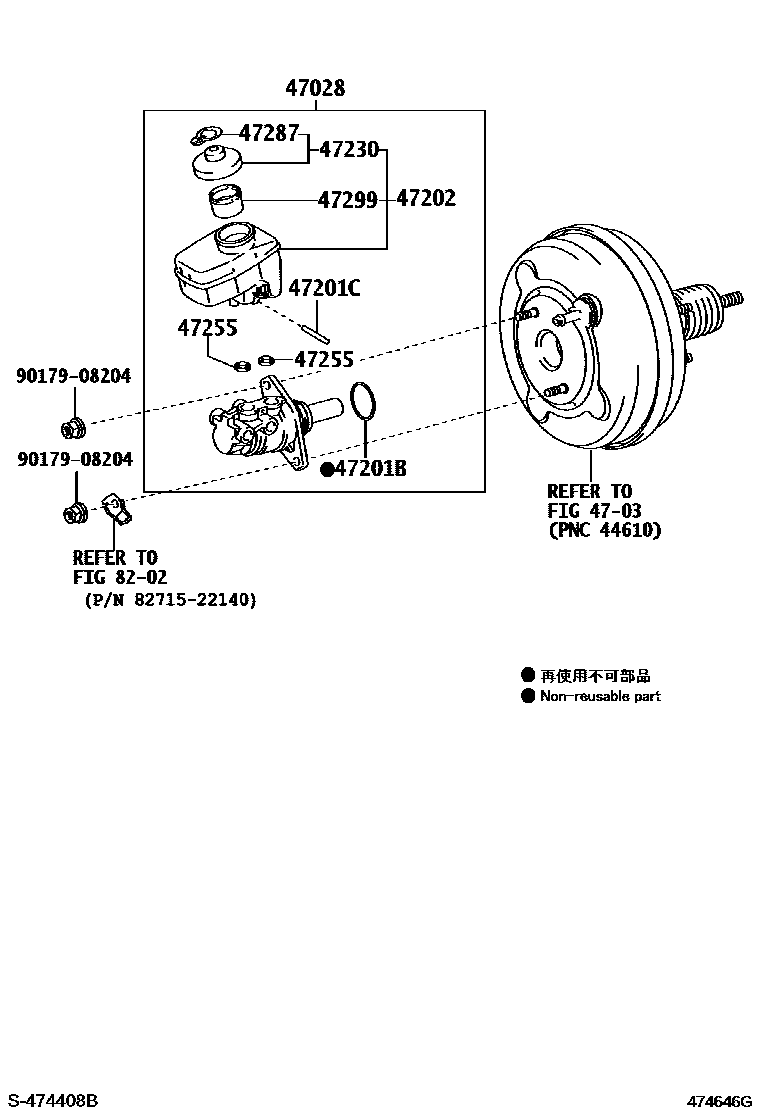

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30010iGRS19#200508-200709

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30760iUZS190200508-200709

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGRS19#200508-200709

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRS19#200709

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30170iGRS19#200508-200709

main47220-30190iUZS190200508-200709

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGRS19#,UZS190200508-200709

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iUZS190200508-200709

main90029-48001×2iGRS19#200508-200709

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRS19#,URS190200709

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRS19#200709

main47299-30190iUZS190200508-200709

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
