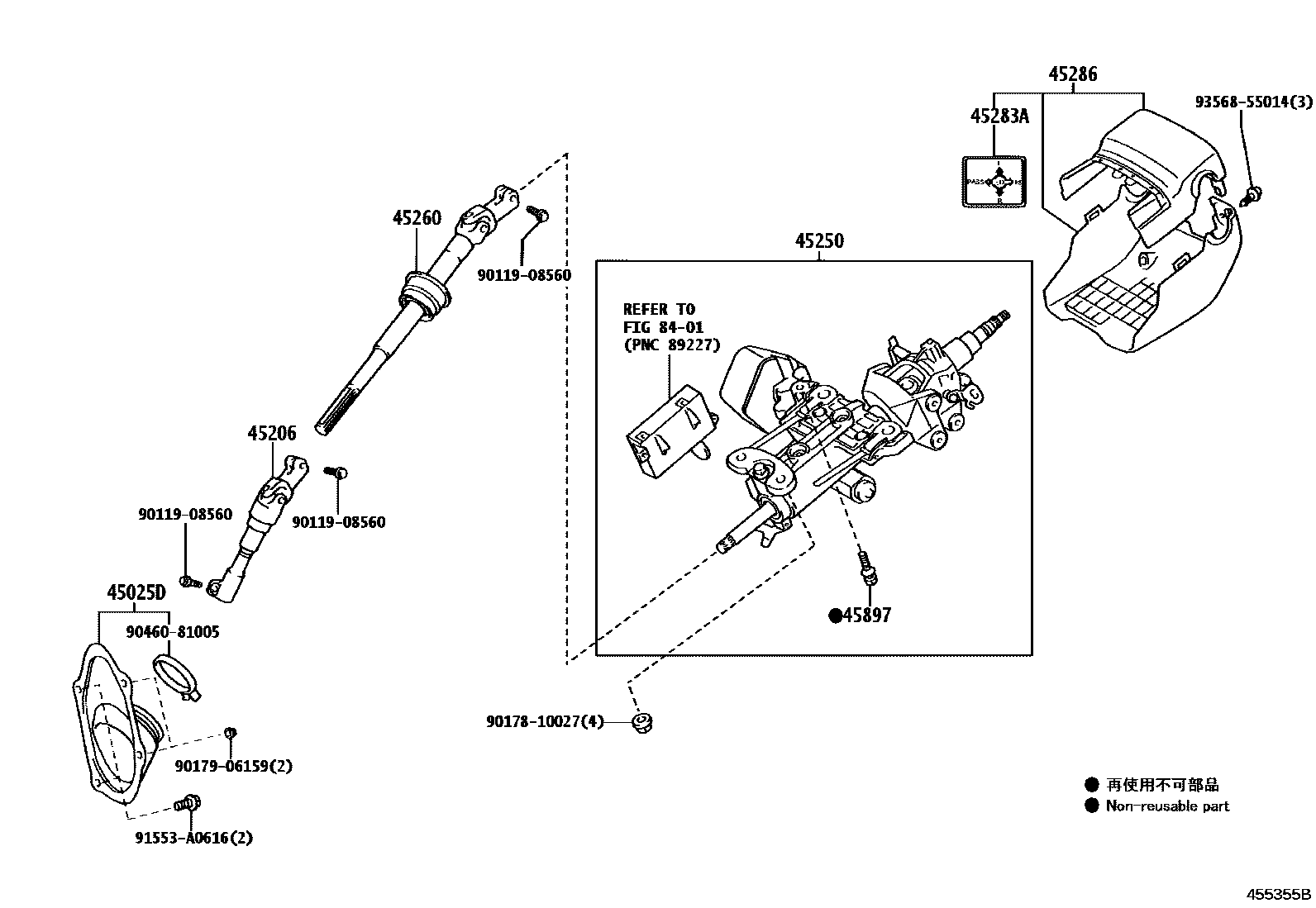

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGRS191200709-201112

main45025-30360iGRS196200709-201111

main45025-30370iUZS190200508-200709

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30100iGRS191200508-200709

main45206-30120iUZS190200508-200709

main45206-30140iGRS191200709-201112

main45206-30150iURS190200709-201103

45250COLUMN ASSY, STEERING

main45250-30A50iGRS19#,UZS190200508-200709

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30160iGRS191200508-200709

main45260-30170iGRS196200508-200709

main45260-30200iGRS191200709-201112

main45260-30210iGRS196200709-201112

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGRS19#,UZS190200508-200709

45286COVER, STEERING COLUMN

main45286-3A904-C0iGRS19#,UZS190200508-200709

BLACK,TRIM1#,28,29

main45286-3A904-E0iGRS19#,UZS190200508-200709

ORCHID BROWN,TRIM0#

main45024-30901-C0iURS190200709-201112

main45024-30901-E0iURS190200709-201112

45897BOLT, STEERING LOCK SET

main45897-12020×2iGRS19#,UZS190200508-200709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046081005

main90460-81005

91553A0616

main91553-A0616

9356855014

main93568-55014

14 parts on this diagram · 6 diagrams in section
