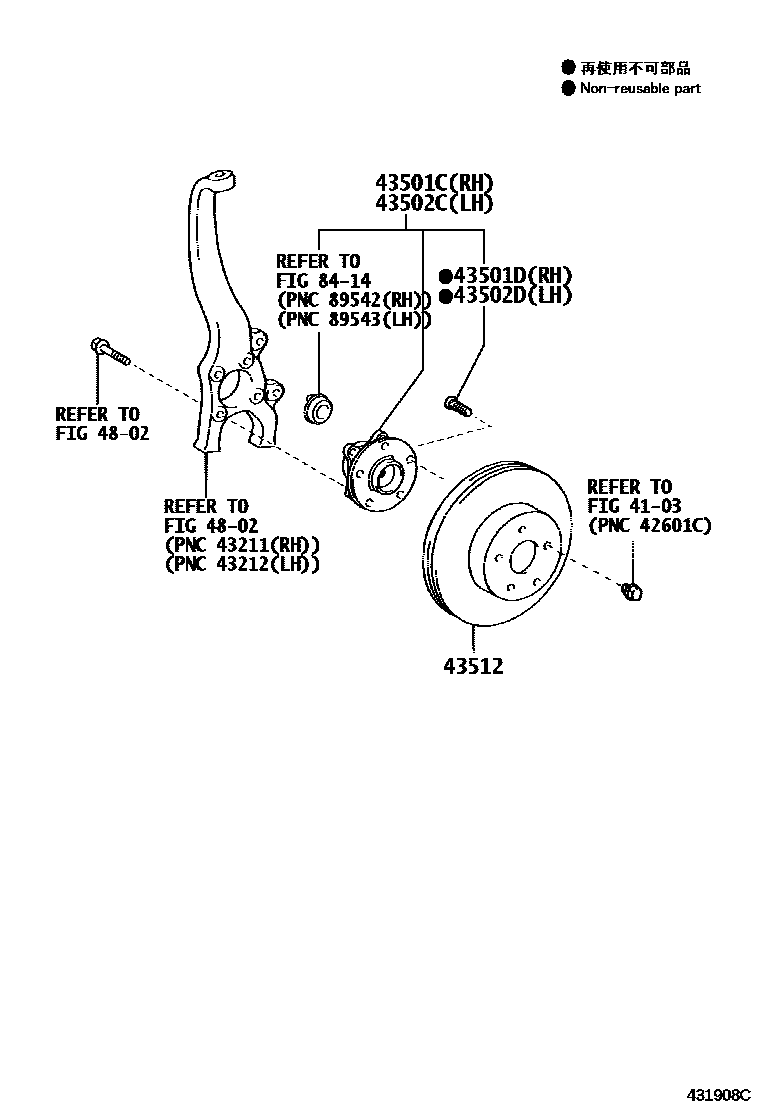

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRS191,URS190200508-201112

main43550-30030iGRS196200508-201112

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iGRS19#,UZS190200508-201112

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRS191,URS190200508-201112

main43560-30030iGRS196200508-201112

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iGRS19#,UZS190200508-201112

43512DISC, FRONT

main43512-22260iGRS191,UZS190200508-201112

main43512-30330iGRS196200508-201112

main43516-22010iGRS191,UZS190200508-201112

main43516-30020iGRS196200508-201112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 2 diagrams in section
