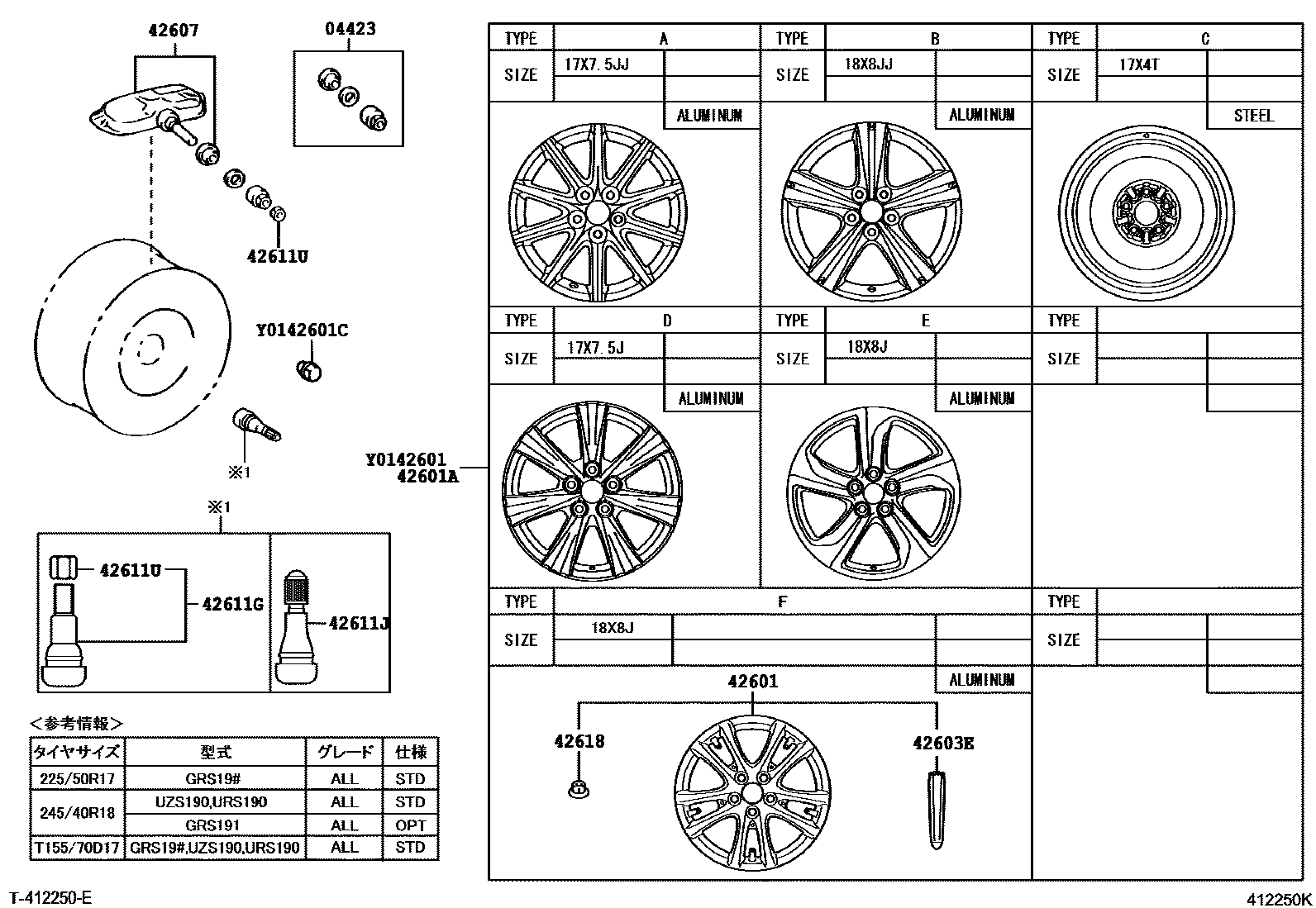

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030×4iGRS19#,UZS190200607-200709

sub04423-33060

main04423-35020×4iGRS19#200508-200603

main04423-42010×4iGRS19#,UZS190200604-200607

main00000-00000iGRS191201007-201109

42601WHEEL, DISC

main42611-30A40×4iGRS19#200508-200607

main42611-30A41×4iGRS19#200607-200709

sub42611-30C70

main42611-30A50×4iUZS190200508-200510

main42611-30B10×4iUZS190200510-200709

sub42611-30B20

main4261A-30010×4iGRS19#200709-201002

main4261A-30030×4iGRS191200709-201112

sub4261A-30300

main4261A-30100×4iGRS19#201003-201112

sub4261A-30110

main42601-30110×4iGRS191201007-201109

sub42601-30111

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iGRS19#,URS190200709-201112

main00000-00000iGRS19#200709-200809

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iGRS19#,UZS190200508-200709

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540×4iGRS19#200508-200709

main42603-30590×4iGRS191200508-200709

42603EGARNISH SUB-ASSY, WHEEL HUB

main4260B-30050×20iGRS191201007-201109

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30020×4iUZS190200508-200602

main42607-30021×4iGRS19#,UZS190200603-200607

main42607-30050×4iGRS19#,UZS190200607-200709

sub42607-33022

main00000-00000iGRS191201007-201109

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028×4iGRS196201007-201109

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGRS19#,URS190200709-201112

main00000-00000iGRS19#200709-200809

42611UCAP, TIRE VALVE

main90942-05037×4iGRS19#200508-200602

main90942-05029×4iGRS196201007-201109

42618RETAINER, WHEEL CAP

main42618-24010×40iGRS191201007-201109

11 parts on this diagram · 3 diagrams in section
