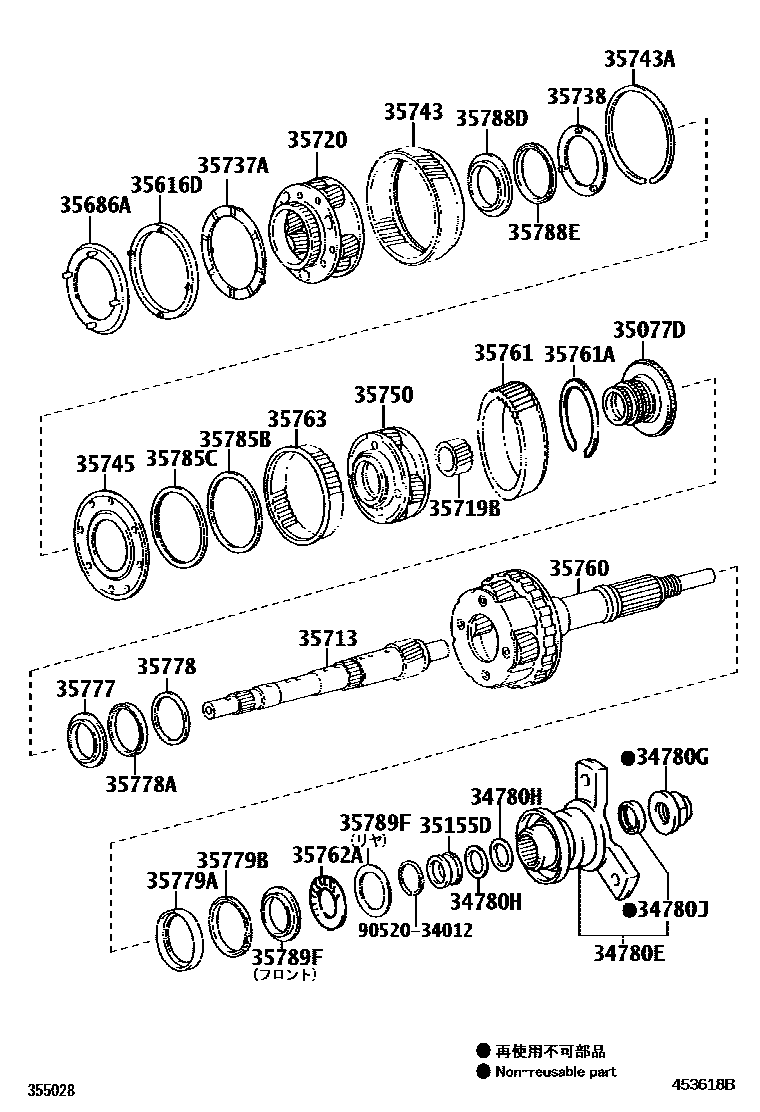

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780HWASHER, PLATE (FOR ATM FLANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35155DSLEEVE, REAR COVER
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35763GEAR, CENTER PLANETARY RING
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
9052034012
main90520-34012
34 parts on this diagram · 3 diagrams in section
