BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

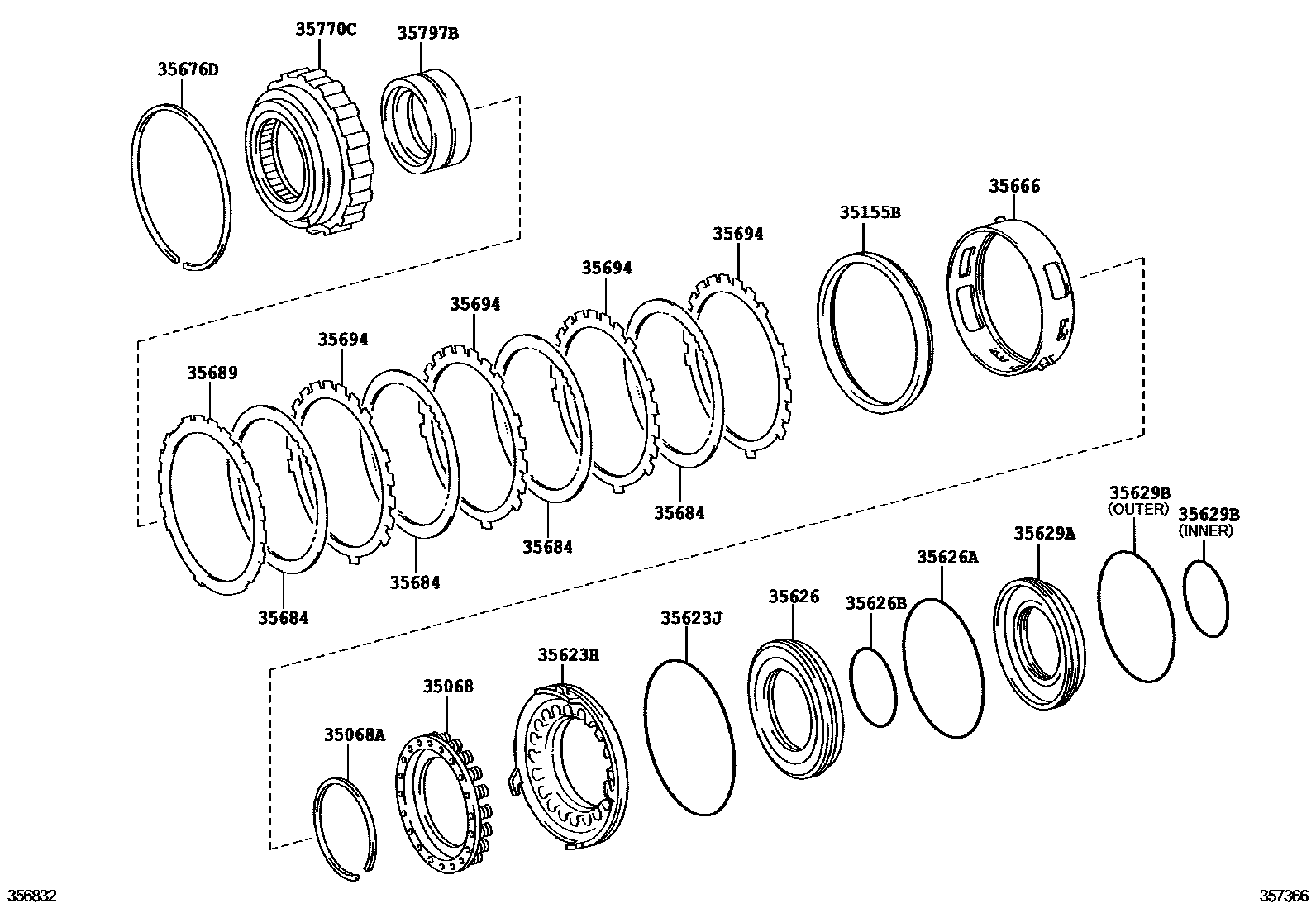

Parts diagram

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-60010i200709

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001i200508-200709

35155BSLEEVE, REAR COVER

main35155-50010i200508-200709

35623HPISTON, 1ST & REVERSE BRAKE

main35623-50030i200508-200709

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087i200508-200709

35626SLEEVE, BRAKE REACTION

main35626-50010i200508-200709

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144i200508-200709

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003i200508-200709

35629APISTON, BRAKE, NO.4

main35629-50020i200508-200709

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006i200508-200709

main90301-99084i200508-200709

35666TUBE, BRAKE APPLY

main35666-50010i200508-200709

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131i200709

35684DISC, BRAKE, NO.4

main35684-50010×4i200508-200709

35689FLANGE, BRAKE, NO.4

main35689-60100i200508-200709

main35689-60110i200508-200709

main35689-60120i200709-201103

main35689-60130i200508-200709

main35689-60140i200709-201103

main35689-60150i200709-201103

main35689-60160i200508-200709

main35689-60170i200709-201103

main35689-60270i201103

main35689-60280i201103

main35689-60290i201103

main35689-60300i201103

main35689-60310i201103

main35689-60320i201103

main35689-60330i201103

main35689-60340i201103

main35689-60350i201103

main35689-60360i201103

main35689-60370i201103

35694PLATE, BRAKE, NO.4

main35694-60011×4i200508-200709

35770CCLUTCH ASSY, 1WAY NO.3

main35770-50010i200508-200709

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50030i200508-200601

main35797-50031i200508-200709

17 parts on this diagram · 1 diagram in section
