33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2i200709-201112

main33504-30351-C1i200709-201112

main33504-30361-20i200709-201112

main33504-30361-C0i200508-200709

main33504-30361-C5i200709-201112

main33504-30361-E0i200709-201112

main33504-30341-E1supersedes 33504-30361-E0i200508-200709

main33504-30351-E4supersedes 33504-30341-E1i201007-201109

33525GRING, SHIFT LEVER

main33525-50020i200709

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-30A90i200709-201112

main33550-30B10i200508-200709

main33550-30B90i200709-201112

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i200508-200709

33550ECAP, POSITION INDICATOR LAMP

main90339-04049i200508-200709

33563BUTTON, SHIFT LOCK RELEASE

main33563-30170i200508-200709

main33563-30200i200709

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020i200508-200709

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091i200508-200709

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013i200508-200709

33693ASHIM, SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT)

main33693-30120i200508-200709

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30580i200508-200709

main33702-30600i200709-201112

main33702-30610i200709-201112

main33702-30620i200508-200709

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30160i200709

35952LENS, POSITION INDICATOR

main35952-30110i200508-200709

main35952-30140i200709-200806

main35952-30141i200807

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30280i200709

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-30090i200709

35978INDICATOR, SHIFT POSITION

main35978-30010i200508-200709

main35978-30060i200709-200806

main35978-30061i200807-201112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

9356854512

main93568-54512

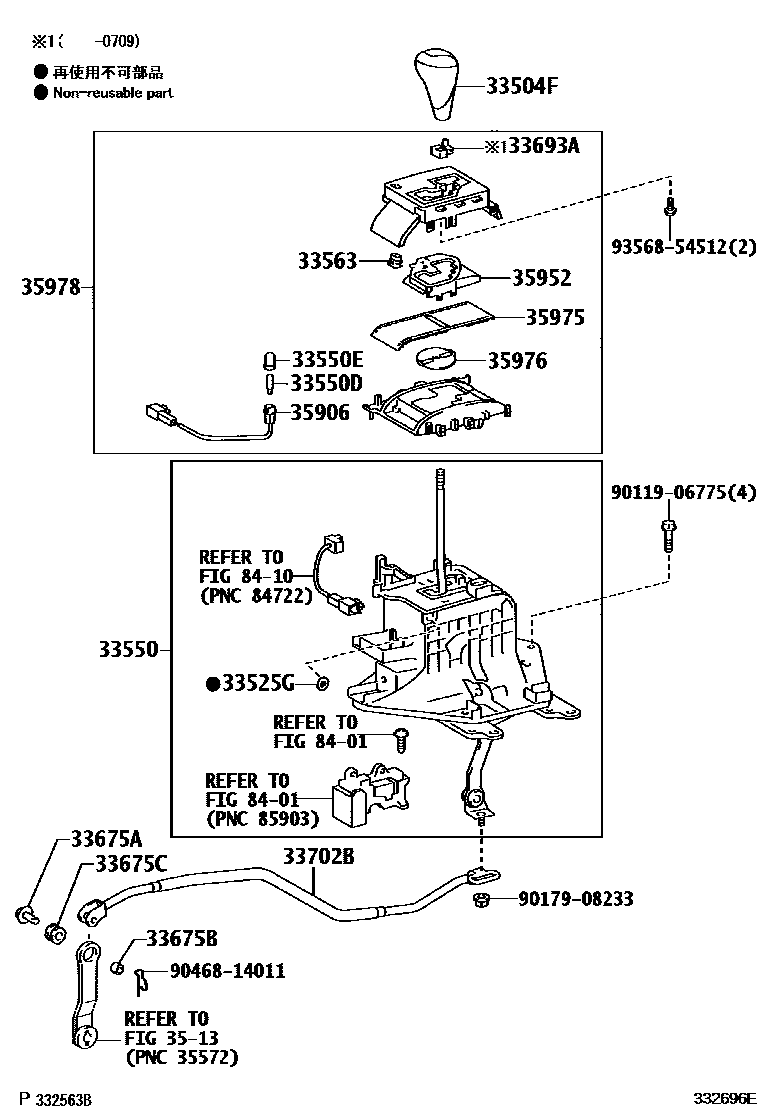

SHIFT LEVER & RETAINER
