20320VALVE ASSY, FUEL RELIEF

main20320-31010i200508-200709

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31040i200508-200709

22271GASKET, THROTTLE BODY

main22271-31020i200508-200709

main22271-50042i200508-200709

main22271-50050i200709

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39615i200508-200601

main23100-39617i200601-200709

main23100-39618i200909-201108

main23100-39635×2i200709-200909

main23100-39636×2i200909

main23100-39645i201108-201111

23250INJECTOR ASSY, FUEL

main23209-31070×6i200508-200709

main23209-39105-A0×6i200508-200608

main23209-39105-B0×6i200508-200608

main23209-39155-A0×6i200709

main23209-39155-B0×6i200709

main23209-39155-C0×6i200608-200709

main23209-39155-D0×6i200709

main23209-50030×4i200508-200510

main23209-50050×4i200508-200510

main23209-50090×4i200510-200709

main23209-50100×4i200510-200709

23250BRING, O(FOR FUEL INJECTOR)

main90301-06017×6i200709

main90301-06018×8i200709

main90301-07024×8i200508-200709

main90301-07037×8i200508-200709

23255ASEAL, FUEL INJECTOR

main23255-31010×12i200508-200709

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010×9i200709

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010×8i200709

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×8i200709

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-31010i200508-200709

main23270-38010×2i200709

main23270-50010×2i200508-200709

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081×2i200508-200709

main23279-74010×2i200508-200709

main90430-12026×2i200508-200709

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main96137-41301×2i200709

main96137-51501×2i200508-200709

23271UHOSE, FUEL, NO.1

main23271-31060i200508-200709

main23271-38020i200709

23273CHOSE, FUEL, NO.2

main23273-31050i200508-200709

main23273-38020i200709

23273THOSE, FUEL, NO.3

main23273-31040i200508-200709

23291INSULATOR, INJECTOR VIBRATION

main23291-20010×8i200508-200709

main23291-23010×8i200709

main23291-31011×6i200508-200709

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i200709

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31042i200508-200611

main23802-31043i200709

main23802-38011i200709-201112

main23802-50080i200508-200709

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-31012i200508-200611

main23803-31013i200611-200709

main23803-38010i200709

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31060i200508-200512

main23807-31061i200512-200709

main23807-31062i201111-201112

main23807-50031i200508-200709

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020×4i200709

main90561-08023×4i200709-201112

main90561-08029×4i200508-200709

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-31020i200709-201008

main23808-31070i201008-201112

main23808-50021i200508-200709

23812CPIPE, FUEL, NO.2

main23812-31020i200508-200709

main23812-31050i201110-201111

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i200709-201112

main23841-28010×2i200508-200704

23850APIPE ASSY, FUEL DELIVERY W/SENSOR, RH

main23850-31010i200508-200709

23901TUBE SUB-ASSY, FUEL

main23901-31011i200709-201112

main23901-38020i200709

23902TUBE SUB-ASSY, FUEL

main23902-31010i200508-200512

main23902-31011i200709-201111

main23902-31012i201111-201112

23915INSULATOR, FUEL PUMP

main23915-46011i200709

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906980

main90119-06980

9012608048

main90126-08048

9017908206

main90179-08206

9030106016

main90301-06016

9030111029

main90301-11029

9043012026

main90430-12026

9046400558

main90464-00558

9052305007

main90523-05007

9155180620

main91551-80620

9155180650

main91551-80650

9155180830

main91551-80830

9155180845

main91551-80845

9167180616

main91671-80616

9167180835

main91671-80835

9415180800

main94151-80800

9613251300

main96132-51300

9613551300

main96135-51300

9613741301

main96137-41301

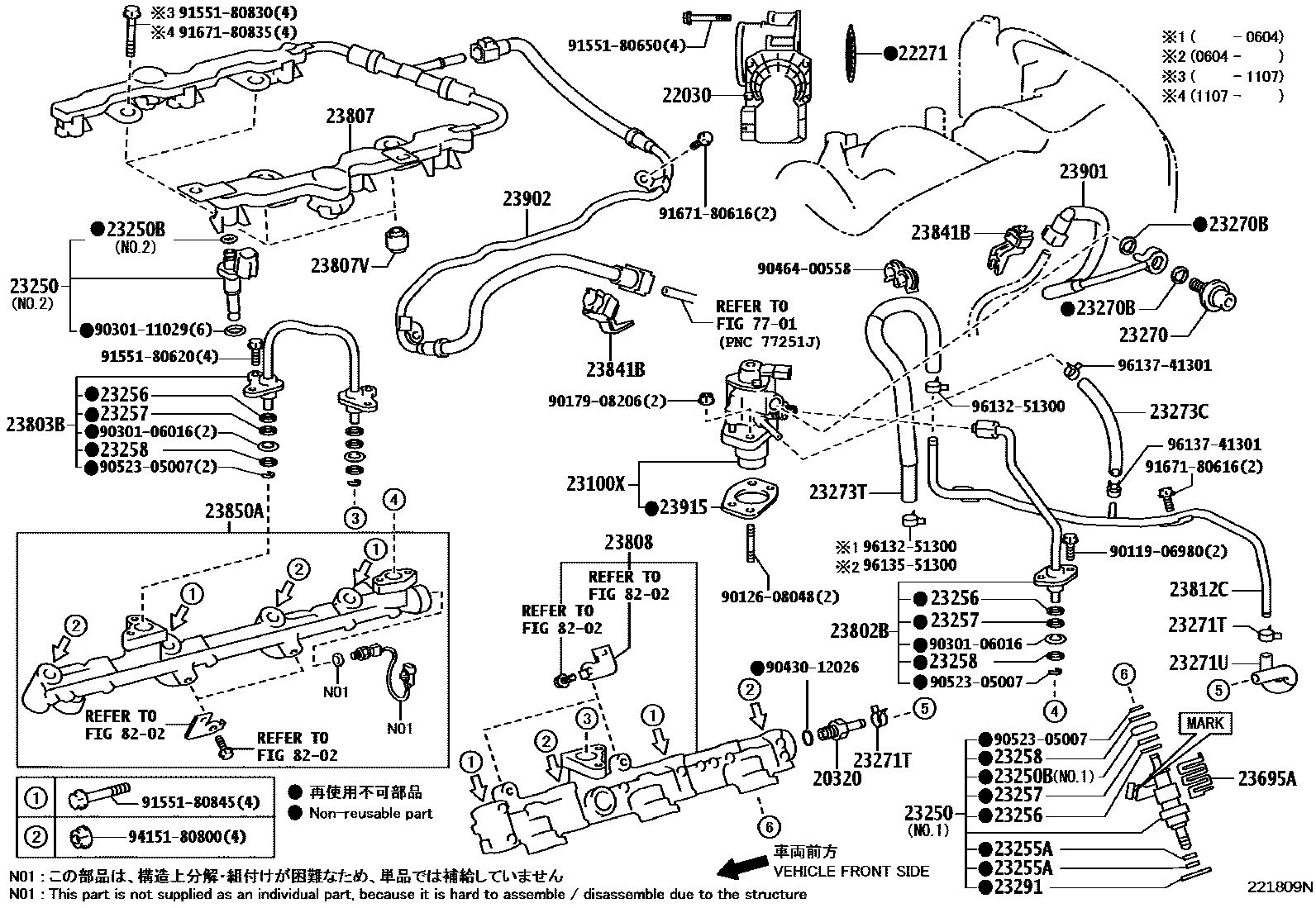

FUEL INJECTION SYSTEM
