Toyota LEXUS GS460/430/350 — VACUUM PIPING

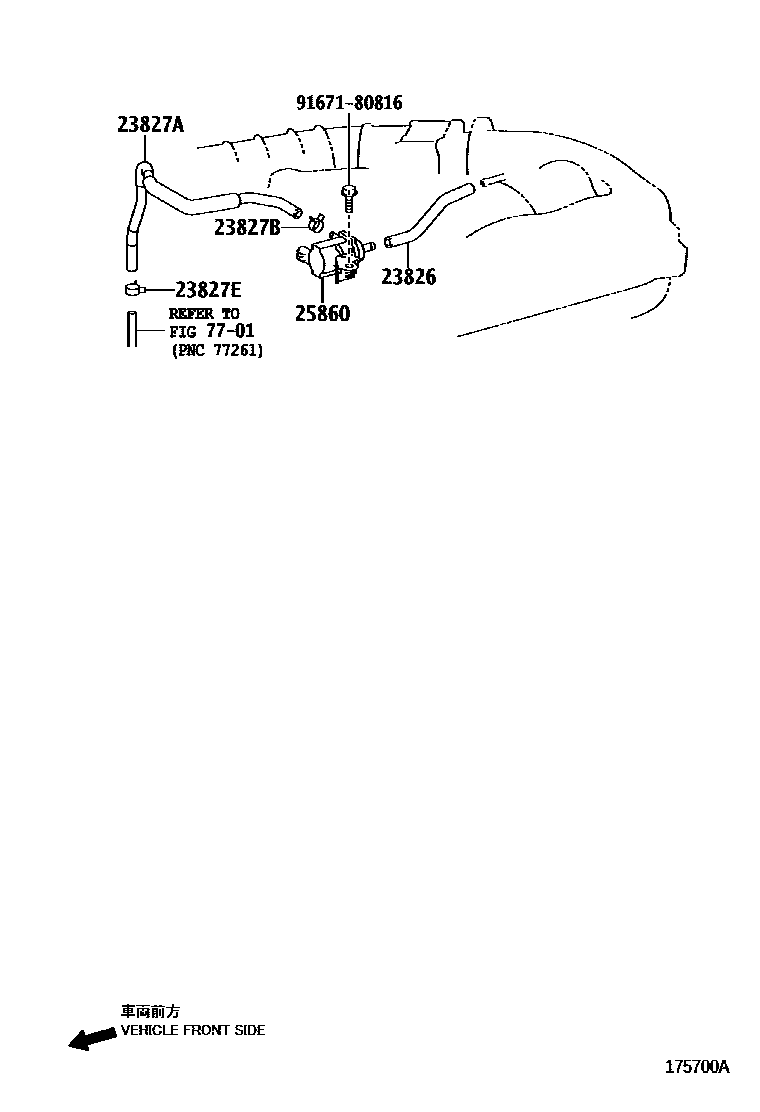

Parts diagram

23826HOSE, FUEL VAPOR FEED, NO.1

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9167180816

7 parts on this diagram · 3 diagrams in section

VACUUM PIPING for Toyota LEXUS GS460/430/350

This section contains 27 genuine Toyota parts for the VACUUM PIPING system of the Toyota LEXUS GS460/430/350. Key components include: VALVE ASSY, VACUUM SWITCHING, INSULATOR, PLATE, HOSE, FUEL VAPOR FEED, NO.1, CLIP(FOR FUEL VAPOR FEED HOSE, NO.1), HOSE, FUEL VAPOR FEED, NO.2.
