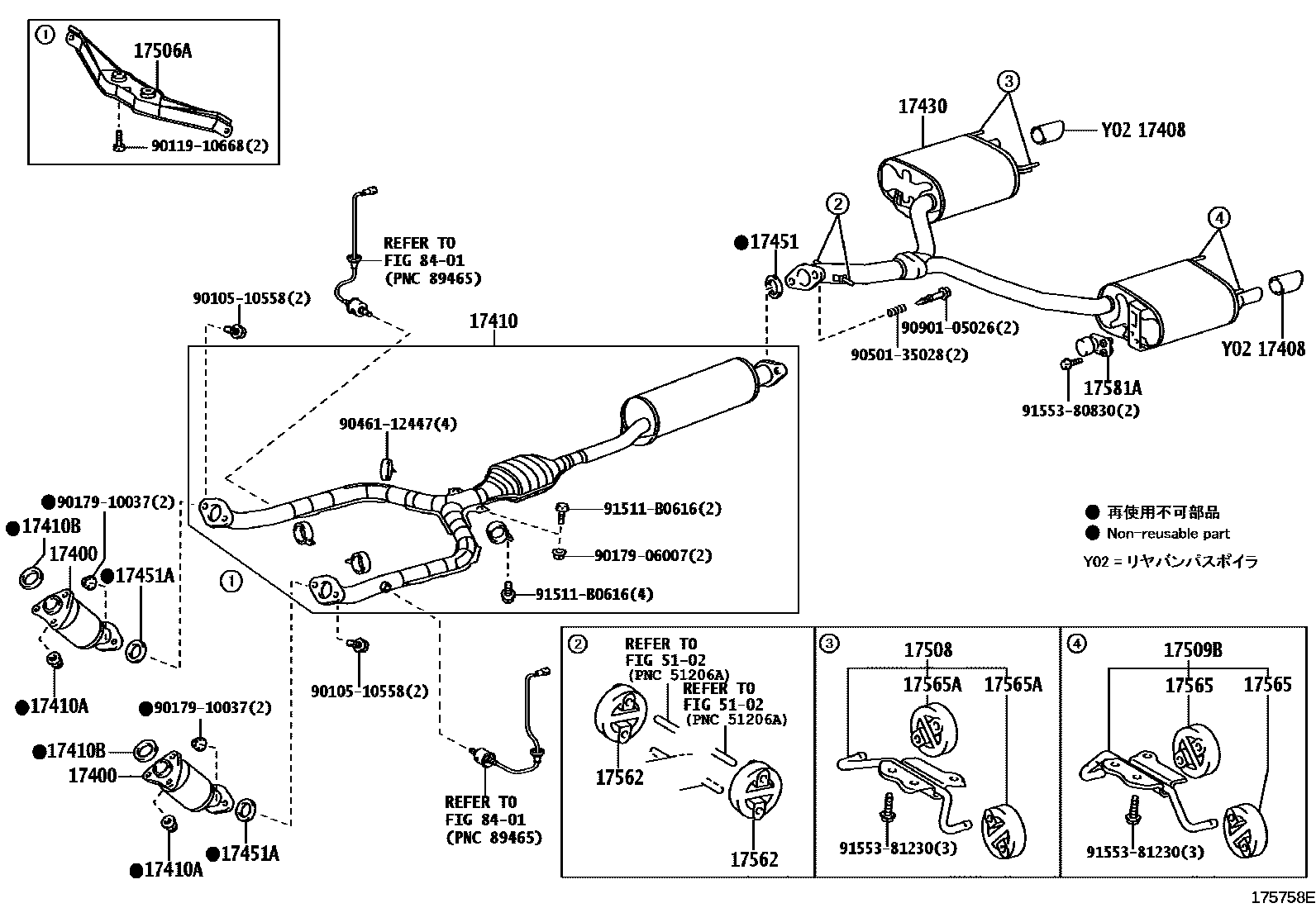

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509BSUPPORT, EXHAUST PIPE NO.4
17562SUPPORT, EXHAUST PIPE, NO.2
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
5102SUSPENSION CROSSMEMBER & UNDER COVER
8401SWITCH & RELAY & COMPUTER
9010510558
main90105-10558
9011910668
main90119-10668
9017906007
main90179-06007
9017910037
main90179-10037
9046112447
main90461-12447
9050135028
main90501-35028
9090105026
main90901-05026
91511B0616
main91511-B0616
9155380830
main91553-80830
9155381230
main91553-81230
27 parts on this diagram · 3 diagrams in section
