MANIFOLD

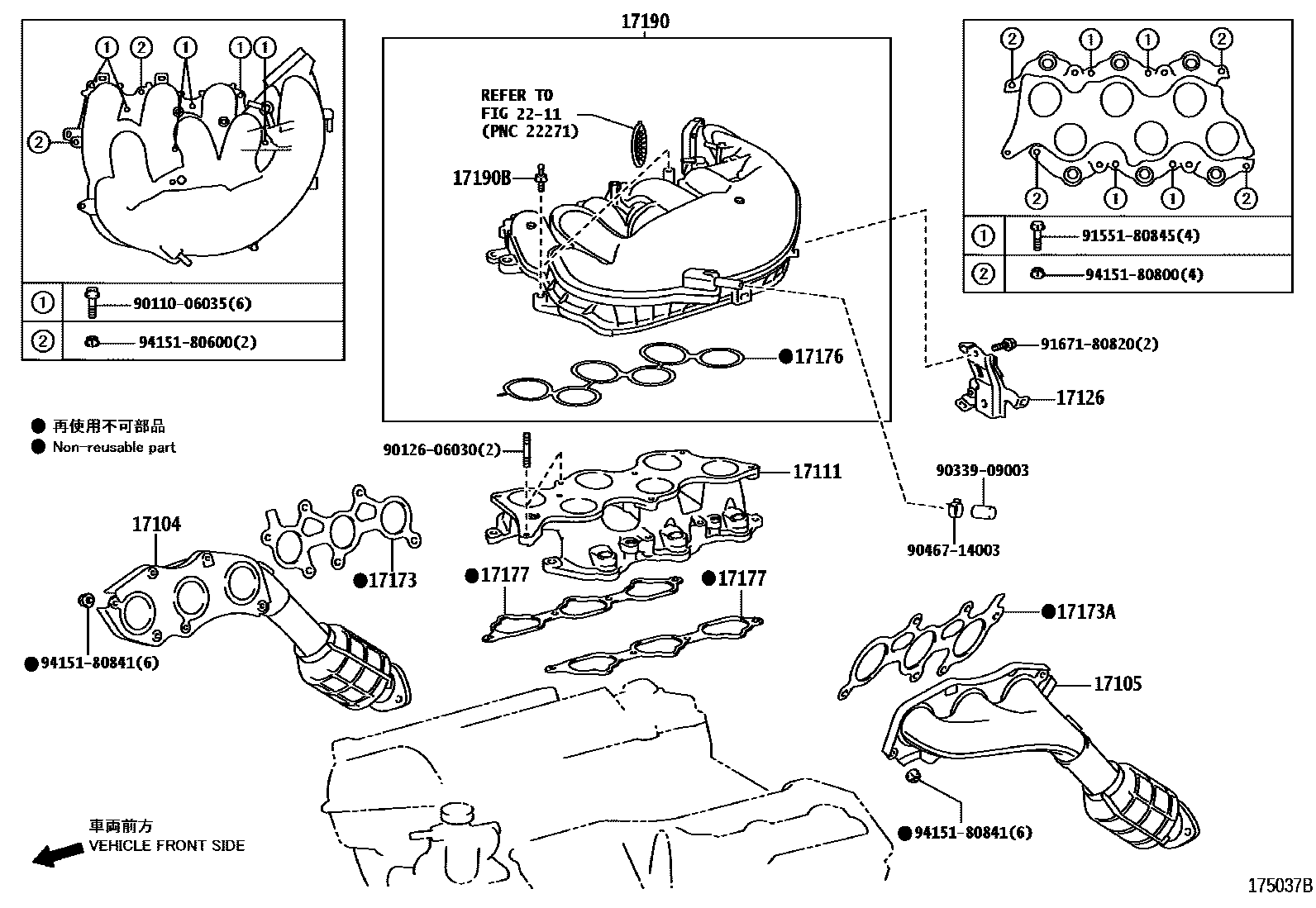

Parts diagram

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-50160i200508-200709

main17140-31120i200709-200805

main17140-31130i200508-200608

main17140-31131i200709-200909

main17140-31340i200806-200909

main17140-31670i200909

main17140-31680i200909

main17140-38030i200709

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-50160i200508-200709

main17150-31120i200508-200709

main17150-31130i200508-200608

main17150-31131i200709-200805

main17150-31480i200806-200909

main17150-31670i200909

main17150-31680i200909

main17150-38030i200709

17111MANIFOLD, INTAKE

main17101-50010i200508-200709

main17111-31170i200508-200709

main17111-31171i201107

main17120-38021i200709

17126STAY, SURGE TANK, NO.2

main17126-31050i200709

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i200508-200709

main17173-38040i200709

main17173-50021i200508-200709

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i200709

main17173-38040i200709

main17173-50021i200508-200709

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31060i200508-200709

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-38020×2i200709

main17171-50020×2i200508-200709

main17177-31060×2i200709-201107

main17177-31061×2i201107-201112

17190TANK ASSY, INTAKE AIR SURGE

main17190-31100i200709-201112

17190BBRACKET, INTAKE AIR SURGE TANK, NO.2

main11254-31020×2i200508-200709

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180845

main91551-80845

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

20 parts on this diagram · 3 diagrams in section
