STANDARD TOOL

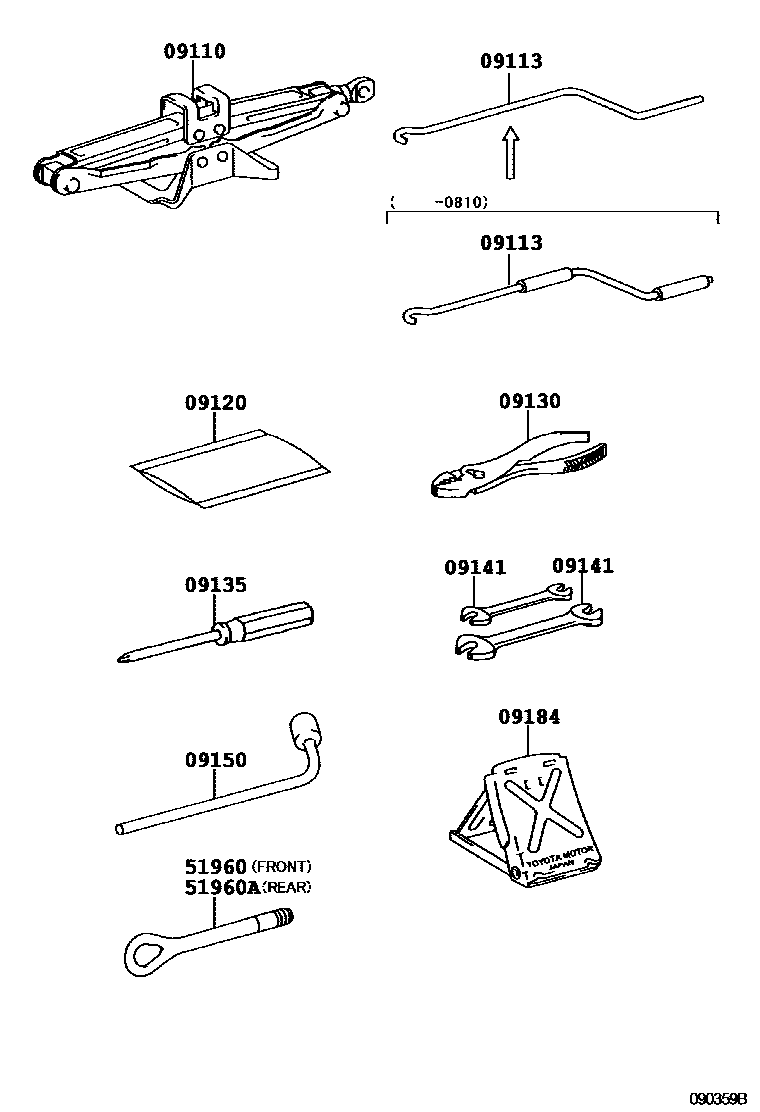

Parts diagram

09110JACK ASSY

main09111-33030i201011

main09111-50051i200508-200709

09113HANDLE, JACK

main09113-13040i200811

main09113-22020i200709-200810

09120BAG, TOOL

main09120-28040i200709

09130PLIERS

main09130-50030i200508-200709

main09130-50040i200909-201112

09135DRIVER, SCREW

main09135-50040i200709-200909

main09135-50060i200912-201112

main99915-10700i200909-200911

09141SPANNER

main09141-50050i200709-201107

main09141-50060i200709-201107

main09141-50070i201107-201112

main09141-60020i201107-201112

09150WRENCH, HUB NUT BOX

main09150-53010i200909-201112

main09150-50010i200908-201002

09184STOPPER, WHEEL

main09184-00010i200508-200709

51960HOOK ASSY, FRONT

main51961-30020i200508-200709

main51961-53010i200712

51960AHOOK ASSY, REAR

main51961-30020×2i200508-200709

main51961-53010×2i200712

10 parts on this diagram · 1 diagram in section
