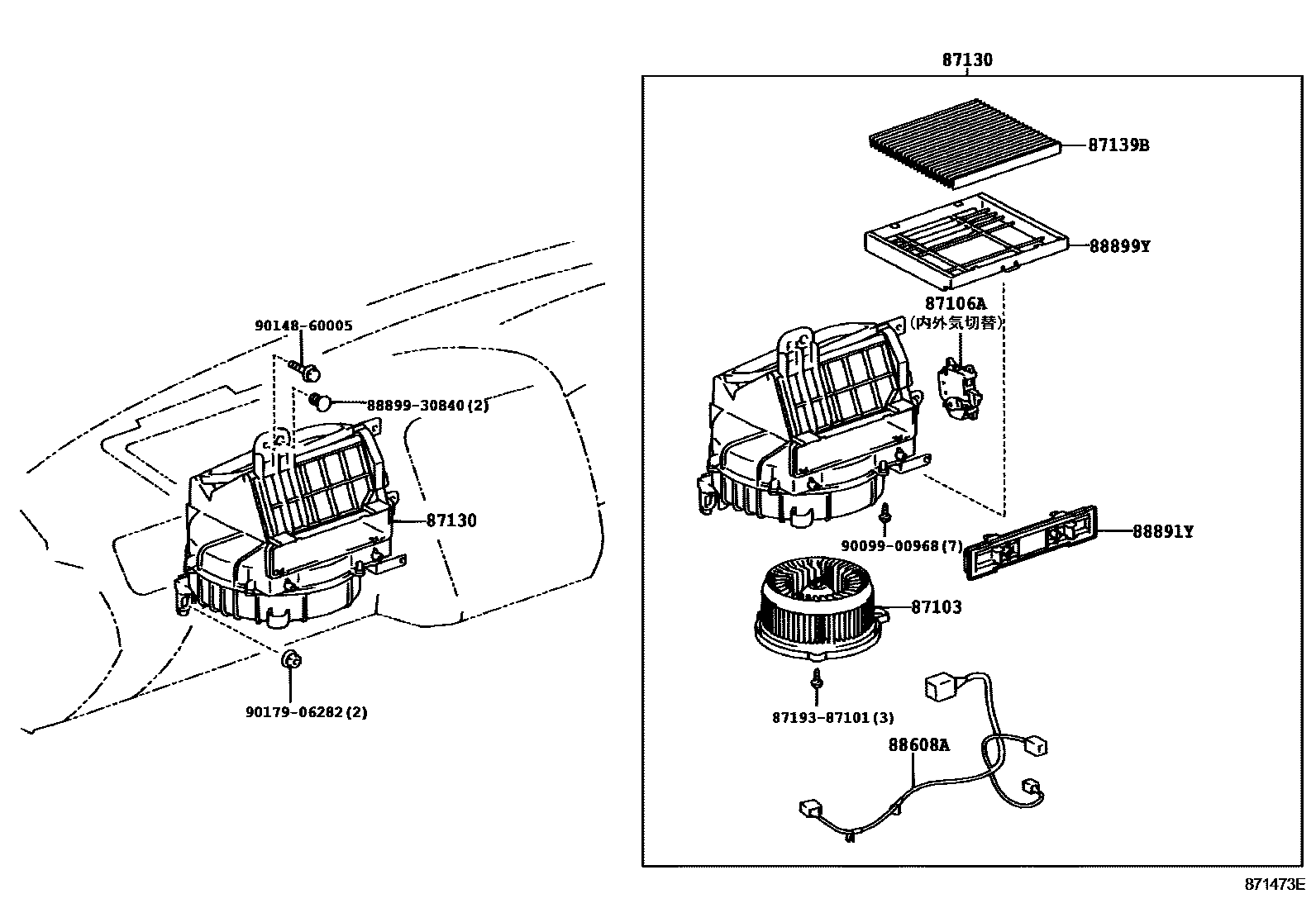

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30380iJZS16#199708-199809

main87103-51010iJZS16#199809

87106ASERVO SUB-ASSY, DAMPER

main87106-30380iJZS16#199708

87130BLOWER ASSY, HEATER, FRONT

main87130-30650iJZS16#199708-200208

main87130-30651iJZS16#200208

87139BFILTER, CLEAN AIR

main87139-48030iJZS16#199708-200501

88608AHARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2

main88608-3A030iJZS16#199708

88891YCOVER, COOLER,NO.1

main88891-30680iJZS16#199708

88899YPLATE, COVER(FOR AIR FILTER)

main88899-30870iJZS16#199708

8719387101

main87193-87101

8889930840COVER, EVAPORATOR

main88899-30840

9009900968

main90099-00968

9014860005

main90148-60005

9017906282

main90179-06282

12 parts on this diagram · 1 diagram in section
