SEAT MOTOR & SEAT HEATER

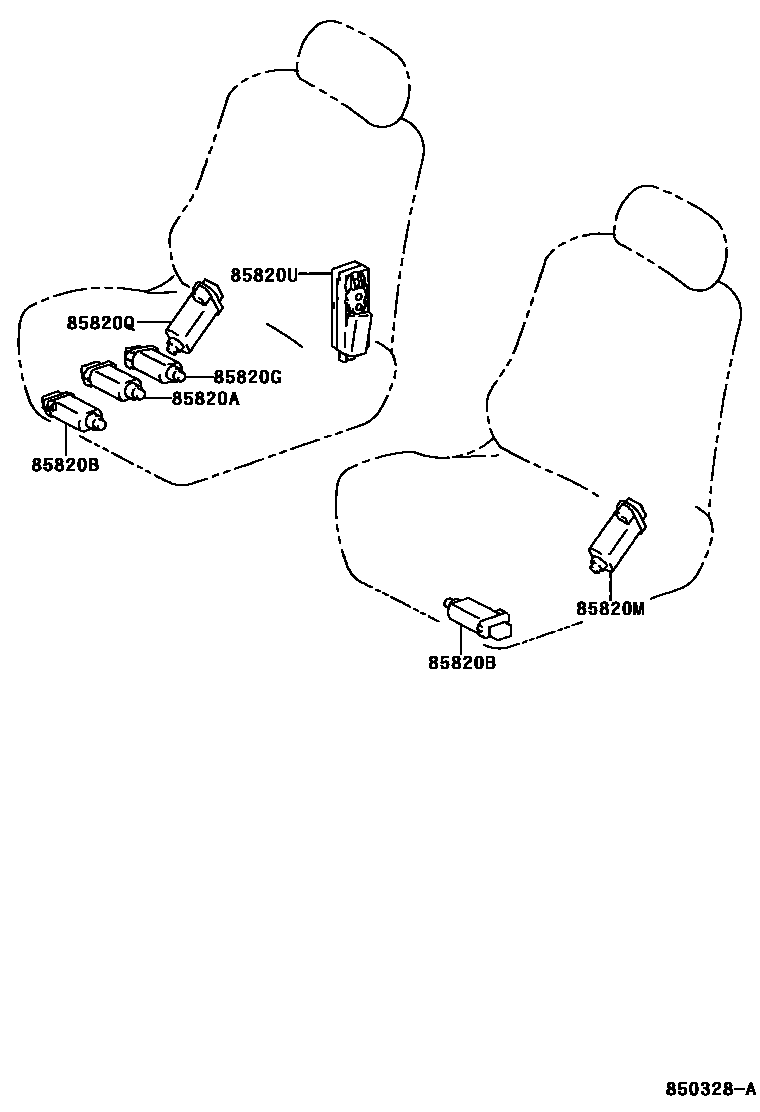

Parts diagram

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-30510i199708-200004

main85820-30720i200005

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-30510×2i199708-200004

main85820-30710i200005

main85820-30720i200005

85820GMOTOR ASSY, POWER SEAT

main85820-30510i199708-200004

main85820-30720i200005

85820MMOTOR ASSY, POWER SEAT (FOR FRONT LH SEAT RECLINING)

main85820-30570i199708-200004

main85820-30720i200005

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-30690i199708-200004

main85820-30740i200008

85820UMOTOR ASSY, POWER SEAT(FOR LUMBAR SUPPORT)

main85820-30700i199708

6 parts on this diagram · 1 diagram in section
