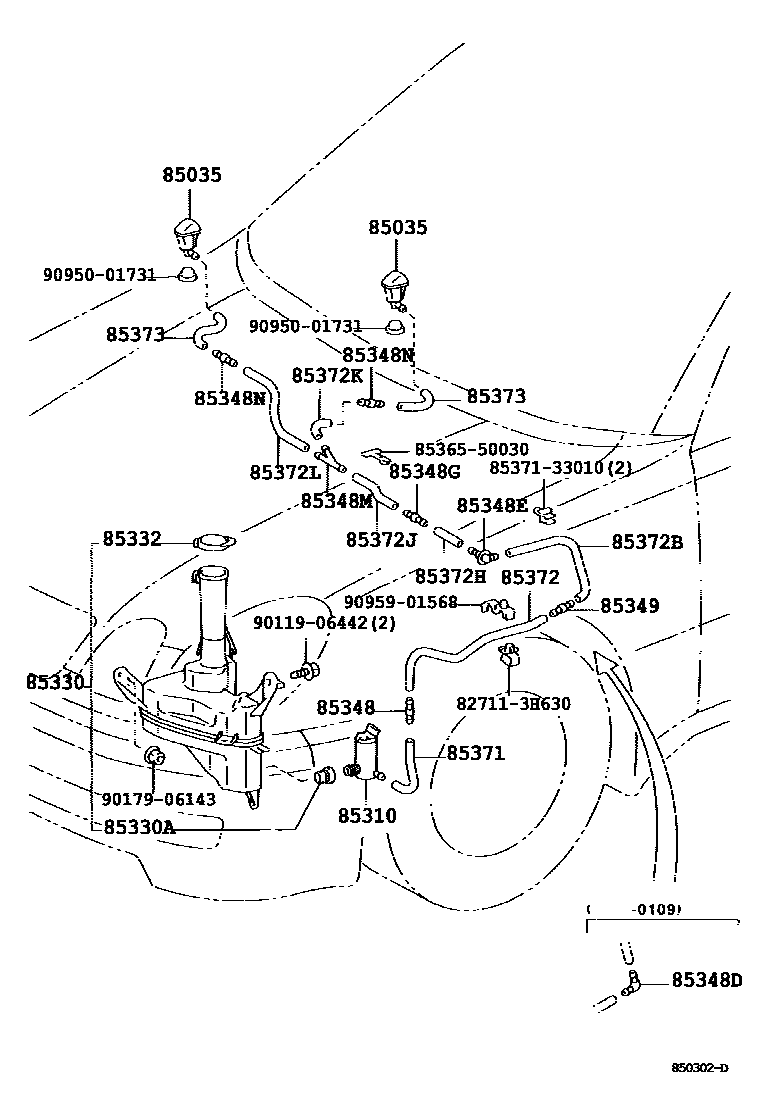

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
DARK GREEN MC.,6S6
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H630
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
9011906442
main90119-06442
9017906143
main90179-06143
9095001731
main90950-01731
9095901568
main90959-01568
27 parts on this diagram · 2 diagrams in section
