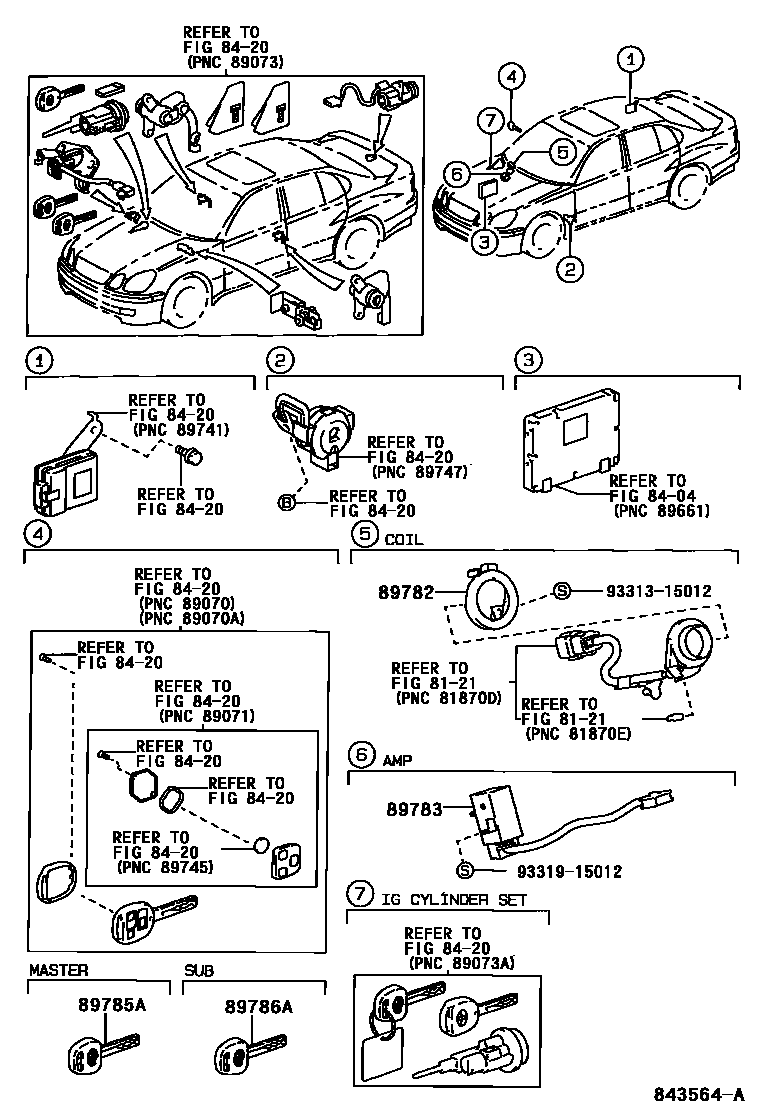

ANTI-THEFT DEVICE

0001 1�������� 0002 1��� �-���� ����

8121INTERIOR LAMP

→ Go to FIG 81-21

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89782COIL, TRANSPONDER KEY

main89782-30010iJZS16#200007

89783AMPLIFIER, TRANSPONDER KEY

main89783-30020iJZS16#200007-200204

main89783-30021iJZS16#200204

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50070iJZS16#200007

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50070iJZS16#200007

9331315012

main93313-15012

9331915012

main93319-15012

9 parts on this diagram · 2 diagrams in section
