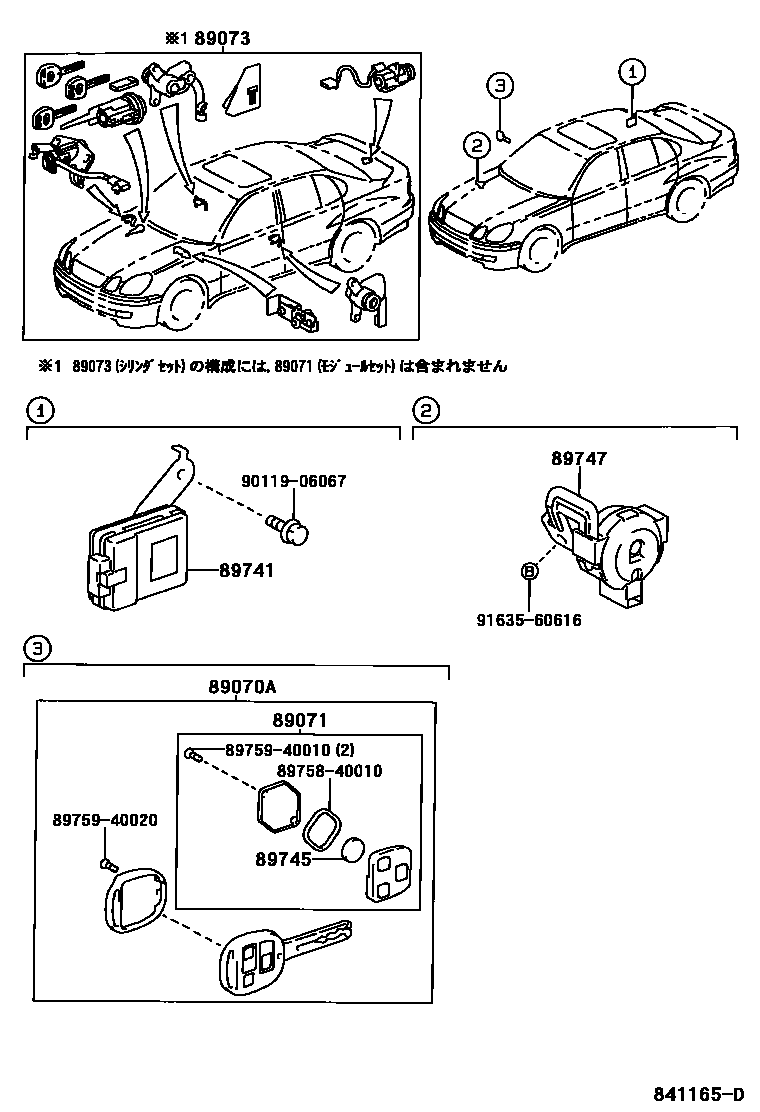

WIRELESS DOOR LOCK

0001 1 0002 1

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-30070iJZS16#199708-200007

main89070-30540iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

main89070-50280iJZS16#200007-200501

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50010iJZS16#199708-200007

main89071-50080iJZS16#200007-200009

main89071-50081iJZS16#200009-200501

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-30220iJZS16#199708-200007

main89073-30360iJZS16#200007-200501

main89073-30380iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

89741RECEIVER, DOOR CONTROL

main89741-30210iJZS161;JZS160..5FC199708-200501

main89741-30220iJZS161;JZS160..5FC199708-200501

89745BATTERY, TRANSMITTER

main89745-40010iJZS16#199708-200501

89747BUZZER, WIRELESS DOOR LOCK

main89747-30020iJZS160199708-200501

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906067

main90119-06067

9163560616

main91635-60616

11 parts on this diagram · 2 diagrams in section
