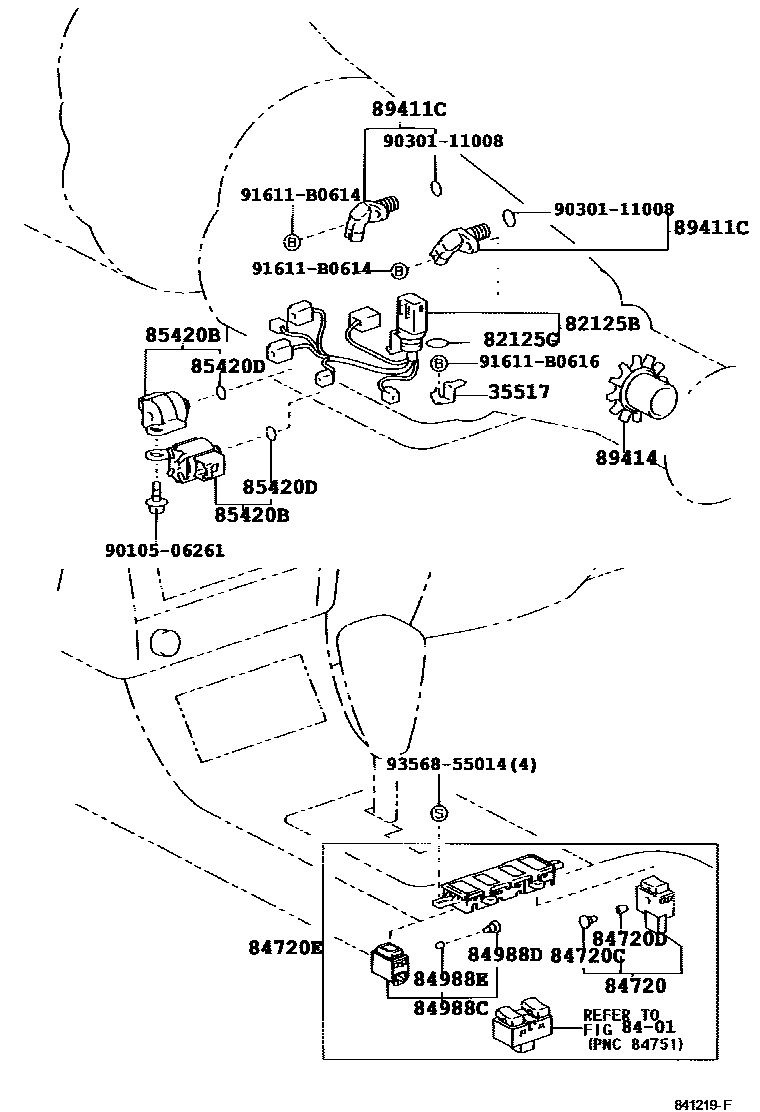

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-50010iJZS160199708-200007

82125BWIRE, TRANSMISSION

main82125-30460iJZS160200007-200501

main82125-30480iJZS161199708-200501

main82125-40050iJZS160199708-200007

82125GRING, O(FOR TRANSMISSION WIRE)

main96721-24018iJZS16#199708

8401

84720SWITCH ASSY, PATTERN SELECT

main84720-30330iJZS16#199708

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10710iJZS16#199708

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iJZS16#199708

84720ESWITCH ASSY, PATTERN SELECT

main84720-30230iJZS16#199708

main84720-30240iJZS16#199708

84988CSWITCH, TRACTION CONTROL

main84988-30070iJZS16#199708

84988DBLUB, TRACTION CONTROL SWITCH

main84999-10310iJZS16#199708-199911

main90010-01039iJZS16#199911

84988ECAP, TRACTION CONTROL SWITCH BULB

main84998-10740iJZS16#199708-199911

85420BSOLENOID ASSY, TRANSMISSION

main35250-30100×3iJZS161200108-200501

main35250-50010iJZS160200108-200501

main35250-50030iJZS160200108-200501

main85420-30240iJZS160200007-200108

main85420-30260iJZS160200007-200108

main85420-30270iJZS160200007-200108

main85420-30280iJZS161199708-200108

sub35250-30080

main85420-30310×3iJZS161199708-199908

main85420-50020iJZS160199708-200007

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×4iJZS161199908-200501

89411CSENSOR, SPEED

main89411-50010×2iJZS16#199708-200501

89414ROTOR, SENSOR

main89414-30060iJZS160199708-200007

main89414-30080iJZS160200007-200501

9010506261

main90105-06261

9030111008

main90301-11008

91611B0614

main91611-B0614

91611B0616

main91611-B0616

9356855014

main93568-55014

20 parts on this diagram · 3 diagrams in section
