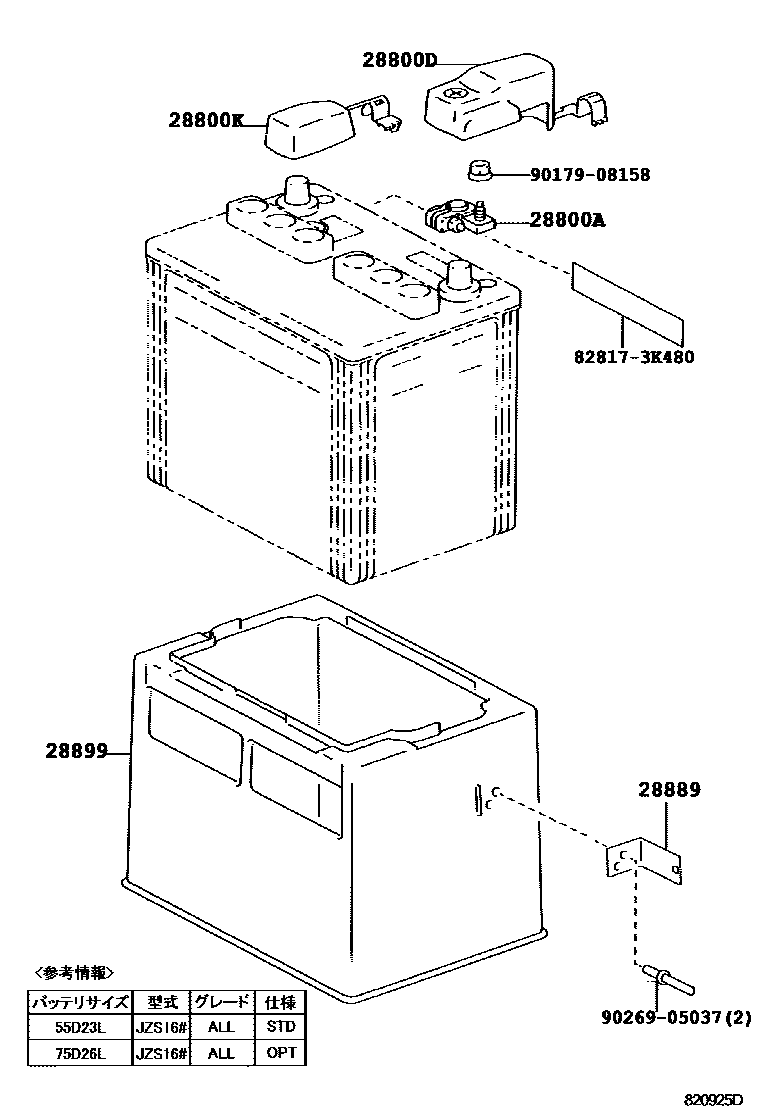

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i2JZ#..JZS16#199708

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30410i2JZ#..JZS16#199708

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-50060i2JZ#..JZS16#199808-200007

main82821-50450i2JZ#..JZS16#200007

28889BRACKET, BATTERY WIRE CLAMP

main28889-46020i2JZ#..JZS16#199708

28899INSULATOR, BATTERY

main28870-46100i2JZ#..JZS16#199708

828173K480PROTECTOR, WIRING HARNESS, NO.1

main82817-3K480

9017908158

main90179-08158

9026905037

main90269-05037

8 parts on this diagram · 1 diagram in section
