HEADLAMP

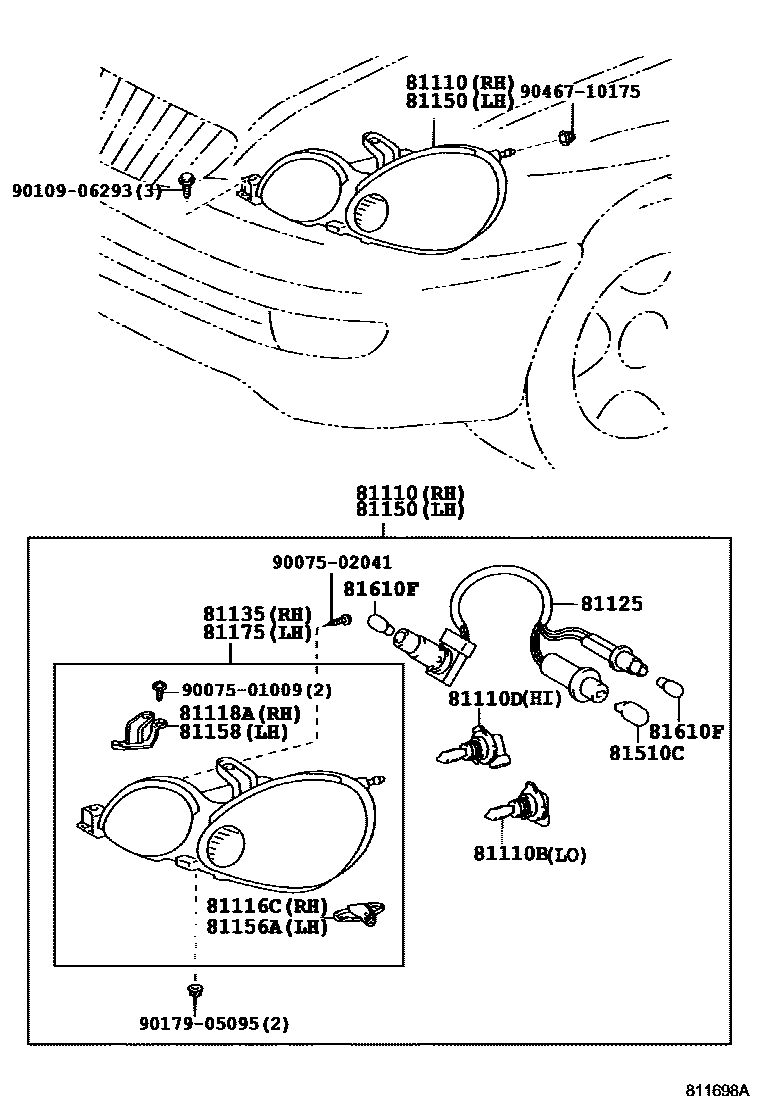

Parts diagram

81110HEADLAMP ASSY, RH

main81110-30860i199708-200007

main81110-30870i199708-199808

main81110-30871i199808-199908

main81110-30872i199908-200007

main81110-3A570i200007-200501

main81110-3A580i200007-200501

main81110-3A590i200007-200501

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13047×2i199708-200501

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i199708-200501

81116CBRACKET, HEADLAMP, RH

main81116-30860i199708-200501

81118ABRACKET, HEADLAMP, RH

main81118-30860i199708-200501

81125CORD, HEADLAMP

main81125-30860×2i199708-200007

main81125-3A570×2i200007-200501

81135UNIT ASSY, HEADLAMP, RH

main81130-30860i199708-200007

main81130-30870i199708-199808

main81130-30871i199808-200007

main81130-3A570i200007-200501

main81130-3A580i200107-200204

10TH ANNIVERSARY EDITION *(G)

main81130-3A590i200007-200501

81150HEADLAMP ASSY, LH

main81150-3A150i199708-200007

main81150-3A420i199708-199808

main81150-3A421i199808-199908

main81150-3A422i199908-200007

main81150-3A690i200007-200501

main81150-3A700i200107-200204

10TH ANNIVERSARY EDITION *(G)

main81150-3A710i200007-200501

81156ABRACKET, HEADLAMP, LH

main81156-3A150i199708-200501

81158BRACKET, HEADLAMP, LH

main81158-3A150i199708-200501

81175UNIT ASSY, HEADLAMP, LH

main81170-3A150i199708-200007

main81170-3A420i199708-199808

main81170-3A421i199808-200007

main81170-3A690i200007-200501

main81170-3A700i200107-200204

10TH ANNIVERSARY EDITION *(G)

main81170-3A710i200007-200501

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2i199708-200501

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4i199708-200501

9007501009

main90075-01009

9007502041

main90075-02041

9010906293

main90109-06293

9017905095

main90179-05095

9046710175

main90467-10175

18 parts on this diagram · 2 diagrams in section
