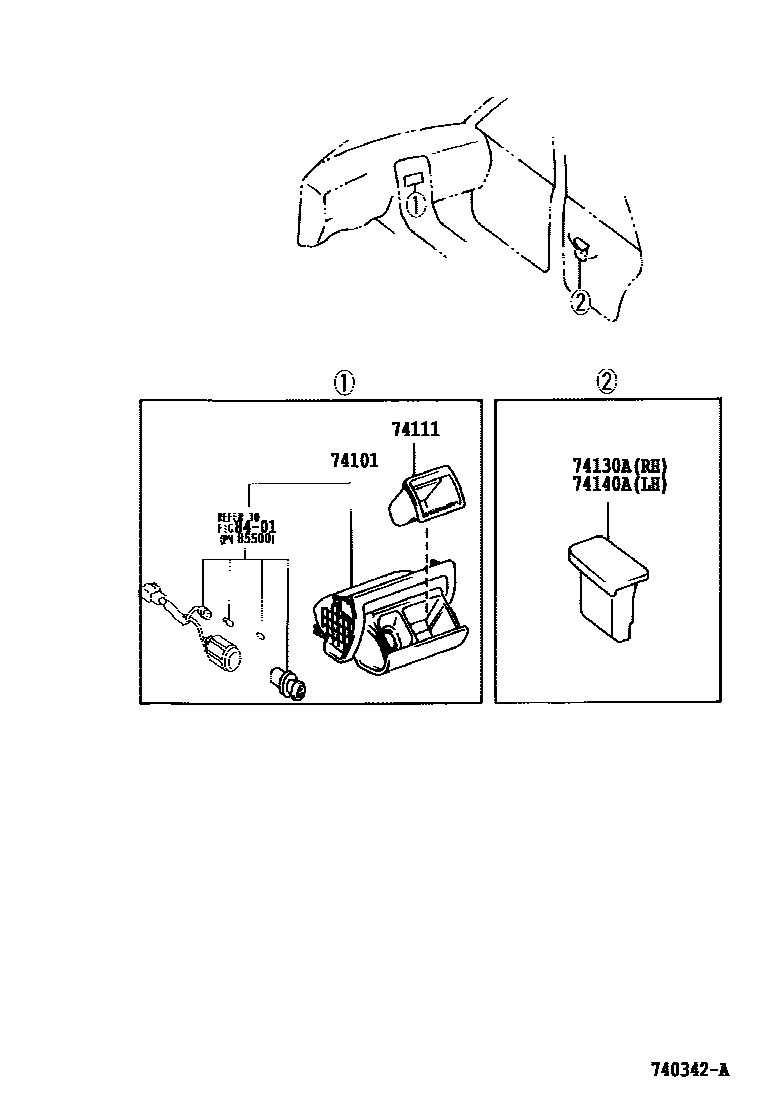

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-30100iJZS16#199708

main74101-30140iJZS160200007

main74101-30150iJZS161200208-200303

main74101-30160iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

74111BOX, FRONT ASH RECEPTACLE

main74111-30160iJZS16#199708

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-30280-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main74130-30280-C0iJZS16#200007-200501

BLACK,TRIM22,23

main74130-30280-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-30140-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main74140-30140-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main74140-30140-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5 parts on this diagram · 1 diagram in section
