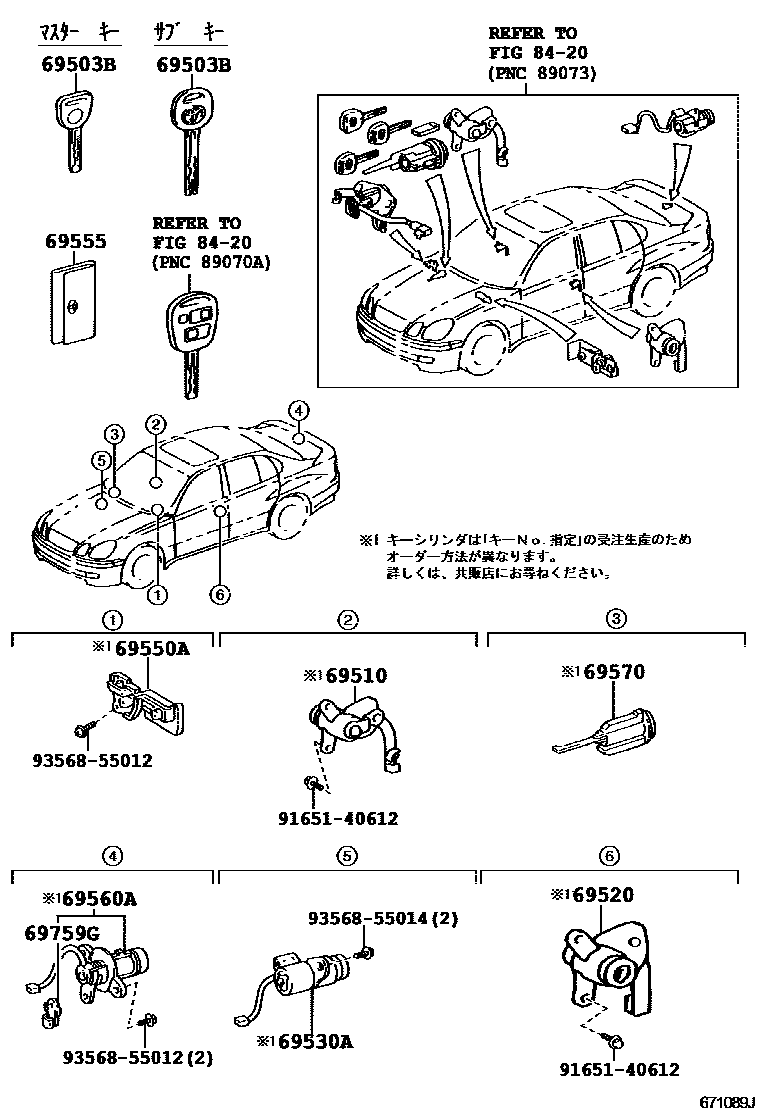

LOCK CYLINDER SET

69503BKEY, CUT

main69515-30220iJZS16#199708-200007

main69516-30120iJZS16#199708-200007

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30270iJZS16#199708-200501

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-30240iJZS16#199708-200501

69530ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR OPENER CANCEL

main69530-30020iJZS16#199708-200501

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30130iJZS16#199708-200501

69555COVER, KEY

main69555-30050iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30260iJZS16#200007-200501

main69560-30270iJZS16#199708-200007

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-30200iJZS16#199708-200501

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iJZS16#199708

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9165140612

main91651-40612

9356855012

main93568-55012

9356855014

main93568-55014

13 parts on this diagram · 1 diagram in section
