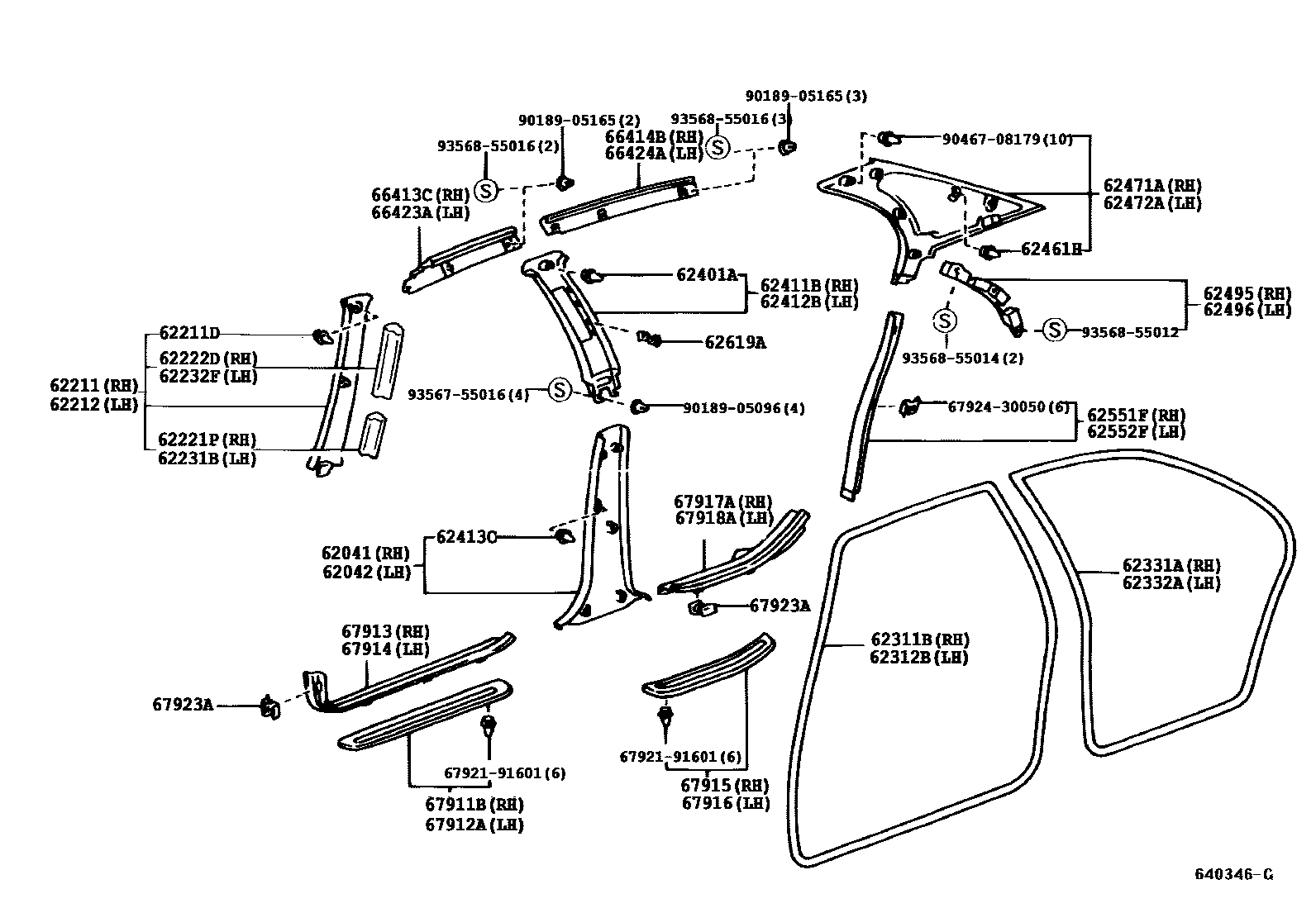

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH

main62413-30190-A0iJZS16#199708-200501

IVORY,TRIM0#

main62413-30190-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main62413-30190-C0iJZS16#200007-200501

BLACK,TRIM22,23

62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH

main62414-30120-A0iJZS16#199708-200501

IVORY,TRIM0#

main62414-30120-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main62414-30120-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

62211GARNISH, FRONT PILLAR, RH

main62211-30350-A0iJZS16#199708-200007

IVORY,TRIM0#

main62211-30350-B0iJZS16#199708-200007

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

main62211-30400-A0iJZS16#200007-200208

IVORY,TRIM0#

sub62211-30401

main62211-30400-B0iJZS16#200007-200208

MEDIUM CHACOAL,TRIM1#,22,23

sub62211-30401

main62211-30410-A0iJZS16#200208-200501

IVORY,TRIM0#

sub62211-30411

main62211-30410-B0iJZS16#200208-200501

MEDIUM CHACOAL,TRIM1#,22,23

sub62211-30411

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-08179×4iJZS16#199708-200007

main90467-09204×2iJZS16#200007-200501

62212GARNISH, FRONT PILLAR, LH

main62212-30360-A0iJZS16#199708-200007

IVORY,TRIM0#

main62212-30360-B0iJZS16#199708-200007

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

main62212-30410-A0iJZS16#200007-200208

IVORY,TRIM0#

sub62212-30411

main62212-30410-B0iJZS16#200007-200208

MEDIUM CHACOAL,TRIM1#,22,23

sub62212-30411

main62212-30420-A0iJZS16#200208-200501

IVORY,TRIM0#

sub62212-30421

main62212-30420-B0iJZS16#200208-200501

MEDIUM CHACOAL,TRIM1#,22,23

sub62212-30421

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-30080iJZS16#199708-200007

62222DSPACER, FRONT PILLAR, NO.2 RH

main62222-30080iJZS16#199708-200007

62231BSPACER, FRONT PILLAR, NO.1 LH

main62231-30010iJZS16#199708-200007

62232FSPACER, FRONT PILLAR, NO.2 LH

main62232-30010iJZS16#199708-200007

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-30210-A0iJZS16#199708-200202

IVORY,TRIM0#

main62311-30210-B0iJZS16#199708-200202

MEDIUM CHARCOAL,TRIM1#

main62311-30210-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main62311-30211-A0iJZS16#200202-200308

IVORY,TRIM0#

main62311-30211-B0iJZS16#200202-200308

MEDIUM CHACOAL,TRIM1#

main62311-30211-C0iJZS16#200202-200308

BLACK,TRIM22,23

main62311-30212-A0iJZS16#200308-200501

IVORY,TRIM0#

main62311-30212-B0iJZS16#200308-200501

MEDIUM CHACOAL,TRIM1#

main62311-30212-C0iJZS16#200308-200501

BLACK,TRIM22,23

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-30200-A0iJZS16#199708-200202

IVORY,TRIM0#

main62312-30200-B0iJZS16#199708-200202

MEDIUM CHARCOAL,TRIM1#

main62312-30200-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main62312-30201-A0iJZS16#200202-200308

IVORY,TRIM0#

main62312-30201-B0iJZS16#200202-200308

MEDIUM CHACOAL,TRIM1#

main62312-30201-C0iJZS16#200202-200308

BLACK,TRIM22,23

main62312-30202-A0iJZS16#200308-200501

IVORY,TRIM0#

main62312-30202-B0iJZS16#200308-200501

MEDIUM CHACOAL,TRIM1#

main62312-30202-C0iJZS16#200308-200501

BLACK,TRIM22,23

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-30140-A0iJZS16#199708-200308

IVORY,TRIM0#

main62331-30140-B0iJZS16#199708-200308

MEDIUM CHARCOAL,TRIM1#

main62331-30140-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main62331-30141-A0iJZS16#200308-200501

IVORY,TRIM0#

main62331-30141-B0iJZS16#200308-200501

MEDIUM CHACOAL,TRIM1#

main62331-30141-C0iJZS16#200308-200501

BLACK,TRIM22,23

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-30140-A0iJZS16#199708-200308

IVORY,TRIM0#

main62332-30140-B0iJZS16#199708-200308

MEDIUM CHARCOAL,TRIM1#

main62332-30140-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main62332-30141-A0iJZS16#200308-200501

IVORY,TRIM0#

main62332-30141-B0iJZS16#200308-200501

MEDIUM CHACOAL,TRIM1#

main62332-30141-C0iJZS16#200308-200501

BLACK,TRIM22,23

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main67771-89104×2iJZS16#200007

main90467-08179×2iJZS16#199708-200007

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30330-A0iJZS16#199708-200007

IVORY,TRIM0#

main62411-30330-B0iJZS16#199708-200007

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

main62411-30380-A0iJZS16#200007-200208

IVORY,TRIM0#

main62411-30380-B0iJZS16#200007-200208

MEDIUM CHACOAL,TRIM1#,22,23

main62411-30390-A0iJZS16#200208-200501

IVORY,TRIM0#

main62411-30390-B0iJZS16#200208-200501

MEDIUM CHACOAL,TRIM1#,22,23

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30330-A0iJZS16#199708-200007

IVORY,TRIM0#

main62412-30330-B0iJZS16#199708-200007

MEDIUM CHARCOAL,TRIM1#,22,23,24,25,26

main62412-30380-A0iJZS16#200007-200208

IVORY,TRIM0#

main62412-30380-B0iJZS16#200007-200208

MEDIUM CHACOAL,TRIM1#,22,23

main62412-30390-A0iJZS16#200208-200501

IVORY,TRIM0#

main62412-30390-B0iJZS16#200208-200501

MEDIUM CHACOAL,TRIM1#,22,23

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-08179×12iJZS16#199708

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10167×2iJZS16#199708-200501

62471AGARNISH, ROOF SIDE, INNER RH

main62470-30390-A0iJZS16#199708-200501

IVORY,TRIM0#

main62470-30390-B0iJZS16#199708-200501

MEDIUM CHARCOAL,TRIM1#,2#

62472AGARNISH, ROOF SIDE, INNER LH

main62480-30380-A0iJZS16#199708-200501

IVORY,TRIM0#

main62480-30380-B0iJZS16#199708-200501

MEDIUM CHARCOAL,TRIM1#,2#

62495SPACER, ROOF SIDE INNER GARNISH, RH

main62495-30020iJZS16#199708

62496SPACER, ROOF SIDE INNER GARNISH, LH

main62496-30020iJZS16#199708

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30200-A0iJZS16#199708-200501

IVORY,TRIM0#

main62551-30200-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main62551-30200-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30190-A0iJZS16#199708-200501

IVORY,TRIM0#

main62552-30190-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main62552-30190-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

62619APLATE, SIDE TRIM SET

main62619-30010×4iJZS16#199708

66413CSPACER, SIDE RAIL, FRONT RH

main66413-30010iJZS16#199708-200007

main66413-30030iJZS16#199708-200007

66414BSPACER, SIDE RAIL, REAR RH

main66414-30010iJZS16#199708-200007

main66414-30020iJZS16#199708-200007

main66414-30040iJZS16#200007

66423ASPACER, SIDE RAIL, FRONT LH

main66423-30010iJZS16#199708-200007

main66423-30030iJZS16#199708-200007

66424ASPACER, SIDE RAIL, REAR LH

main66424-30010iJZS16#199708-200007

main66424-30020iJZS16#199708-200007

main66424-30040iJZS16#200007

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30090iJZS16#199708

main67911-30150iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30100iJZS16#199708

main67912-30150iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30220-A0iJZS16#200309-200501

IVORY,TRIM0#

sub67913-30221

main67913-30220-B0iJZS16#200309-200501

MD.CHARCOAL,TRIM1#

sub67913-30221

main67913-30220-C0iJZS16#200007-200309

BLACK,TRIM22,23

sub67913-30221

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30220-A0iJZS16#200309-200501

IVORY,TRIM0#

sub67914-30221

main67914-30220-B0iJZS16#199708-200309

MD.CHARCOAL,TRIM1#

sub67914-30221

main67914-30220-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

sub67914-30221

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30080iJZS16#199708

main67915-30140iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30080iJZS16#199708

main67916-30130iJZS16#200107-200204

10TH ANNIVERSARY EDITION *(G)

67917APLATE, REAR DOOR SCUFF, RH

main67917-30170-A0iJZS16#200309-200501

IVORY,TRIM0#

sub67917-30171

main67917-30170-B0iJZS16#199708-200309

MD.CHARCOAL,TRIM1#

sub67917-30171

main67917-30170-C0iJZS16#200309-200501

BLACK,TRIM22,23

sub67917-30171

67918APLATE, REAR DOOR SCUFF, LH

main67918-30150-A0iJZS16#200309-200501

IVORY,TRIM0#

sub67918-30151

main67918-30150-B0iJZS16#200309-200501

MD.CHARCOAL,TRIM1#

sub67918-30151

main67918-30150-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

sub67918-30151

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30090×14iJZS16#199708-199909

main67924-30060×14iJZS16#199909

6792191601RETAINER, FRONT DOOR SCUFF PLATE

main67921-91601

6792430050CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-30050

9018905096

main90189-05096

9018905165

main90189-05165

9046708179

main90467-08179

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

47 parts on this diagram · 2 diagrams in section
