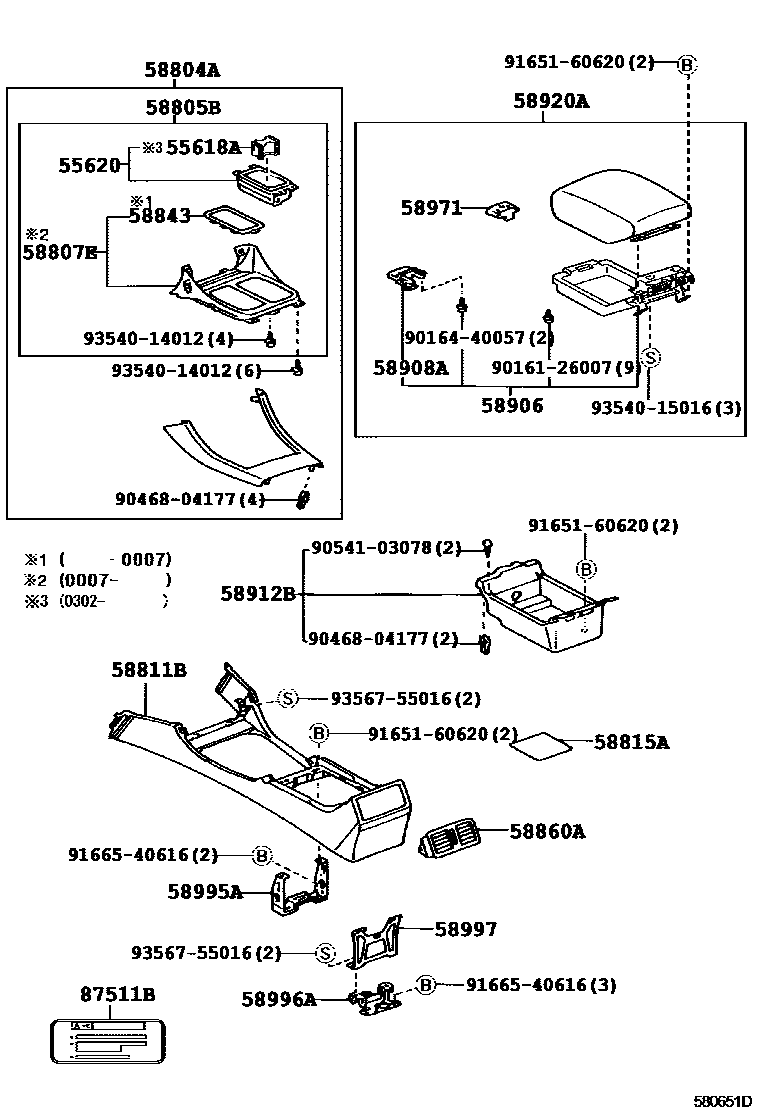

CONSOLE BOX & BRACKET
55618AHOLDER, CONSOLE BOX CUP
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
VERTEX EDITION
VERTEX EDITION
10TH ANNIVERSARY EDITION *(G)
58807EFRAME SUB-ASSY, SHIFTING HOLE
58811BBOX, CONSOLE
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
58815ACARPET, CONSOLE BOX
58843BEZEL, SHIFTING HOLE
58860AREGISTER ASSY, CONSOLE BOX
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM22,23
58906DOOR SUB-ASSY, UPPER CONSOLE
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BBOX, REAR CONSOLE, LOWER
58920AARMREST ASSY, REAR CONSOLE
IVORY,TRIM0#
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
BLACK,TRIM2#
58971LOCK, CONSOLE COMPARTMENT DOOR
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
BLACK,TRIM22,23,24,25,26
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
87511BPLATE, SEAT HEATER CAUTION
9016126007
main90161-26007
9016440057
main90164-40057
9046804177
main90468-04177
9054103078
main90541-03078
9165160620
main91651-60620
9166540616
main91665-40616
9354014012
main93540-14012
9354015016
main93540-15016
9356755016
main93567-55016
27 parts on this diagram · 1 diagram in section
