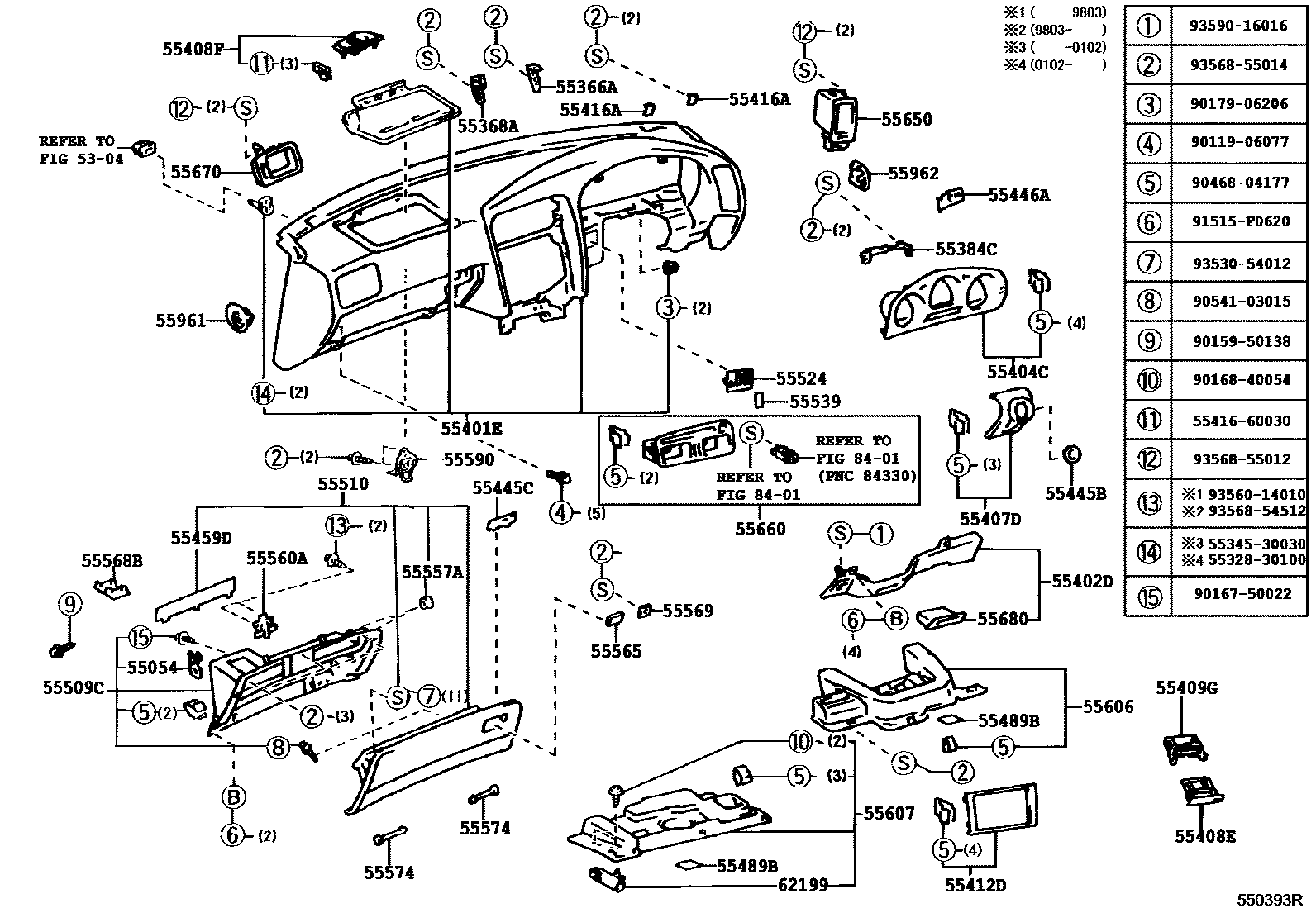

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5304

55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-30020iJZS16#199708

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-30230iJZS16#199708

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-30070iJZS16#199708

55384CBRACKET, FINISH PANEL MOUNTING, NO.4

main55384-30050iJZS16#199708

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30550-B0iJZS160199708-200005

main55401-30550-C0iJZS160199708-200005

main55401-30550-E0iJZS160199708-200005

main55401-30551-B0iJZS160200005-200007

main55401-30551-C0iJZS160200005-200007

main55401-30551-E0iJZS160200005-200007

main55401-30560-B0iJZS16#199708-200005

main55401-30560-C0iJZS161199708-200005

main55401-30560-E0iJZS16#199708-200005

main55401-30561-B0iJZS16#200005-200007

main55401-30561-C0iJZS161200005-200007

main55401-30561-E0iJZS16#200005-200007

main55401-30640-B0iJZS160200007-200501

main55401-30640-C0iJZS160200007-200501

main55401-30640-E0iJZS160200007-200501

main55401-30650-B0iJZS16#200007-200501

main55401-30650-C0iJZS16#200007-200501

main55401-30650-E0iJZS16#200007-200501

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-30140-A0iJZS16#199708-200501

IVORY,TRIM0#

main55402-30140-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main55402-30140-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-30800-B0iJZS16#199708-200007

DK.CHARCOAL,TRIM1#

main55404-30800-C0iJZS161199708-200007

BLACK,TRIM2#,23,24,25,26

main55404-30800-E0iJZS16#199708-200007

SANDAL WOOD,TRIM0#

main55404-30840iJZS16#200007

55407DPAD SUB-ASSY, INSTRUMENT PANEL, END

main55407-30080-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55407-30080-C0iJZS16#200007-200501

BLACK,TRIM22,23

main55407-30080-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN

main55408-50070-B1iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

sub55408-50080

main55408-50070-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

sub55408-50080

main55408-50070-E1iJZS16#199708-200501

SANDAL WOOD,TRIM0#

sub55408-50080

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30060-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55408-30060-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55408-30060-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55409GRETAINER SUB-ASSY, COIN BOX

main55409-50010iJZS16#199708

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-30480iJZS160199708

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iJZS16#199708

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-30160-B3iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55445-30160-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55445-30160-E2iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55445CPLATE, INSTRUMENT PANEL BOX

main55445-30210iJZS16#199708

55446ABASE, SWITCH HOLE, NO.1

main55446-30200-B0iJZS16#199708-200007

DK.CHARCOAL,TRIM1#

main55446-30200-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55446-30200-E0iJZS16#199708-200007

SANDAL WOOD,TRIM0#

main55446-30210-B0iJZS16#200007-200501

DK.CHARCOAL,TRIM1#

main55446-30210-C0iJZS16#200007-200501

BLACK,TRIM22,23

main55446-30210-E0iJZS16#200007-200501

SANDAL WOOD,TRIM0#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-50050iJZS16#199708

sub55459-30060

55489BLENS, FRONT FOOT LAMP, NO.2

main55489-50010iJZS16#199708

55509CPANEL SUB-ASSY, GLOVE COMPARTMENT

main55509-30030iJZS16#199708-200208

main55509-30040iJZS16#199708

main55509-30060iJZS16#200208

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-30170-A0iJZS16#199708-200501

IVORY,TRIM0#

main55501-30170-B0iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

main55501-30170-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

55524COVER, SWITCH BACE HOLE

main55524-30010-B0iJZS16#199708-200501

main55524-30010-C0iJZS161199708-200007

main55524-30010-E0iJZS16#199708-200501

main55524-30020-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55524-30020-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55524-30020-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55539COVER, SPARE SWITCH HOLE

main55539-20080-B3iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

sub55539-12130

sub55539-32010

main55539-20080-C0iJZS16#200007-200501

BLACK,TRIM22,23

sub55539-12130

sub55539-32010

main55539-20080-E1iJZS16#199708-200501

SANDAL WOOD,TRIM0#

sub55539-12130

sub55539-32010

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iJZS16#199708

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-30030iJZS16#199708-200501

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-22iJZS16#200007-200501

BLACK,TRIM22,23

main55565-50010-B4iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55565-50010-E3iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-24020iJZS16#199708

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-22iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55569-50010-B4iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55569-50010-E3iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iJZS16#199708

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-30020iJZS16#199708

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-30210iJZS16#199708

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30230iJZS16#199708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30230-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55650-30230-C0iJZS16#200007-200501

BLACK,TRIM22,23

main55650-30230-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30350-B0iJZS16#199708-200007

DK.CHARCOAL,TRIM1#

main55660-30350-C0iJZS161199708-200007

BLACK,TRIM2#,23,24,25,26

main55660-30350-E0iJZS16#199708-200007

SANDAL WOOD,TRIM0#

main55660-30380iJZS16#200007

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-30360-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55670-30360-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55670-30360-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-22020-A1iJZS16#199708-200501

IVORY,TRIM0#

sub55680-18010

sub55680-50020

main55680-22020-B3iJZS16#199708-200501

MD.CHARCOAL,TRIM1#

sub55680-18010

sub55680-50020

main55680-50010-C0iJZS16#200007-200501

BLACK,TRIM22,23

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30120-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55961-30120-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55961-30120-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30100-B0iJZS16#199708-200501

DK.CHARCOAL,TRIM1#

main55962-30100-C0iJZS16#199708-200007

BLACK,TRIM22,23,24,25,26

main55962-30100-E0iJZS16#199708-200501

SANDAL WOOD,TRIM0#

62199HOLDER, FUSEE

main62199-50010iJZS16#199708

8401

5532830100PIN, INSTRUMENT PANEL, NO.1

main55328-30100

5534530030GARNISH, GLOVE COMPARTMENT, UPPER

main55345-30030

5541660030STOPPER,LIGHT CONTROL SWITCH

main55416-60030

9011906077

main90119-06077

9015950138

main90159-50138

9016750022

main90167-50022

9016840054

main90168-40054

9017906206

main90179-06206

9046804177

main90468-04177

9054103015

main90541-03015

91515F0620

main91515-F0620

9353054012

main93530-54012

9356014010

main93560-14010

9356854512

main93568-54512

9356855012

main93568-55012

9356855014

main93568-55014

9359016016

main93590-16016

57 parts on this diagram · 2 diagrams in section
