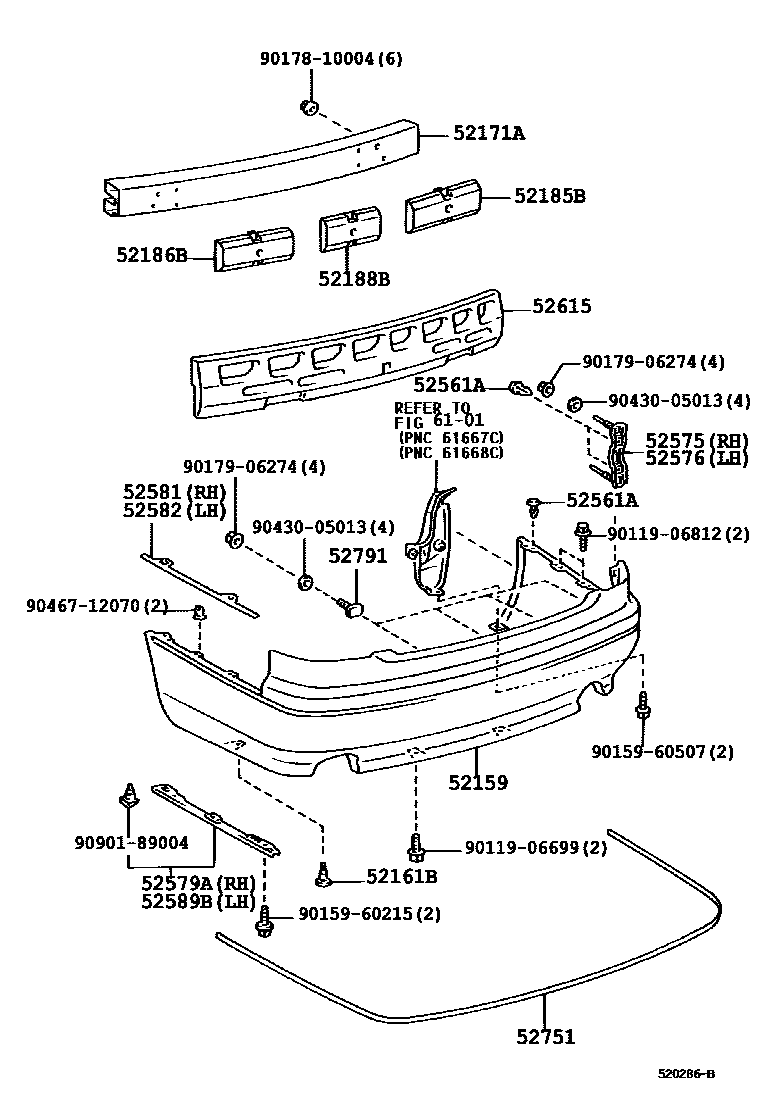

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SU.WHITE PM,051
WHITE PEARL CS.,TRIM02,14,22,23&062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
RED MC.,3N1
BORDEAUX MC.,TRIM02,14,22,23&3P2
DK. GREEN MC.,6Q7
DARK GREEN MC.,TRIM02,14,22,23&6S6
DK.BLUE MC.,8L4
BLUE MC.,8M6
DARK BLUE MC.,TRIM02,14,22,23&8P8
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52188BSPACER, REAR BUMPER MOUNTING
52561ACLIP(FOR REAR BUMPER RETAINER)
BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52579ARETAINER, REAR BUMPER SIDE, NO.3 RH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52589BRETAINER, REAR BUMPER SIDE, NO.3 LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
52791BOLT, BUMPER MOULDING SET, NO.1
6101
9011906699
main90119-06699
9011906812
main90119-06812
9015960215
main90159-60215
9015960507
main90159-60507
9017810004
main90178-10004
9017906274
main90179-06274
9043005013
main90430-05013
9046712070
main90467-12070
9090189004
main90901-89004
26 parts on this diagram · 1 diagram in section
