FRONT BUMPER & BUMPER STAY

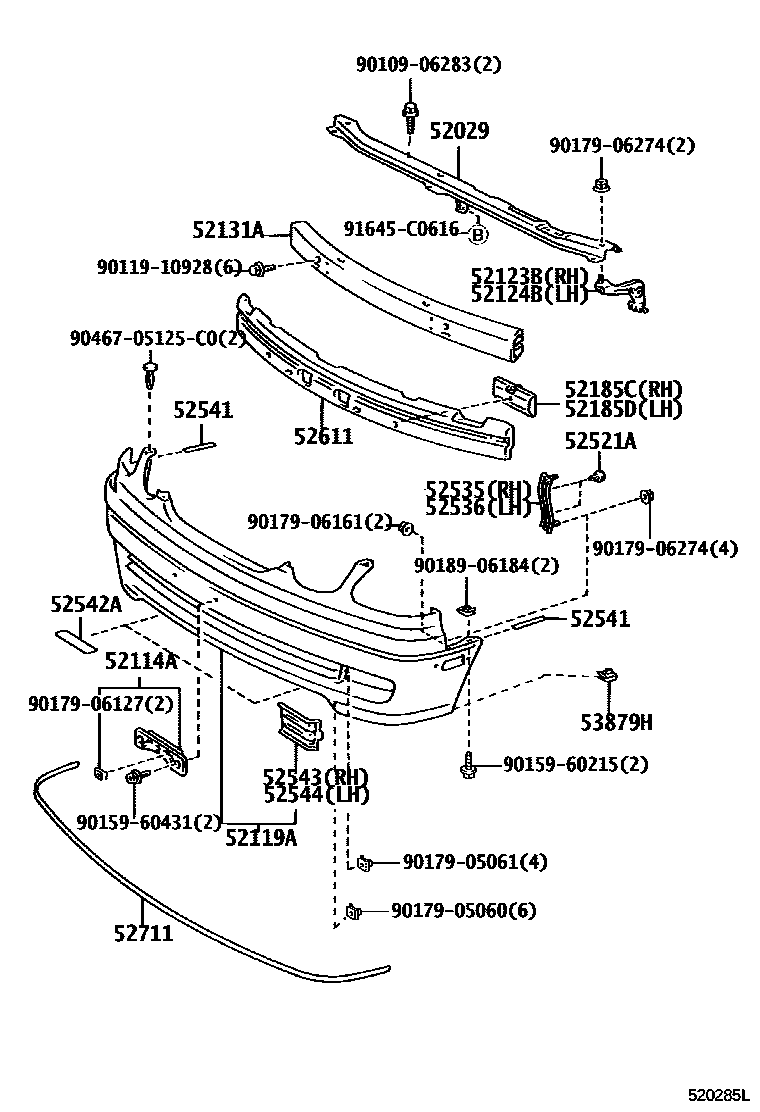

Parts diagram
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
main52029-30140i199708
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-30090i199708-200007
sub52114-30901
sub90179-06127
52119ACOVER, FRONT BUMPER
main52119-30370-A0i199708-199908
SU.WHITE PM,051
sub52119-30938
main52119-30370-A1i199908-200007
WHITE PEARL CS.,062
sub52119-30938
main52119-30370-B0i199708-199908
SILVER ME,199
sub52119-30938
main52119-30370-B1i199908-200501
SILVER ME.,1C0
sub52119-30938
main52119-30370-C0i199708-200501
BLACK,202
sub52119-30938
main52119-30370-D0i199708-200208
RED MC.,3N1
sub52119-30938
main52119-30370-D1i200007-200501
BORDEAUX MC.,3P2
sub52119-30938
main52119-30370-E0i199901-200005
sub52119-30938
main52119-30370-G0i199708-200007
DK. GREEN MC.,6Q7
sub52119-30938
main52119-30370-G1i200007-200501
DARK GREEN MC.,6S6
sub52119-30938
main52119-30370-J0i199708-200007
DK.BLUE MC.,8L4
sub52119-30938
main52119-30370-J1i199808-200007
BLUE MC.,TRIM0#,1#,23,24,25,26&8M6
sub52119-30938
main52119-30370-J2i200007-200501
DARK BLUE MC.,8P8
sub52119-30938
main52119-30420-A0i199708-199908
SU.WHITE PM,051
sub52119-30972
main52119-30420-A1i199908-200501
WHITE PEARL CS.,062
sub52119-30972
main52119-30420-B0i199708-199908
SILVER ME,199
sub52119-30972
main52119-30420-B1i199908-200501
SILVER ME.,1C0
sub52119-30972
main52119-30420-C0i199708-200501
BLACK,202
sub52119-30972
main52119-30420-D0i199708-200208
RED MC.,3N1
sub52119-30972
main52119-30420-D1i200007-200501
BORDEAUX MC.,3P2
sub52119-30972
main52119-30420-G0i199708-200007
DK. GREEN MC.,6Q7
sub52119-30972
main52119-30420-G1i199708-200501
DARK GREEN MC.,6S6
sub52119-30972
main52119-30420-J0i199708-200007
DK.BLUE MC.,8L4
sub52119-30972
main52119-30420-J1i199808-200007
BLUE MC.,8M6
sub52119-30972
main52119-30420-J2i200007-200501
DARK BLUE MC.,8P8
sub52119-30972
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
main52123-30110i199708-199810
main52123-30120i199810-200501
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
main52124-30100i199708-199810
main52124-30120i199810-200501
52131AREINFORCEMENT, FRONT BUMPER
main52131-30210i199708-200501
52185CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
main52185-30090i199708-200308
main52185-30091i200308-200501
52185DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
main52185-30090i199708-200308
main52185-30091i200308-200501
52521ACLIP(FOR FRONT BUMPER RETAINER)
main90467-06015-C0×4i199808-199908
BLACK,051 ,199 ,202 ,3N1 ,6Q7 ,8L4 ,8M6
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-30160i199708-200501
52536RETAINER, FRONT BUMPER SIDE, LH
main52536-30150i199708-200501
52541PROTECTOR, FRONT BUMPER
main52541-30070×2i199708-200501
52542APROTECTOR, FRONT BUMPER, NO.2
main52542-30010×2i199708-199902
52543SEAL, FRONT BUMPER SIDE, RH
main52543-30090i199708-200501
52544SEAL, FRONT BUMPER SIDE, LH
main52544-30050i199708-200501
52611ABSORBER, FRONT BUMPER ENERGY
main52611-30230i199708-200501
52711MOULDING, FRONT BUMPER
main52711-30200i199708-200501
sub52751-30110
53879HRETAINER, FRONT FENDER LINER
main53879-17020×4i199708-200501
9010906283
main90109-06283
9011910928
main90119-10928
9015960215
main90159-60215
9015960431
main90159-60431
9017905060
main90179-05060
9017905061
main90179-05061
9017906127
main90179-06127
9017906161
main90179-06161
9017906274
main90179-06274
9018906184
main90189-06184
9046705125C0
main90467-05125C0
91645C0616
main91645-C0616

30 parts on this diagram · 1 diagram in section
