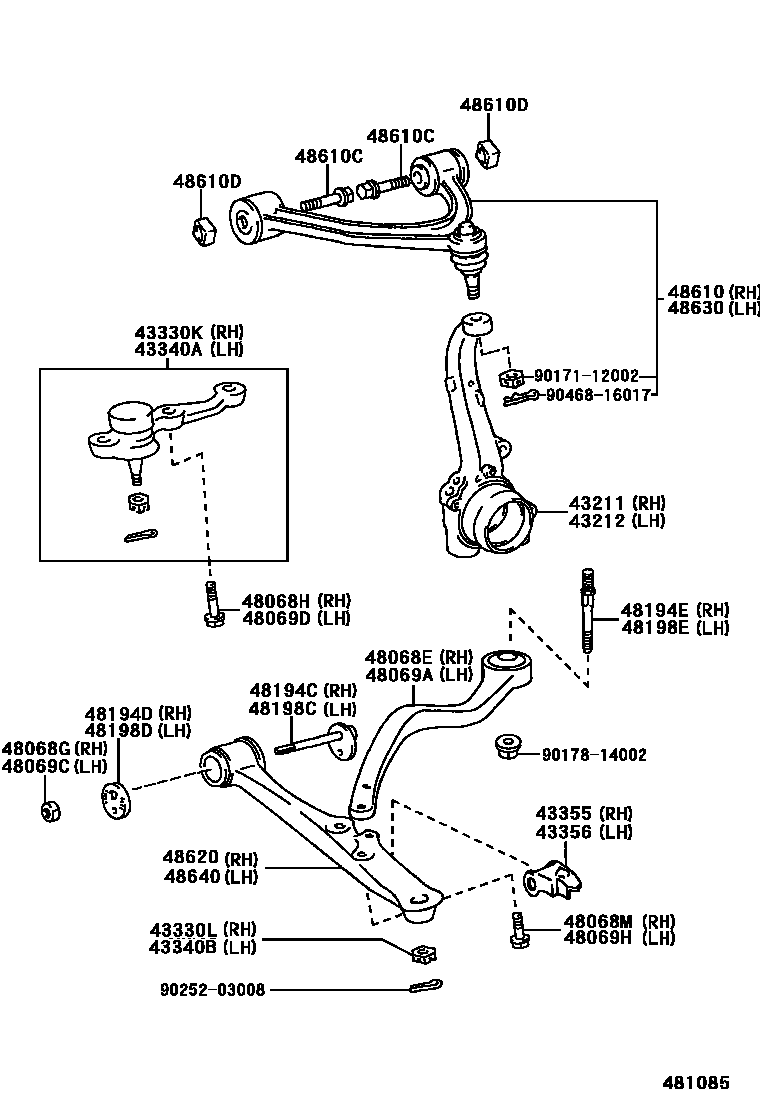

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43355DEFLECTOR, LOWER ARM ICE, RH
43356DEFLECTOR, LOWER ARM ICE, LH
48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
10TH ANNIVERSARY EDITION *(G)
48610CBOLT(FOR SUSPENSION UPPER ARM)
48610DNUT(FOR SUSPENSION UPPER ARM)
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
10TH ANNIVERSARY EDITION *(G)
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
9017112002
main90171-12002
9017814002
main90178-14002
9025203008
main90252-03008
9046816017
main90468-16017
32 parts on this diagram · 2 diagrams in section
