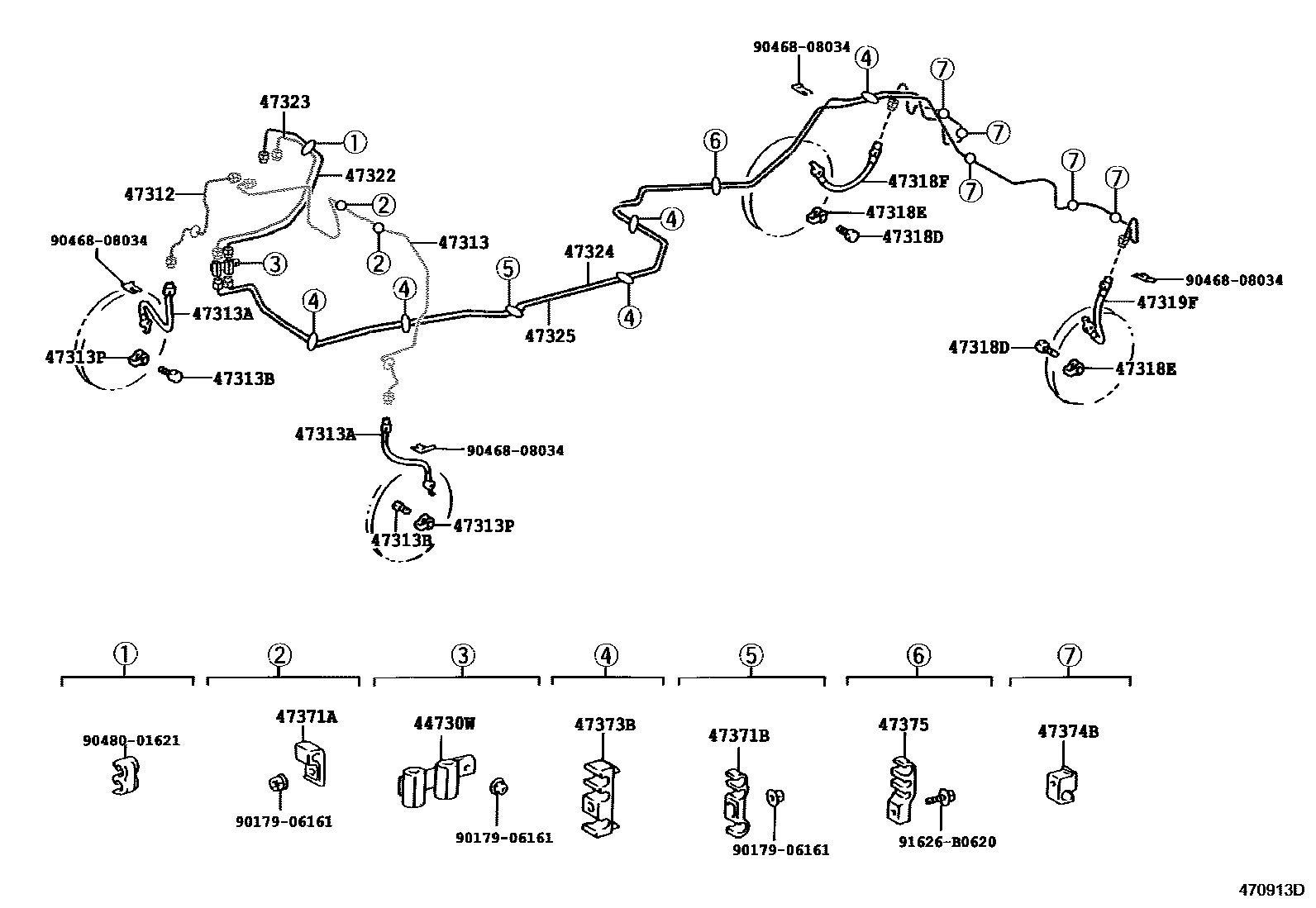

BRAKE TUBE & CLAMP

44730WWAY, 2(FOR FRONT BRAKE TUBE)

main90412-10158iJZS16#199708

47312TUBE, FRONT BRAKE, NO.2

main47312-30470iJZS16#199708-199908

main47312-30510iJZS16#199908

47313TUBE, FRONT BRAKE, NO.3

main47313-30430iJZS16#199708-199908

main47313-30460iJZS16#199908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02972×2iJZS16#199708

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iJZS16#199708

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iJZS16#199708

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iJZS16#199708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iJZS16#199708

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02973iJZS16#199708

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02973iJZS16#199708

47322TUBE, REAR BRAKE, NO.2

main47322-30260iJZS16#199708-199908

main47322-30290iJZS16#199908

47323TUBE, REAR BRAKE, NO.3

main47323-30220iJZS16#199708-199908

main47323-30250iJZS16#199908

47324TUBE, REAR BRAKE, NO.4

main47324-30260iJZS16#199708-199908

main47324-30280iJZS16#199908

47325TUBE, REAR BRAKE, NO.5

main47325-30050iJZS16#199708-199908

main47325-30070iJZS16#199908

47371ACLAMP, BRAKE TUBE, NO.1

main47371-30480×2iJZS16#199708

47371BCLAMP, BRAKE TUBE, NO.6

main47371-30520iJZS16#199708

47373BCLAMP, BRAKE TUBE, NO.3

main47371-30460×5iJZS16#199708

47374BCLAMP, BRAKE TUBE, NO.4

main47371-30470×5iJZS16#199708

47375CLAMP, BRAKE TUBE, NO.5

main47371-30510iJZS16#199708

9017906161

main90179-06161

9046808034

main90468-08034

9048001621

main90480-01621

91626B0620

main91626-B0620

23 parts on this diagram · 1 diagram in section
